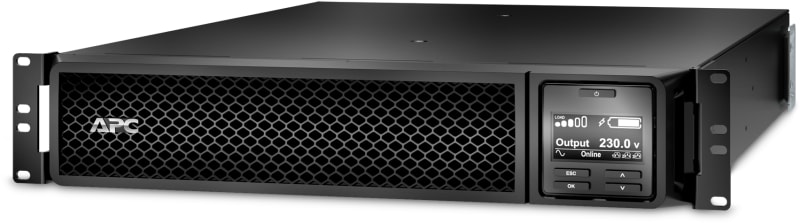

Schneider Electric APC Smart-UPS On-Line, 3KVA, Rackmount 2U, 230V, 8X C13+2X C19 IEC outlets, SmartSlot, Extended runtime, W/ rail kit SRT3000RMXLI
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SRT3000RMXLI APC -UPS SRT 3kVA, Rack 2U, 230V, out: 8x C13 2x C19, expandable, rail kit.
Technical Specifications
- Manufacturer part number (MPN)
- SRT3000RMXLI
- EAN / GTIN
- 0731304317647
- Sales unit
- pcs
- Voltage
- 230 V
- Rack units
- 2 U
- Presentation
- High density, double-conversion on-line power protection with scalable runtime.
- Main input voltage
- 230 V AC 1 phase
- Other input voltage
- 220 V; 240 V
- Input connection
- BS1363A British; IEC 60320 C20; Schuko CEE 7 / EU1-16P
- Efficiency at full load
- 100...275 V adjustable (half load)
- Input frequency
- 40...70 Hz auto-sensing
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 2700 W
- Rated power in VA
- 3000 VA
- Output connection
- 8 IEC 60320 C13; 2 IEC Jumpers; 2 IEC 60320 C19
- Bypass type
- Internal bypass (automatic and manual)
- Crest factor
- 3 : 1
- Harmonic distortion
- Less than 2 %
- Maximum configurable power in VA
- 3000 VA
- Maximum configurable power in W
- 2700 W
- UPS topology
- On-Line
- Waveform type
- Its wave
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Replacement battery
- APCRBC152
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Additional information
- Configurable for 220 : 230 or 240 nominal output voltage
- Battery type
- Lead-acid internal included
- Emergency power off
- Yes
- Free slot
- 1
- Alarm
- Audible and visible alarms : prioritized by severity
- UPS connectivity
- Serial port; USB port
- Surge energy rating
- 340 J
- Number of rack unit
- 2U
- Cable length
- 2.4 m
- Number of cables
- 1
- Color
- Black
- Height
- 85 mm
- Width
- 432 mm
- Depth
- 635 mm
- Product weight
- 31.3 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted
- Two post mountable
- 0
- USB compatible
- Yes
- Mounting position
- Horizontal
- Provided equipment
- CD with software; Documentation CD; Installation guide; Rack mounting brackets; Rack mounting support rails; USB cable; Warranty card
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Additional specification
- High density
- Redundant
- No
- Range of product
- Smart-UPS On-Line
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; EAC; RCM; VDE; UK PSTI
- Marking
- CE Mark
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 55 dBA
- Heat dissipation
- 703 Btu/h
- Operating altitude
- 0...10000 ft
- Battery voltage
- 96 V
- Extendable runtime
- 1
- Included battery module
- 1
- Typical recharge time
- 3 h
- RBC quantity
- 1
- Battery life
- 3…5 year(s)
- Battery charging power
- 168 W rated
- Number of Units in Package 1
- 1
- Country of origin
- PH
- Warranty (in months)
- 36 UPS|24 Battery
