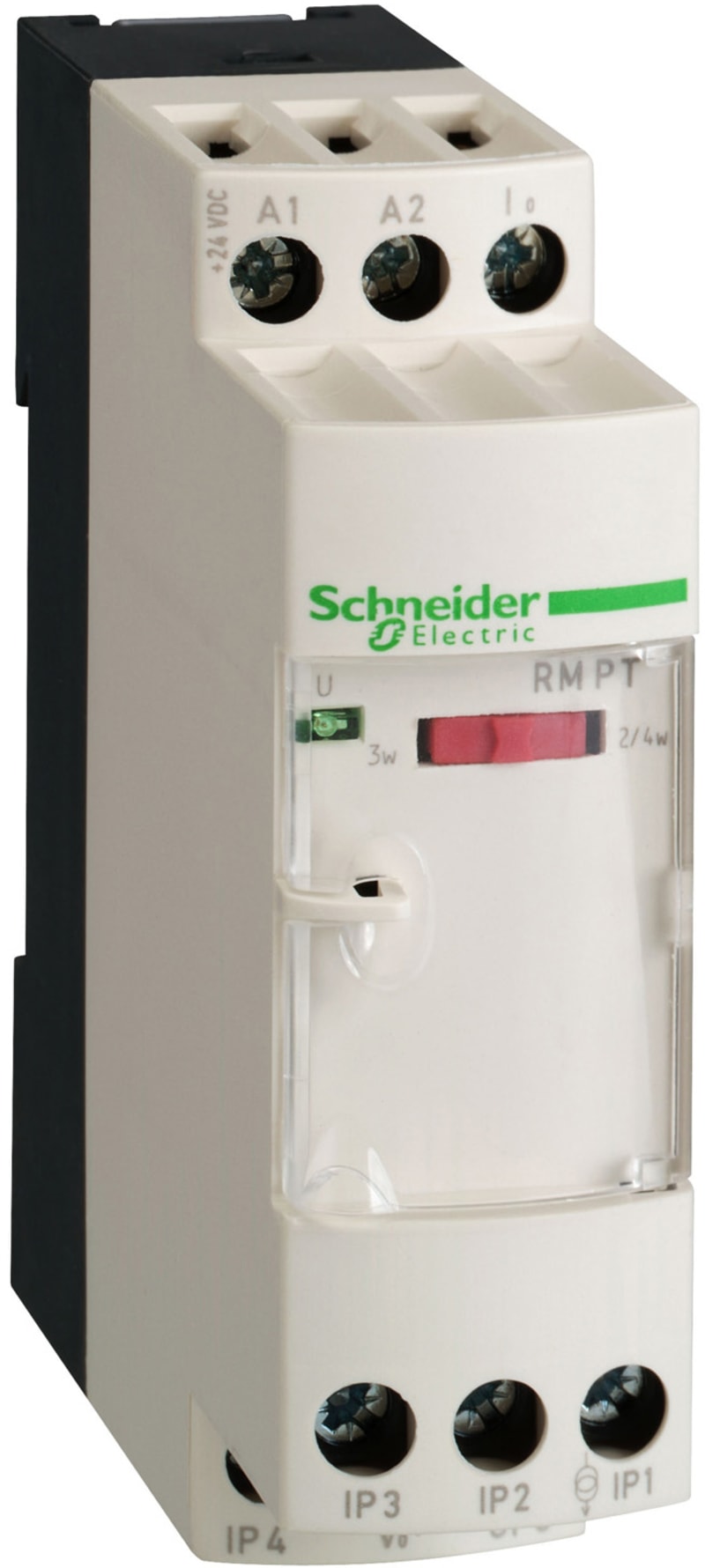

PT-100 converter 0...+100°C (RMPT30BD)

Schneider Electric RMPT30BD PT-100 converter 0.+100ºC.

Manufacturer part number (MPN)

RMPT30BD

EAN / GTIN

3389110108965

Sales unit

pcs

Package quantity

47 pcs

Range of product

Harmony Analog

Product or component type

Converter for Universal Pt100 probes

Analogue input type

RTD 0...100 °C/32..212 °F Pt 100 2, 3 or 4 wires

Analogue output type

Current 0...20 mA; Current 4...20 mA; Voltage 0...10 V

Protection type

Reverse polarity protection on power supply; Short-circuit protection on output; Overvoltage protection on output (+/- 30 V); Reverse polarity protection on output

abnormal analogue output voltage

-15...-11 V when no input or input wire broken; 11...15 V when no input or input wire broken

abnormal analogue output current

-30…0 mA when no input or input wire broken; 22…30 mA when no input or input wire broken

Current consumption

<= 40 mA for voltage output; <= 60 mA for current output

Local signalling

LED (green) for power ON

Clamping connection capacity

1 x 2.5 mm²; 2 x 1.5 mm²

Tightening torque

0.6…1.1 N.m

Marking

CE

Surge withstand

0.5 kV during 1.2/50 µs conforming to IEC 61000-4-5

[Ui] rated insulation voltage

2000 V

Fixing mode

Clip-on (35 mm symmetrical DIN rail); Fixed (mounting plate)

Safety reliability data

MTTFd = 32.9 years; B10d = 30437

Product weight

0.12 kg

Temperature coefficient

150 ppm/°C

Measurement error

+/- 0.5 % of full scale (3 or 4 wires) at 20 °C (temporary performance degradation when subject to electromagnetic interference); +/- 1 % of full scale (2 wires) at 20 °C (temporary performance degradation when subject to electromagnetic interference)

Repeat accuracy

+/- 0.2 % full scale at 20 °C; +/- 0.6 % full scale at 60 °C

Electromagnetic compatibility

Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2; Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2

Standards

DIN 43760; IEC 60751; IEC 60947-1; IEC 60584-1

Product certifications

GL; UL; CSA

IP degree of protection

IP20 (terminal block); IP50 (housing)

Fire resistance

850 °C conforming to IEC 60695-2-1; 850 °C conforming to UL

Shock resistance

50 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

5 gn (f= 10…100 Hz) conforming to IEC 60068-2-6

Resistance to fast transients

1 kV (on input-output) conforming to IEC 61000-4-4; 2 kV (on power supply) conforming to IEC 61000-4-4

Disturbance radiated/conducted

CISPR 22 group 1 - class B; CISPR 11

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

0…50 °C mounting side by side; 0…60 °C 2 cm spacing

Pollution degree

2 conforming to IEC 60664-1

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.700 cm

Package 1 Width

8.200 cm

Package 1 Length

8.500 cm

Package 1 Weight

108.000 g

Unit Type of Package 2

P06

Number of Units in Package 2

752

Package 2 Height

75.000 cm

Package 2 Width

60.000 cm

Package 2 Length

80.000 cm

Package 2 Weight

98.000 kg

Country of origin

ID

Warranty (in months)

18

Type of power supply

Active

Number of input ranges 0 V ... 10 V

1

Number of input ranges 0 mA ... 20 mA

1

Number of input ranges 4 mA ... 20 mA

1

Number of output ranges 0 V ... 10 V

1

Number of output ranges 0 mA ... 20 mA

1

Number of output ranges 4 mA ... 20 mA

1

Switching voltage

24 V

Switching current

0.004 A

Switching power

1.4 VA

Number of channels

1

SIL according to IEC 61508

None

Height

78 mm

Width

25 mm

Depth

80 mm

Power consumption

1.44 W

Load influence

0 %

Temperature drift

0 %/K

Type of electric connection

Screw connection

Mounting method

Snap mounting support rail

Degree of protection (IP)

IP20

HS Code

8543.70
