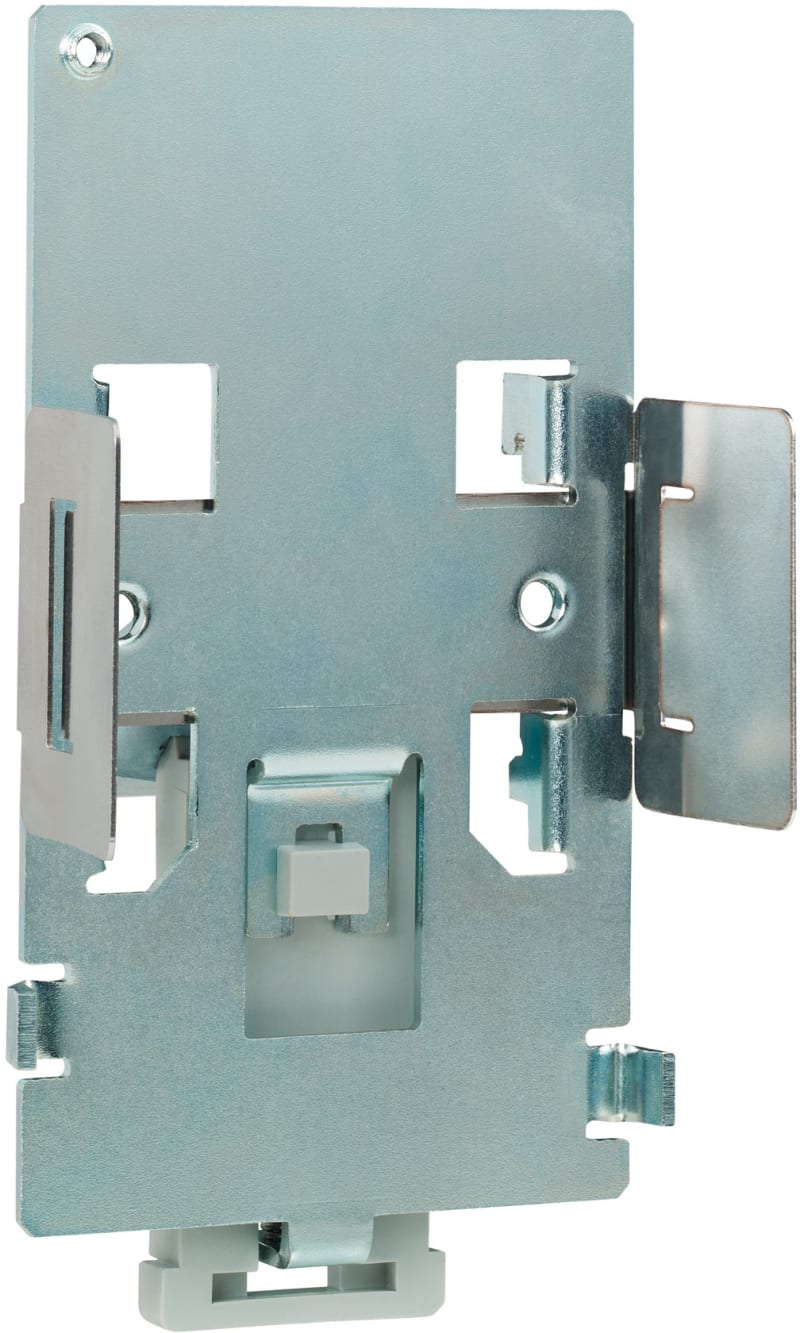

Mounting plate for rail. size. 1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A9804 mounting plate for rail, size 1.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A9804 EAN / GTIN: 3606480074851 Sales unit: pcs Package quantity: 50 pcs Range of product: Altivar Accessory / separate part category: Mounting and fixing accessories Accessory / separate part type: Mounting plate Product compatibility: ATV12H018F1; ATV12H018M2; ATV12H018M3; ATV12H037F1; ATV12H037M2; ATV12H037M3; ATV12H055M2; ATV12H075M2; ATV12H075M3; ATV12HU15M2; ATV312H018M2; ATV312H018M3; ATV312H037M2; ATV312H037M3; ATV312H055M2; ATV312H075M2; ATV312H075M3; Variable speed drive ATV320...C at 0.18 kW, 200...240 V, single phase; Variable speed drive ATV320...C at 0.37 kW, 200...240 V, single phase; Variable speed drive ATV320...C at 0.55 kW, 200...240 V, single phase; Variable speed drive ATV320...C at 0.75 kW, 200...240 V, single phase Accessory / separate part destination: Variable speed drive Range compatibility: Altivar 312 Solar; Altivar 12; Altivar 312; Altivar Machine ATV320 Mounting support: 35 mm symmetrical DIN rail Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 7.100 cm Package 1 Width: 17.000 cm Package 1 Length: 23.000 cm Package 1 Weight: 316.000 g Unit Type of Package 2: S06 Number of Units in Package 2: 50 Package 2 Height: 75.000 cm Package 2 Width: 60.000 cm Package 2 Length: 80.000 cm Package 2 Weight: 30.000 kg Country of origin: JP Warranty (in months): 18 material: Metal Type of fastening: DIN rail (top hat rail) 35 mm Type of DIN-rail adaptor: Straight
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480074851
- SAP 1000260621
- Code 8175914
Product Documentation
More from Schneider Electric
Schneider Electric
Fan for ATV600/900 7,5-22kW
VX5VPS3001
Schneider Electric
Linear Heat-Detection Cable HDC68, 100 m
FFS06435138
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 C120N, 2P, 63A, B curve, 10000A (IEC/EN 60898-1), 10KA (IEC/EN 60947-2) A9N18344
Schneider Electric
Schneider Electric variable speed drive ATV630 - 130kW - 380...480V - IP00 ATV630C13N4
Schneider Electric
Screw (AF1VA410)
Schneider Electric
Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 IC60, 2P, 20A, C curve, 10000A/15KA, A-SI type, 30MA A9D27220
Schneider Electric
Schneider Electric RESI9 - comb busbar - 3L+N balanced - 18 mm pitch - 57 modules - 63 A R9XFH557
Schneider Electric
Schneider Electric energy sensor, PowerTag Monoconnect 63A 3P top and bottom position A9MEM1540
Technical guides
Catalogue entry last verified: 2026-10-02. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy VW3A9804?
- VW3A9804 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is VW3A9804.
- What is the HS code for VW3A9804?
- The customs tariff (HS) code for VW3A9804 is 8538.10.
- Who manufactures VW3A9804?
- VW3A9804 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for VW3A9804?
- Yes — the VW3A9804 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for VW3A9804?
- The minimum order quantity is 1.
- Is VW3A9804 available?
- Yes — VW3A9804 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
