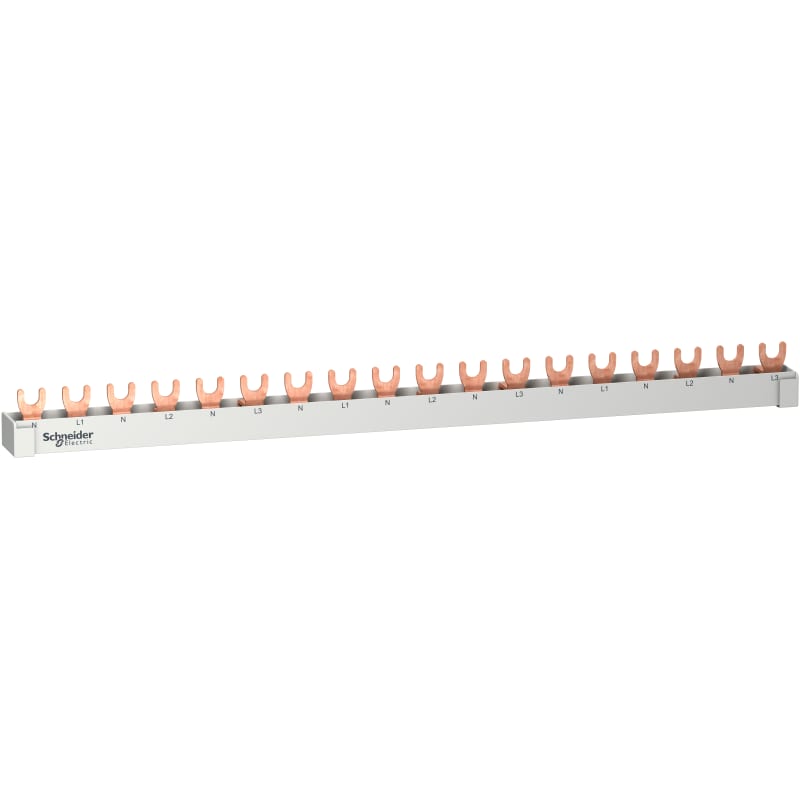

Schneider Electric RESI9 - comb busbar - 3L+N balanced - 18 mm pitch - 57 modules - 63 A R9XFH557
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric R9XFH557 Resi9 gaffel busbar for iC60 RCBO - 4 pole - NL1NL2NL3… - 63A - 57 modules.
Technical Specifications
- Manufacturer part number (MPN)
- R9XFH557
- EAN / GTIN
- 3606480515996
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Range
- Resi9
- Product or component type
- Comb busbar
- mounting mode
- Horizontal
- Accessory / separate part category
- Connection accessory
- Lines description
- 3L + N
- Length in 18 mm modules
- 57
- Standards
- EN/IEC 61439-1
- Product certifications
- CE
- Number of ways
- 28 ways N + L
- Distribution type
- N L
- Poles configuration for 1 way
- 1 x 1P + N; 1 x 2P
- Connection pitch
- 18 mm
- Connector type
- Fork
- Distance between way
- 36 mm
- Marking
- N L1 N L2 N L3
- Insulation
- Insulated
- Device presentation
- Cuttable
- [Ie] rated operational current
- 63 A at 40 °C
- [Ue] rated operational voltage
- 230 V AC Ph/N
- [Ui] rated insulation voltage
- 500 V AC
- Mounting location
- Bottom on biconnect
- 9 mm pitches
- 114
- Width
- 1000 mm
- Colour
- White (RAL 9003)
- Range compatibility
- Acti9 K60; Resi9 miniature circuit-breaker; Resi9 residual current breaker with overcurrent protection (RCBO); Resi9 residual current circuit breaker (RCCB); Resi9 switch
- Fire resistance
- 960 °C ( 30 s ) conforming to IEC 60695-2-1
- Pollution degree
- 3
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 180
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480515996
- SAP 1000758567
- Code 8518678
