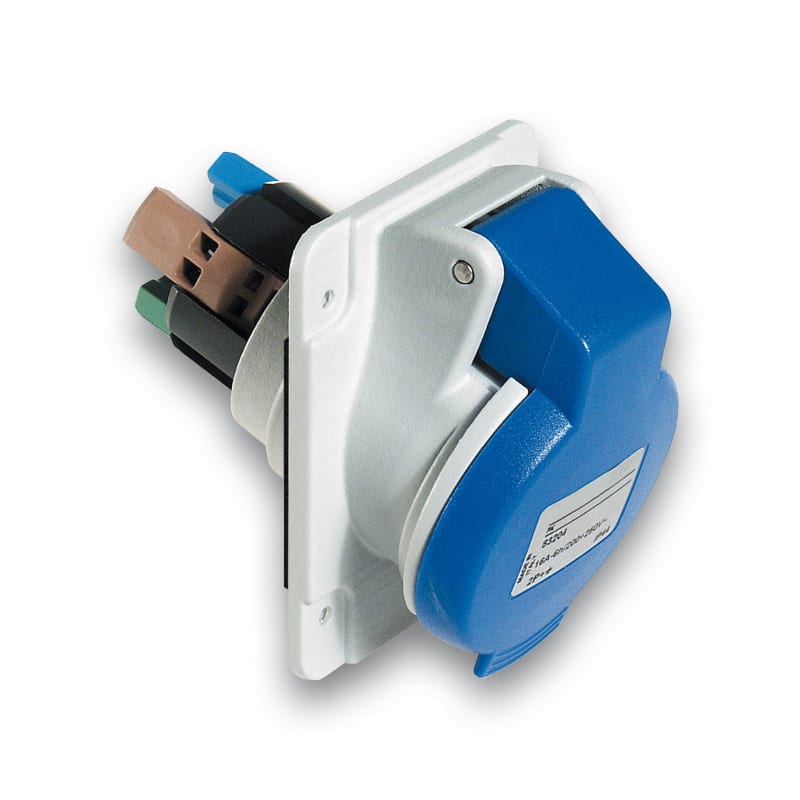

Schneider Electric Socket, Mureva PK, panel-mounted, fast connection, 16A, 3P+E, 220V, IP44 PKY16F424
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric PKY16F424 PratiKa socket outlet - fast - angled - 16 A - 3P + E - 200.250 V AC - panel.
Technical Specifications
- Manufacturer part number (MPN)
- PKY16F424
- EAN / GTIN
- 3303432010874
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 230 V
- Rated current
- 16 A
- Range
- Mureva
- Product or component type
- Socket
- Device short name
- Mureva socket
- Plug, socket category
- Low voltage
- Poles description
- 3P + E
- Network type
- AC
- Outlet standard
- Industrial
- mounting mode
- Panel-mounted
- Plug, socket, control station shape
- Angled
- [In] rated current
- 16 A
- [Ue] rated operational voltage
- 200...250 V
- Network frequency
- 50/60 Hz
- Ground lug clockwise position
- 9 h
- Plug, socket material
- Housing: self-extinguishing engineering polymer
- Contacts material
- Sleeves: brass
- Connections - terminals
- Fast connection
- Cable cross section
- 1…2.5 mm²
- Product weight
- 0.167 kg
- Base dimension
- 65 x 85 mm
- Height
- 85 mm
- Width
- 65 mm
- Depth
- 105 mm
- Colour
- Grey (RAL 7035)
- Voltage colour
- Blue
- Standards
- IEC 60309-1; IEC 60309-2
- IP degree of protection
- IP44 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to EN 62262
- Fire resistance
- 850 °C conforming to IEC 60695-2-1
- Relative humidity
- 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C
- Ambient air temperature for operation
- 35 °C ( 86400 s )
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3303432010874
- SAP 1200199240
- Code 82174932
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Regulated Power Supply, 100-240V AC, 24V 5 A, single phase, Optimized ABLS1A24050
Schneider Electric
Schneider Electric Wall mounted/floor standing enclosure, PrismaSeT G, W 600mm, H 1450mm (27M), IP55, without plinth LVS08307
Schneider Electric
Door IP30 PrismaSeT P width 300mm
LVS08513
Schneider Electric
Schneider Electric PanelSet S3X stainless 316L, Scotch Brite® finish, H700XW500XD250 mm. NSYS3X7525H
Schneider Electric
Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 IC60, 2P, 32A, C curve, 10000A/15KA, A type, 300MA A9D54232
Schneider Electric
Schneider Electric TransferPacT Active Automatic, 100A, 230V, 3P, LCD, frame 250A TA25D3L1002TPE
Schneider Electric
Sounder with LED red 230VAC
XB5KS2M4
Schneider Electric

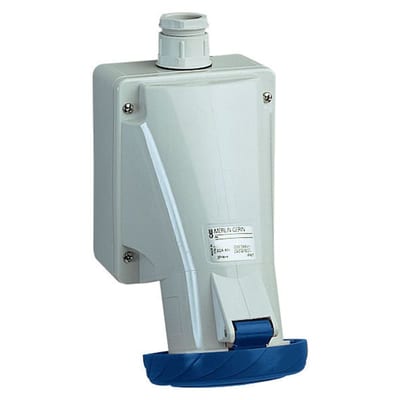

PratiKa Wall-Mounted Socket Outlet, Large, 16 A 2P+E 230 V (83154)
