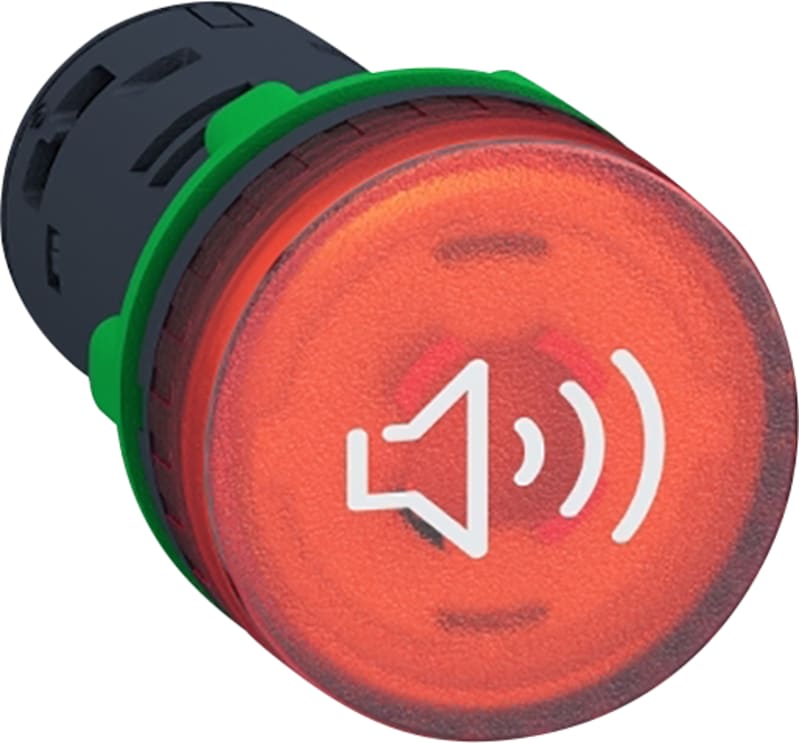

Sounder with LED red 230VAC

Schneider Electric XB5KS2M4 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Sounder with red LED and either constant or bibbende tone 230VAC.

Manufacturer part number (MPN)

XB5KS2M4

EAN / GTIN

3606481352453

Sales unit

pcs

Package quantity

88 pcs

Voltage

230 V AC

Range of product

Harmony XB5

Product or component type

Annunciator

Bezel material

Plastic

Mounting diameter

22 mm

Cap/operator or lens colour

Red

Supply circuit type

AC

Supply frequency

50/60 Hz

Signalling type

Continuous or intermittent tone

Noise level

90 dB 6.8 kHz 0.1 m +/- 10 %

Resistance to high pressure washer

9000000 Pa at 80 °C, distance : 0.1 m

Height

29 mm

Width

29 mm

Depth

55 mm

Product weight

0.024 kg

Current consumption

<= 35 mA

[Us] rated supply voltage

230...240 V +/- 10 %

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

Enclosure Type

UL type 4X/13

Standards

CSA C22.2 No 14; IEC 60947-1; UL 508; IEC 60947-5-1; IEC 60947-5-4; JIS C8201-5-1; JIS C8201-1; IEC 60529; IEC 62262; IEC 50102

Product certifications

UL listed; CSA; BV

Number of Units in Package 1

1

Number of Units in Package 2

34

Number of Units in Package 3

3200

Country of origin

ID

Warranty (in months)

18

Loudness

90 dB

Voltage type

AC

Type of acoustic signal

Pulse tone/continuous tone

Degree of protection (NEMA)

4X, 13

HS Code

8531.80

• EAN 3606481352453
• SAP 1200083230
• Code 81947709
