Schneider Electric Wall mounted/floor standing enclosure, PrismaSeT G, W 600mm, H 1450mm (27M), IP55, without plinth LVS08307
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08307 Wall/floor-standing cabinet PrismaSeT G-630A-IP55 27 modules-width 600mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08307
- EAN / GTIN
- 3606481876553
- Sales unit
- pcs
- IP rating
- IP55
- Modular width
- 27 modules
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Enclosure
- Device application
- Low voltage electrical distribution
- Enclosure type
- Functional enclosure delivered in kit form; Weatherproof enclosure; Metal enclosure; Indoor enclosure
- Enclosure/cubicle description
- Floor-standing enclosure - width 600 mm
- Kit composition
- uprights; rear plate; 2 side panel; top plate; bottom plate; 4 mouting bracket
- Additional information
- Can be combined side by side and one on top of another
- type of front plate
- Without to be ordered separately
- Number of vertical modules [50 mm]
- 27
- Number of 18 mm modules per row
- 24
- Standards
- IEC 61439-1; IEC 61439-2; IEC 62208
- Product certifications
- ASTA; EAC
- [Ui] rated insulation voltage
- 1000 V on main rear busbars conforming to IEC 61439-2
- Network frequency
- 50/60 Hz
- [In] rated current
- 630 A at 40 °C conforming to IEC 61439-2
- Short-circuit current
- 50 kA
- [Icw] rated short-time withstand current
- 25 kA 1 s conforming to IEC 61439-1
- [Ipk] rated peak withstand current
- 53 kA conforming to IEC 61439-1
- Electrical insulation class
- Class I
- Material
- Treated sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 575 mm
- Height
- 1500 mm
- Depth
- 260 mm
- Product weight
- 25 kg
- IP degree of protection
- IP55 with door
- IK degree of protection
- IK10 with door conforming to EN/IEC 62262
- Mechanical robustness
- Seismic tests - 2.5G conforming to IEC 60068-2-57
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 7
- Country of origin
- FR
- Warranty (in months)
- 18
- RAL-number
- 9003
- With mounting plate
- No
- Suitable for wall mounting
- Yes
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- No
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606481876553
- SAP 1200547506
- Code 82879076
Product Documentation
More from Schneider Electric
Schneider Electric
Door IP30 PrismaSeT P width 300mm
LVS08513
Schneider Electric
Schneider Electric PanelSet S3X stainless 316L, Scotch Brite® finish, H700XW500XD250 mm. NSYS3X7525H
Schneider Electric
Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 IC60, 2P, 32A, C curve, 10000A/15KA, A type, 300MA A9D54232
Schneider Electric
Schneider Electric TransferPacT Active Automatic, 100A, 230V, 3P, LCD, frame 250A TA25D3L1002TPE
Schneider Electric
Sounder with LED red 230VAC
XB5KS2M4
Schneider Electric
PratiKa Wall-Mounted Socket Outlet, Large, 16 A 2P+E 230 V (83154)
Schneider Electric

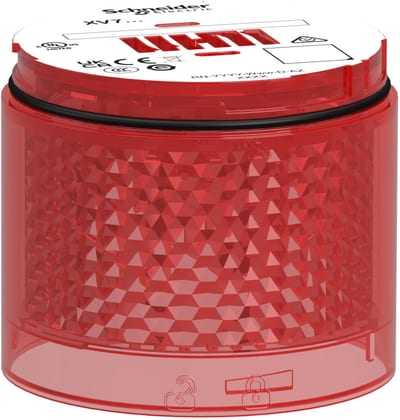

Light Unit with blinkende LED in red
XVB7C54
Schneider Electric

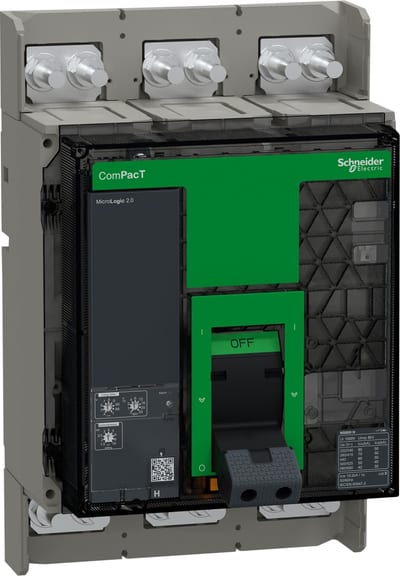

Schneider Electric Circuit breaker frame, ComPacT NS1600N, 50KA at 415VAC, 1600A, 3P, fixed, manually operated, without control unit C160N3FM
