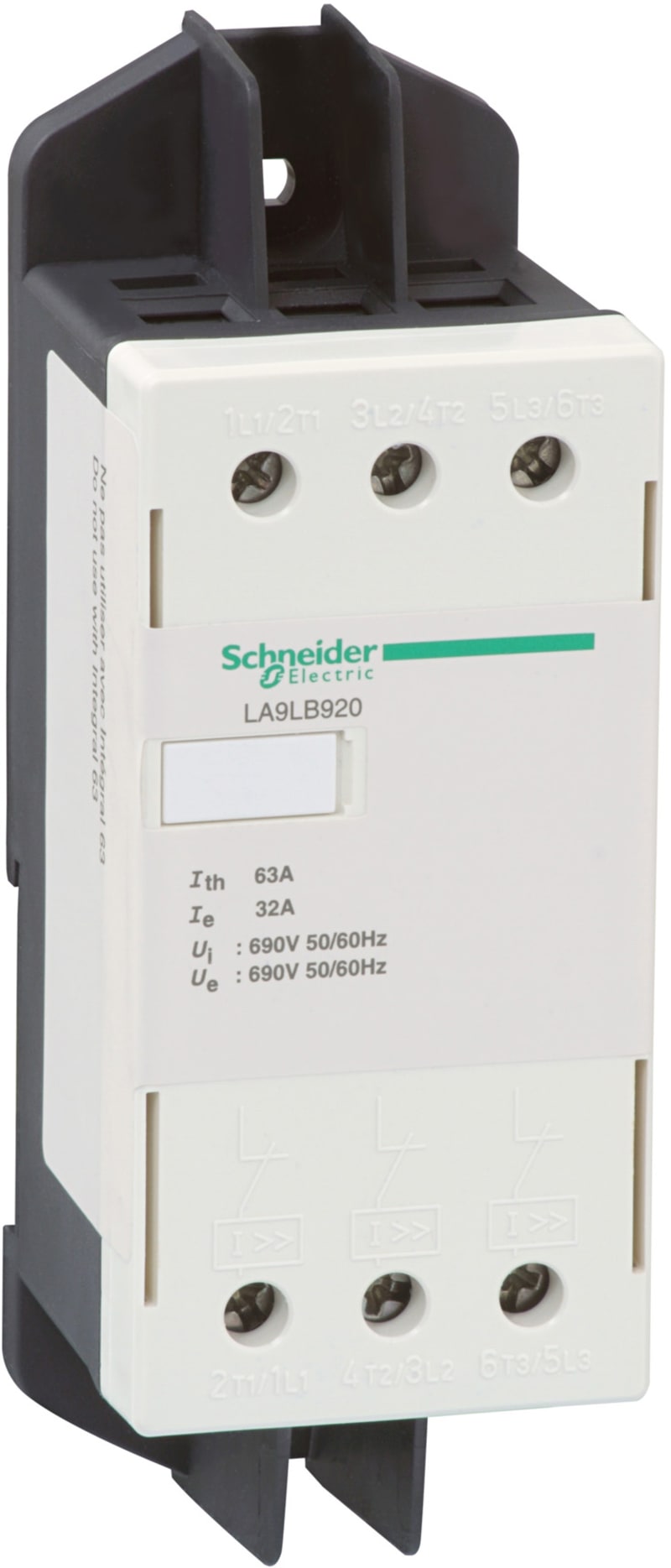

Schneider Electric LA9LB920 TeSys Current Limiting Module 32 A

TeSys GV2 current limiting module that increases the breaking capacity of associated motor-starter circuit breakers up to 100 kA. Rated 32 A operational, 63 A thermal, 690 V AC 50/60 Hz; 35 mm DIN-rail mounted with screw-clamp terminals accepting 1.5-25 mm2 conductors. Compatible with LUB, LU2B, GV2P, GV2L, GV2RT and GV2ME devices.

Manufacturer part number (MPN)

LA9LB920

EAN / GTIN

3389110741384

Sales unit

pcs

Package quantity

12 pcs

Range

TeSys

Range of product

TeSys U; TeSys GV2

Accessory / separate part category

Protection accessory

Product or component type

Current limiting module

Range compatibility

TeSys TeSys U; TeSys TeSys GV2

Product compatibility

LUB; LU2B; GV2P; GV2L; GV2RT; GV2ME

Function of module

Increasing the breaking capacity of a circuit breaker

Mounting location

35 mm DIN rail

[Ie] rated operational current

32 A

[Ith] conventional free air thermal current

63 A conforming to IEC 60947-1

Activation threshold

1000 A

Breaking capacity

<= 100 kA depending on protective device

[Ue] rated operational voltage

690 V AC 50/60 Hz

[Ui] rated insulation voltage

690 V AC 50/60 Hz conforming to IEC 60947-1

Connections - terminals

Screw clamp terminals 1 x 1.5…25 mm² rigid; Screw clamp terminals 2 x 1.5…10 mm² rigid; Screw clamp terminals 1 x 1.5…25 mm² flexible without cable end; Screw clamp terminals 2 x 1.5…10 mm² flexible without cable end; Screw clamp terminals 1 x 1.5…16 mm² flexible with cable end; Screw clamp terminals 2 x 1.5…4 mm² flexible with cable end

Tightening torque

2.2 N.m

Product weight

0.32 kg

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.0 cm

Package 1 Width

8.5 cm

Package 1 Length

15.7 cm

Package 1 Weight

346.9 g

Unit Type of Package 2

S02

Number of Units in Package 2

12

Package 2 Height

15.0 cm

Package 2 Width

30.0 cm

Package 2 Length

40.0 cm

Package 2 Weight

4.494 kg

Country of origin

FR

Warranty (in months)

18

Mounting method

DIN rail

Rated permanent current Iu

32 A

Conditioned rated short-circuit current Iq

100 kA

Short-circuit current limiter

Yes

Max. apparent power

35000 VA

HS Code

8536.49
