SMT 750VA 230V SD RM LI SC
Pricing
Request a quote
We reply within 24 hours
Product Description

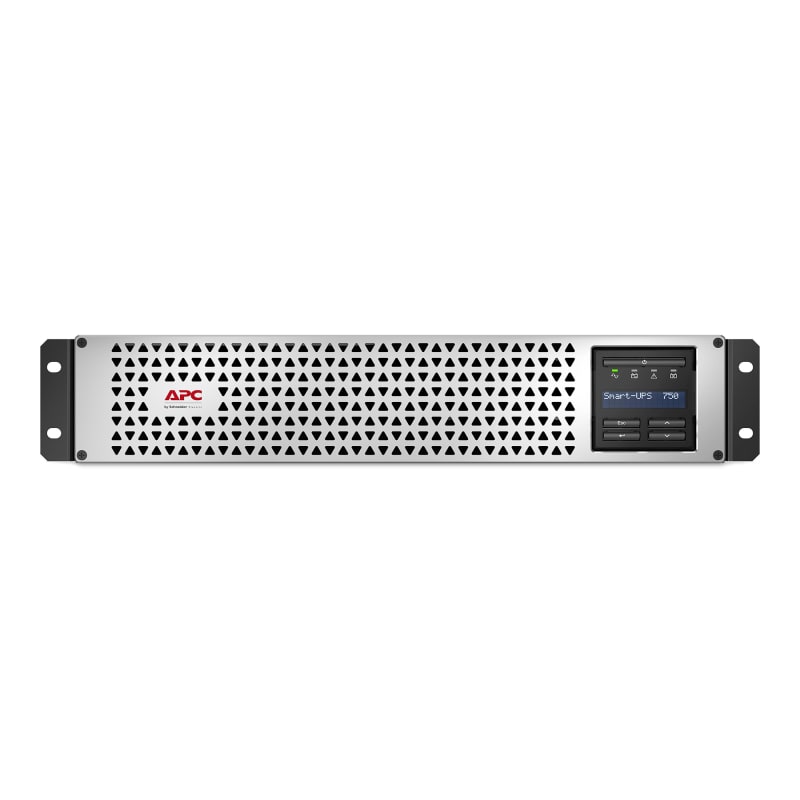

Schneider Electric SMTL750RMI2UC SMT -Ups Lithium ion, short depth 750VA with SmartConnect, Rack model incl. rail 2U.
Technical Specifications
- Manufacturer part number (MPN)
- SMTL750RMI2UC
- EAN / GTIN
- 0731304407966
- Sales unit
- pcs
- Voltage
- 230 V
- Presentation
- Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
- Main input voltage
- 230 V AC 1 phase
- Other input voltage
- 220 V; 240 V
- Input connection
- IEC 60320 C14
- Input protection
- Circuit breaker
- Efficiency at full load
- 151...302 V adjustable; 160...286 V
- Input frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 600 W
- Rated power in VA
- 750 VA
- Output connection
- 6 IEC 60320 C13; 2 IEC Jumpers
- Crest factor
- 3 : 1
- Harmonic distortion
- Less than 5 %
- Maximum configurable power in VA
- 750 VA
- Maximum configurable power in W
- 600 W
- Transfer time
- 6 ms typical : 10 ms maximum
- UPS topology
- Line interactive
- Waveform type
- Its wave
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Battery type
- Li-Ion (Lithium-Ion) internal included
- Control panel
- Multifunction LCD status and control console
- Free slot
- 1
- Alarm
- Alarm when on battery : distinctive low battery alarm
- UPS connectivity
- Serial port; USB port; SmartConnect port; Available expansion slot
- Communication port support
- SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
- Software package
- SmartConnect software for remote power monitoring feature availability varies by terms of use
- Surge energy rating
- 645 J
- Noise filtering
- Full time multi-pole noise filtering : 0.3% IEEE surge light-through : zero clamping response time : meets UL 1449
- Number of rack unit
- 2U
- Color
- Black with silver front bezel
- Height
- 86 mm
- Width
- 438 mm
- Depth
- 318 mm
- Product weight
- 15.4 kg
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted
- USB compatible
- Yes
- Provided equipment
- USB cable; Ethernet patch cable; Rack mounting brackets; Screw; Washer; Rack mounting support rails
- Additional specification
- Cloud-enabled monitoring
- Redundant
- No
- Range of product
- Smart-UPS
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- C-Tick; CE; EAC; UK PSTI
- Standard
- EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…7620 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 41 dBA
- Heat dissipation
- 135 Btu/h
- Operating altitude
- 0...10000 ft
- Battery graph comment
- This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v
- Extendable runtime
- 0
- Typical recharge time
- 3 h
- Battery design life
- 8…10 year(s)
- Battery charging power
- 50 W rated
- Number of Units in Package 1
- 1
- Country of origin
- PH
- Warranty (in months)
- 60
