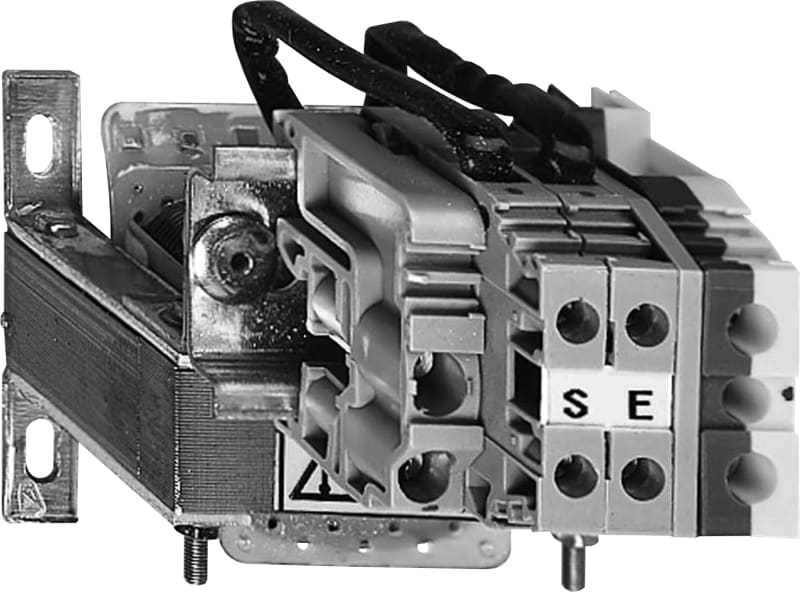

Nettinduktans 1-Phase 7A 5MH

Schneider Electric VZ1L007UM50 Nettinduktans 1-phase 7A 5mH.

Manufacturer part number (MPN)

VZ1L007UM50

EAN / GTIN

3389110890839

Sales unit

pcs

Package quantity

42 pcs

Range of product

Altivar

Product or component type

Line choke

Product compatibility

ATV312H055M2 - line choke - 1 per drive; ATV312H075M2 - line choke - 1 per drive; ATV31C055M2 - line choke - 1 per drive; ATV31C075M2 - line choke - 1 per drive; ATV32H055M2 - line choke - 1 per drive; ATV32H075M2 - line choke - 1 per drive; LXM05D10F1 - line choke - 1 per drive; LXM05D10M2 - line choke - 1 per drive; LXM32.U45M2 - line choke - 1 per drive; Variable speed drive ATV320 motor: 0.55 kW 200...240 V - single phase - line choke - 1 per drive; Variable speed drive ATV320 motor: 0.75 kW 200...240 V - single phase - line choke - 1 per drive

number of phases

Single phase

Range compatibility

Lexium 32; Altivar 31C; Altivar 312; Altivar 312 Solar; Altivar Machine ATV320; Lexium 05; Altivar 32

Device application

Reduction of current harmonics

Value of inductance

5 mH

[In] rated current

7 A

Thermal losses

20 W

power supply frequency

50...60 Hz

Maximum voltage drop at rated load

5 %

Product weight

0.88 kg

Width

60 mm

Height

100 mm

Depth

95 mm

Standards

IEC 60076 (with HD398); VDE 0160 level 1; EN 50178

IP degree of protection

Choke: IP00; Terminals: IP20

Number of Units in Package 1

1

Number of Units in Package 2

42

Country of origin

FR

Warranty (in months)

18

Suitable as interference suppression reactance coil

No

Suitable as net reactance coil

Yes

Suitable as commutation reactance coil

No

Suitable as ripple filter choke

No

Suitable as output reactance coil

No

Number of poles, primary side

1

Rated operating frequency

50–60 Hz

Max. rated operation voltage Ue

690 V

Rated current AC

7 A

Rated inductance

5 mH

Degree of protection (IP)

IP00

Relative short circuit voltage

0 %

HS Code

7326.90
