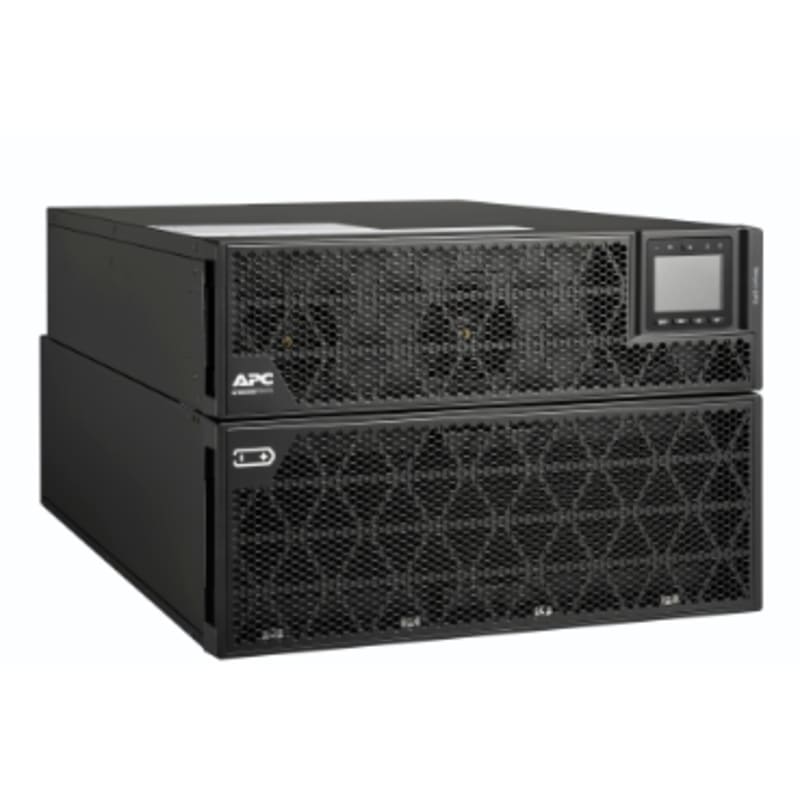

SRTG 20KVA 230V RM (SRTG20KXLI)

Schneider Electric SRTG20KXLI APC -UPS On-Line, 20kVA/20kW, Rack/Tower, 230V/400V, HW(3P+N+E)(1P+N+PE), NMC, without rail kit.

Manufacturer part number (MPN)

SRTG20KXLI

EAN / GTIN

0731304411901

Sales unit

pcs

Voltage

230 V

Main input voltage

230 V AC 1 phase; 400 V AC 3 phases

Other input voltage

380...415 V; 220...240 V

Maximum input current

87 A

Input harmonic distortion

Less than 5 % for full load

Load power factor

From 0.9 leading to 1 lagging

Switching current capacity

125 A

Efficiency at full load

160...285 V full load; 100...285 V half load

Input connection

1 hard wire 5 wire (3P + N + E); 1 hard wire 3-wire (1P + N + E)

Input frequency

40...70 Hz auto-sensing

Output voltage

230 V AC 1 phase; 400 V AC 3 phases

Other output voltage

230 V

Rated power in W

20000 W

Rated power in VA

20000 VA

Output connection

1 IEC 60320

Bypass type

Internal bypass (automatic and manual)

Crest factor

3 : 1

Harmonic distortion

Less than 2 %

Maximum configurable power in VA

20000 VA

Maximum configurable power in W

20000 W

Output overload operation

60 seconds at 125% and 30 seconds at 150%

UPS topology

On-Line

Waveform type

Its wave

Efficiency

94.5 %

Output frequency

50/60 Hz +/- 4 Hz sync to mains

Replacement battery

APCRBC172

Run Time

View Runtime Graph

Additional information

Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage; Configurable for 220 : 230 or 240 nominal output voltage

Battery type

Lead-acid external included

Emergency power off

Yes

Free slot

0

Preinstalled device

Network management card 3 with environmental monitoring

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

UPS connectivity

Serial port; USB port; Pre-installed network management card 3

Surge energy rating

600 J

Noise filtering

Full time multi-pole noise filtering : 0.3% IEEE surge light-through : zero clamping response time : meets UL 1449

Number of rack unit

7U

Color

Black (RAL 9005)

Height

306 mm

Width

440 mm

Depth

835 mm

Product weight

142.5 kg

Mounting location

Front

Mounting preference

Lower

Mounting mode

Rack-mounted

Two post mountable

0

USB compatible

Yes

Mounting position

Horizontal

Provided equipment

1 x USB cable; 1 x RJ45 cable; 2 x rack mounting brackets; 2 x stabilization/wall mounting feet; 2 x installation manual; 1 x C13-C14 power cord; 1 x external battery pack; 1 x battery cable

Number of power module filled slots

0

Number of power module free slots

0

Redundant

No

Range of product

Smart-UPS On-Line

Product or component type

Uninterruptible power supply (UPS)

Product certification

CE; UKCA; TISI

Standard

EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0…15000 m

IP protection

IP20

Relative humidity

0…95 % non-condensing

Storage relative humidity

0…95 % non-condensing

Acoustic level

58 dBA

Heat dissipation

3821 Btu/h

Operating altitude

0...3000 m

Battery voltage

+/- 192 V

Extendable runtime

1

Included battery module

0

Empty battery slot

0

Typical recharge time

4 h

RBC quantity

2

Battery life

3…5 year(s)

Battery charging power

2160 W rated

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

53.5 cm

Package 1 Width

79.0 cm

Package 1 Length

59.0 cm

Package 1 Weight

157.2 kg

Country of origin

CN

Warranty (in months)

36 UPS|24 Battery

HS Code

8504.40
