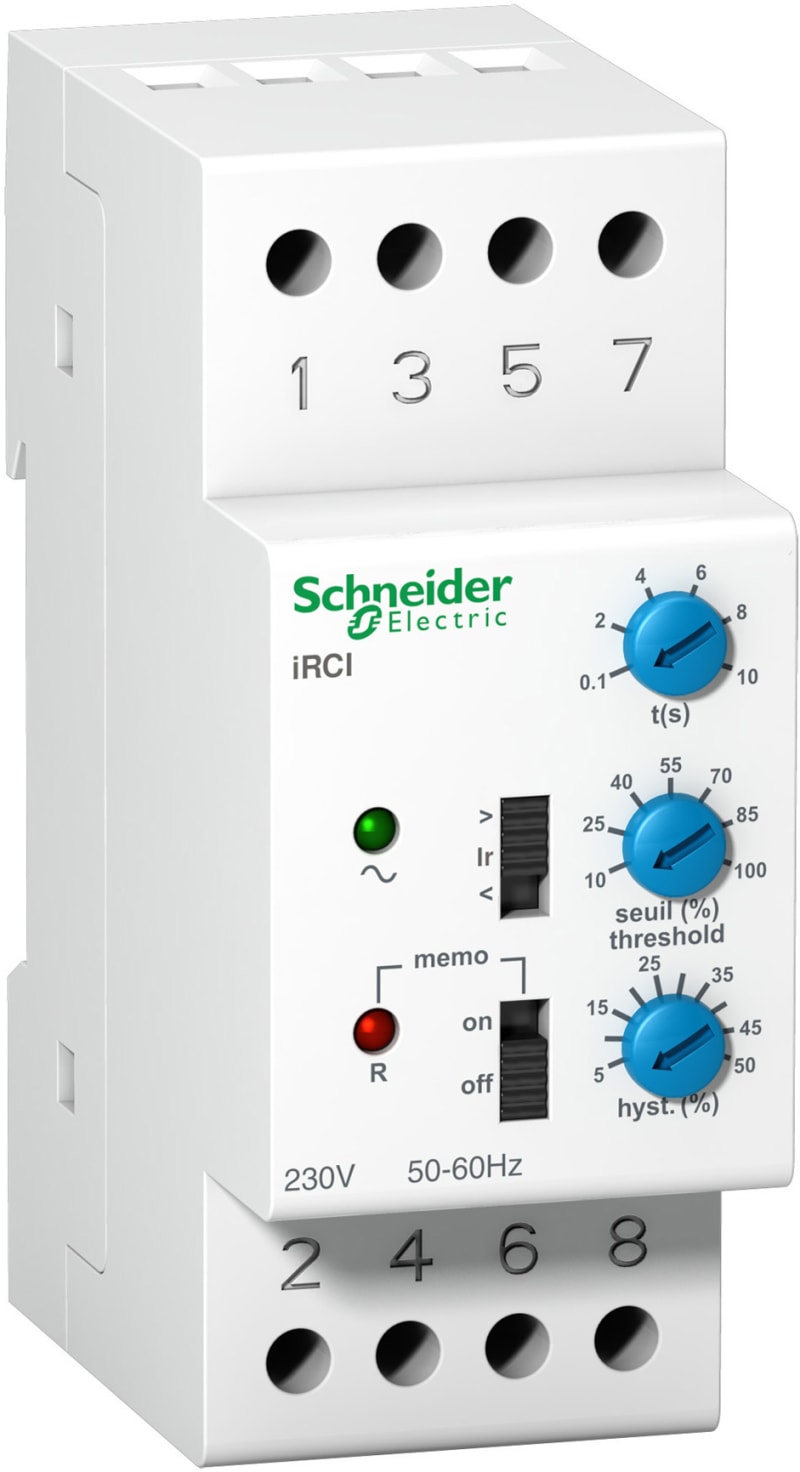

Schneider Electric current control relay iRCI - 8 A - 230 V 50/60Hz - 1 OC A9E21181

Current monitoring relay iRCI 1CO 8A 230VAC.

Manufacturer part number (MPN)

A9E21181

EAN / GTIN

3606480377501

Sales unit

pcs

Voltage

230 V AC

Rated current

8 A

range of product

Acti9

Product name

Acti9 iRC

Product or component type

Control relay

Device short name

iRCI

Device application

Current control relay

Signal contacts composition

1 C/O

[Ie] rated operational current

8 A at 250 V AC (cos Phi = 1)

Local signalling

Reports when the preset threshold is reached; Red LED for fault; Green LED for power on

Type of setting

Selected by wiring: measurement range; Switch: overcurrent; Switch: undercurrent

Tripping threshold

10...100 %

Analogue input range

1...10 A DC; 0.15...1.5 A DC; 1...10 A AC; 0.15...1.5 A AC

Hysteresis

5…50 %

Time delay range

0.1...10 s

Accuracy error

+/- 10 %

[Us] rated supply voltage

230 V AC at 50/60 Hz

Power consumption in VA

3 VA

Power dissipation in W

2 W

mounting mode

Fixed

Mounting support

35 mm symmetrical DIN rail

9 mm pitches

4

Height

88.1 mm

Width

36 mm

Depth

67 mm

Product weight

215 g

Colour

White

Connections - terminals

Tunnel type terminals6 cable(s) 1.5 mm² rigid

IP degree of protection

IP20

Ambient air temperature for operation

-5…55 °C

Ambient air temperature for storage

-40…80 °C

Number of Units in Package 1

1

Number of Units in Package 2

36

Warranty (in months)

18

Operating voltage AC 50 Hz

250 V

Operating voltage AC 60 Hz

250 V

External power supply required

No

Supply voltage AC 50 Hz

230 V

Supply voltage AC 60 Hz

230 V

Rated switch current

8 A

Type of current

AC

Voltage type (operating voltage)

AC

Type of electric connection

Screw connection

With detachable clamps

No

Single-phase under current possible

Yes

Three-phase under current possible

No

Single-phase overcurrent possible

Yes

Three-phase overcurrent possible

No

Single-phase hysteresis possible

Yes

Three-phase hysteresis possible

No

Contains function DC-voltage under current

Yes

Contains function DC-voltage overcurrent

Yes

Function DC-current hysteresis

Yes

Rated control supply voltage AC 50 Hz

230 V

Rated control supply voltage AC 60 Hz

230 V

Voltage type for actuating

AC

Current measuring range

0.15–10 A

Min. adjustable delay-on energization time

0.1 s

Max. permitted delay-on energization time

10 s

Min. adjustable off-delay time

0.1 s

Max. permitted off-delay time

0.1 s

Number of contacts as change-over contact

1

External current transformer

No

Country of origin

Italy

HS Code

8536.49
