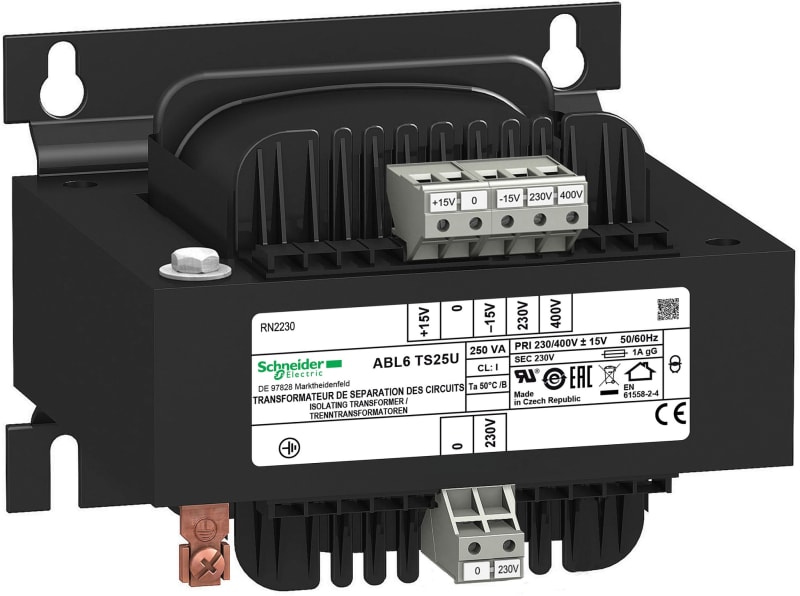

Schneider Electric voltage transformer - 230..400 V - 1 x 230 V - 250 VA ABL6TS25U

Schneider Electric ABL6TS25U Safety- and isolating transformer 250VA - supply 230-400V - output 230V.

Manufacturer part number (MPN)

ABL6TS25U

EAN / GTIN

3389110880366

Sales unit

pcs

Voltage

230-400 V

Range of product

Modicon Transformer Optimized

rated power in VA

250 VA

Product or component type

Safety and isolation transformer

Input voltage

230 V AC single phase, terminal(s): N-L1; 400 V AC phase to phase, terminal(s): L1-L2

Output voltage

230 V AC

Secondary winding

Single

Protective cover

Without

Ambient air temperature for operation

-20…50 °C

Input voltage limits

207...253 V; 360...440 V

Network frequency limits

47…63 Hz

Input voltage tolerance

+/- 15 V

Efficiency

90 %

Power dissipation in W

27.8 W

Output sustained overvoltage

5 % (no load, hot state)

Maximum voltage drop at rated load

0.7 %

No load losses

12.5 W

Short-circuit voltage

0,0585

Output protection type

Against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection; Against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection; Against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection

Connections - terminals

For input connection: screw type terminals, connection capacity: 5 x 4 mm² 11 AWG; For input ground connection: screw type terminals, connection capacity: 1 x 4 mm² 11 AWG; For output connection: screw type terminals, connection capacity: 2 x 4 mm² 11 AWG

Marking

CE

Fixing mode

By 4 screws diameter: 5.8 mm on vertical panel, operating position: horizontal; By 4 screws diameter: 5.8 mm on vertical panel, operating position: vertical; By 4 screws diameter: 5.8 mm on horizontal panel with derating to 90 %

Operating altitude

3000 m

Electrical insulation class

Class B

Width

120.0 mm

Height

93.0 mm

Depth

122.0 mm

Product weight

4.09 kg

Product certifications

UR; EAC; DNV-GL

Standards

UL 506

IP degree of protection

IP20

Environmental characteristic

EMC conforming to IEC 62041; Safety conforming to EN 61558-1; Safety conforming to EN 61558-2-4

Protective treatment

TC

Ambient air temperature for storage

-40…80 °C

Overvoltage category

Class I conforming to VDE 0106-1

Dielectric strength

2000 V between winding and ground; 4000 V between primary and secondary

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

21.200 cm

Package 1 Width

21.200 cm

Package 1 Length

21.800 cm

Package 1 Weight

4.290 kg

Unit Type of Package 2

P06

Number of Units in Package 2

30

Package 2 Height

75.000 cm

Package 2 Width

60.000 cm

Package 2 Length

80.000 cm

Package 2 Weight

141.700 kg

Country of origin

CZ

Warranty (in months)

18

Built as safety transformer

Yes

Built as isolating transformer

Yes

Built as energy saving transformer

No

Primary voltage 1

230–400 V

Primary voltage 2

385–415 V

Secondary voltage 1

230 V

Rated apparent power

250 VA

Type of insulation material according to IEC 85

B

Short-circuit-proof

No

Relative short circuit voltage

5.85 %

Degree of protection (IP)

IP20

Ring core

No

Suitable for mounting on PCB

No

Suitable for distribution board

No

HS Code

8504.31
