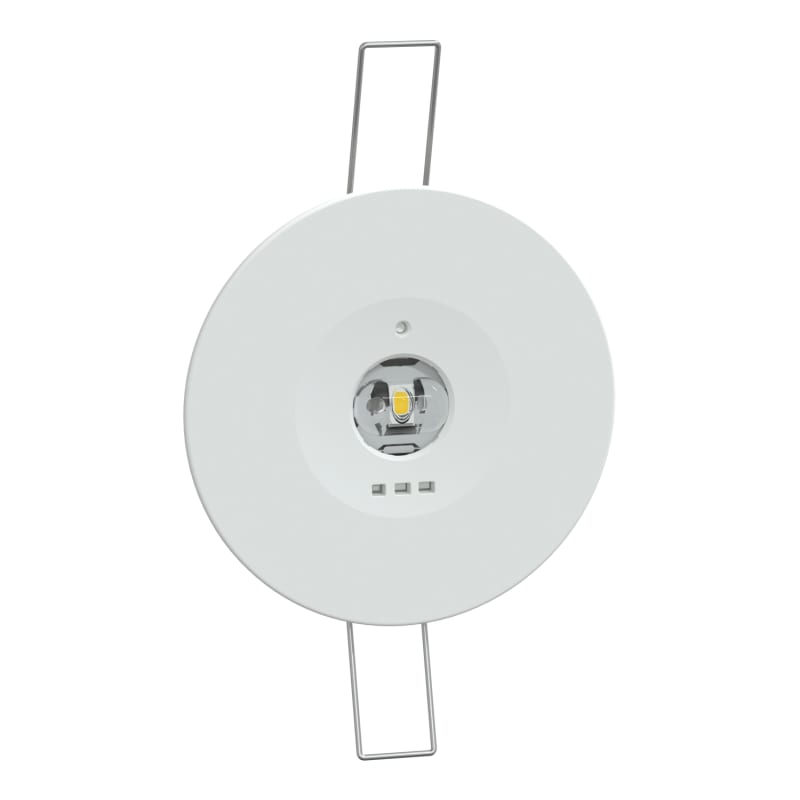

Smartbeam ACT/D3 RECESSED ASY 2T IP42 380LM
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric OVA48982 Exiway Smartbeam emergency lighting Activa/Dali, 380lm, recessed, asymmetric, 2 t, M/NM, IP42, LiFePO4.
Technical Specifications
- Manufacturer part number (MPN)
- OVA48982
- EAN / GTIN
- 3606487002895
- Sales unit
- pcs
- IP rating
- IP42
- Luminous flux
- 380 lm
- Mounting method
- Surface mounting/recessed mounting
- Suitable for labelling type
- Insert sheet/plate
- Type of indicator
- Double-sided
- Monitoring equipment
- Automatic self test
- Power supply system
- Peripheral (individual battery)
- Battery technology
- Lithium-ion
- Lamp type
- LED not exchangeable
- Housing material
- Plastic
- Housing colour
- White
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- Light distributor
- Focal lens
- Luminous flux in emergency mode
- 380 lm
- Rated lifetime L70/B50 at 25 °C
- 100000 h
- Degree of protection (IP)
- IP42
- Impact strength
- IK04
- Max. system power
- 3.66 W
- Rated luminous flux according to IEC 62722-2-1
- 380 lm
- Luminous flux in standby mode
- 220 lm
- Recognition distance
- 20 m
- Height/depth
- 32 mm
- Outer diameter
- 90 mm
- Type of wiring
- Suitable for loop-through wiring
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- Emergency power supply system
- Peripheral (individual battery)
- Power consumption in emergency mode
- 3.66 W
- Emergency function monitoring system
- Automatic self test
- Type of lithium-ion battery
- Lithium iron phosphate (LiFePO4)
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 3606487002895
- SAP 1200931236
- Code 84218889
Product Documentation
More from Schneider Electric
Schneider Electric

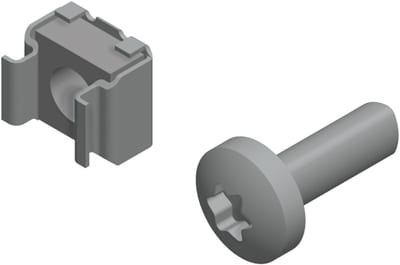

M6 Muter 8,5 SLOT 2,5 THICK
NSYCN9M625
Schneider Electric

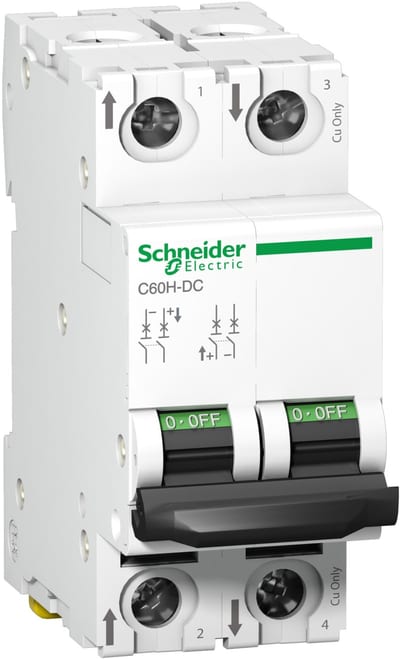

Schneider Electric Miniature circuit breaker (MCB), ACTI9 C60H-DC, 2P, 25A, C curve, 6KA (IEC/EN 60947-2) A9N61533
Schneider Electric

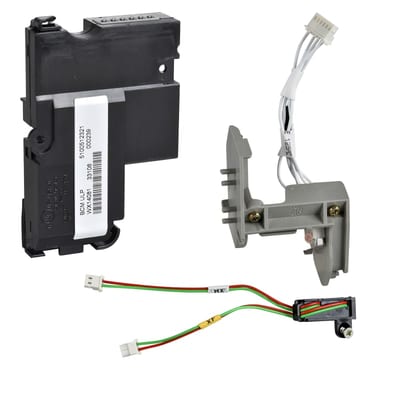

Eco Modbus Comm.. for Manual El. Motorbe
33703
Schneider Electric

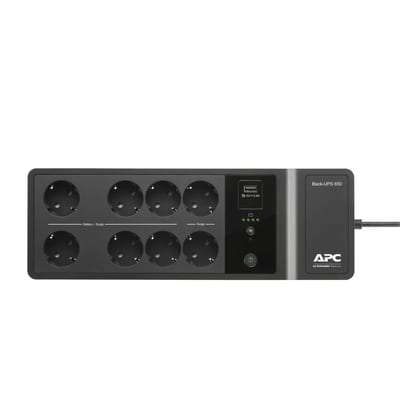

Schneider Electric APC Back-UPS, 650VA/400W Floor/Wall Mount, 230V, 8X CEE 7/3 Schuko outlets, USB Type A Port, User Replaceable Battery BE650G2-GR
Schneider Electric

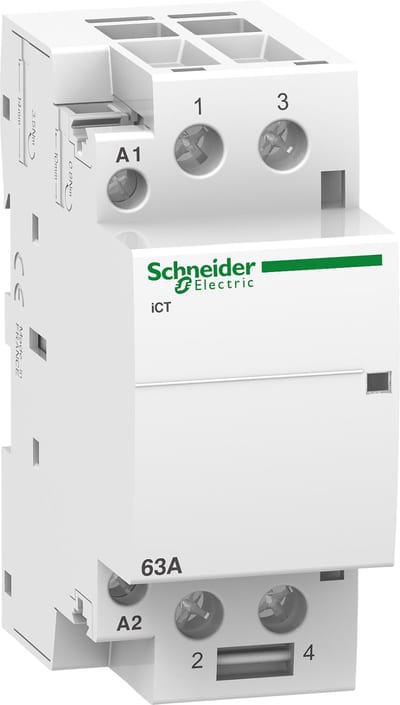

Schneider Electric iCT 63A 2NO 220...240V 50Hz contactor A9C20862
Schneider Electric

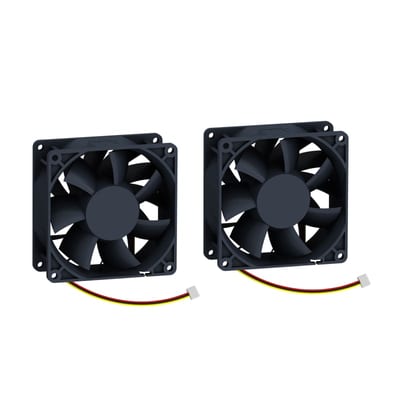

Fan for ATV600/900 37-90KW690V
VX5VPS5002
Schneider Electric

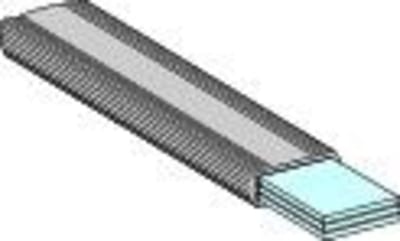

Schneider Electric Insulated flexible bar, 250 A, size 20 x 3 mm, length 1800 mm LVS04743
