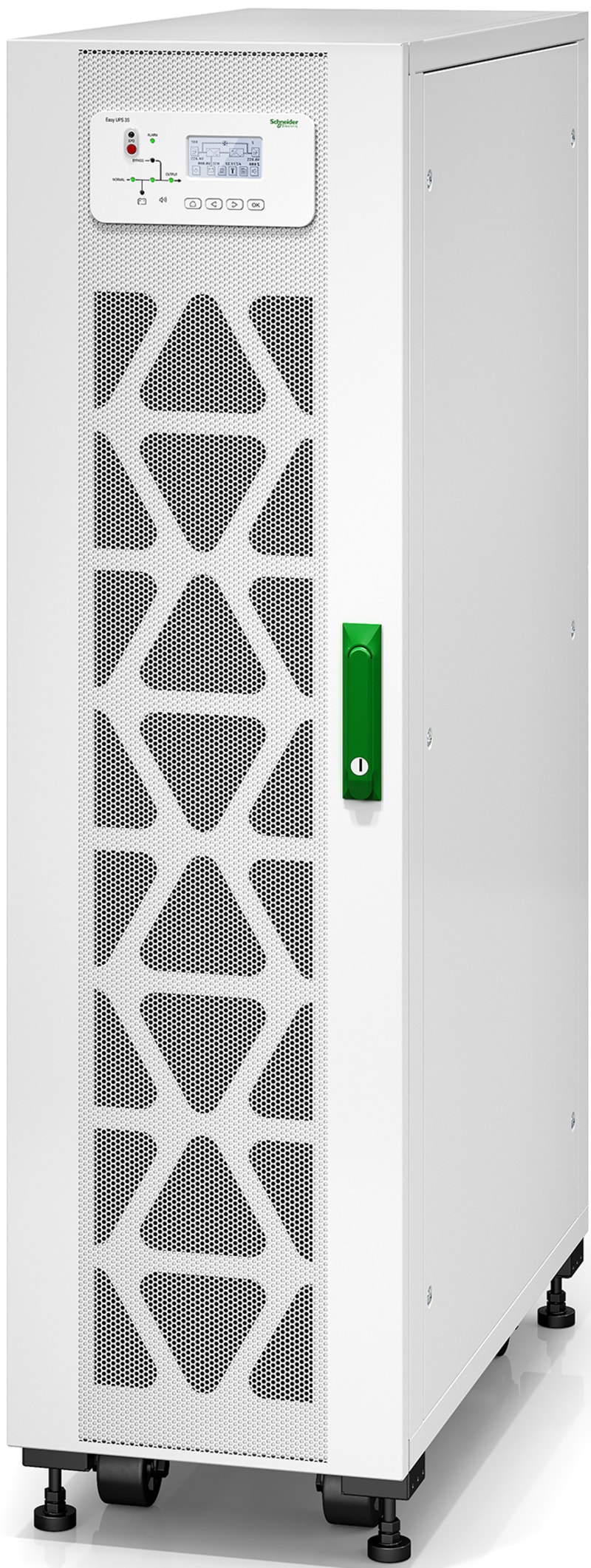

Schneider Electric Easy UPS 3S 20KVA 400V 3:3 UPS, 3 internal 7AH modular battery strings E3SUPS20KHB2
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric E3SUPS20KHB2 Easy UPS 3S 20 kVA 400 V 3:3 UPS with internal batteries, 30 min batteritid.
Technical Specifications
- Manufacturer part number (MPN)
- E3SUPS20KHB2
- EAN / GTIN
- 3606489697921
- Sales unit
- pcs
- Voltage
- 400 V
- Presentation
- Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 20 kVA, 400V 3-phase UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 3 internal 7Ah modular battery strings.
- Main input voltage
- 400 V AC 3 phases; 380 V AC 3 phases; 415 V AC 3 phases
- Other input voltage
- 380 V; 415 V
- Maximum input current
- 37 A
- Input harmonic distortion
- Less than 3 % for full load
- Load power factor
- 0.9 leading to 0.9 lagging
- Cos phi
- 0.99
- Efficiency at full load
- 304...477 V
- Input frequency
- 45...65 Hz
- Output voltage
- 400 V AC 3 phases; 380 V AC 3 phases; 415 V AC 3 phases
- Other output voltage
- 380 V; 415 V
- Rated power in W
- 20 kW
- Rated power in VA
- 20 kVA
- Harmonic distortion
- Less than 3 %
- Maximum configurable power in VA
- 20 kVA
- Maximum configurable power in W
- 20 kW
- Output harmonic distortion
- < 3% linear load
- Output voltage tolerance
- +/- 1.5 %
- UPS topology
- Double conversion online
- Output frequency
- 50 Hz sync to mains; 60 Hz sync to mains
- Efficiency
- View Efficiency Graph
- Additional information
- UPS weight does not include battery weight.
- Maximum short-circuit current
- 10 kA
- Battery type
- Lead-acid internal
- UPS connectivity
- Optional network management card 3
- Color
- White (RAL 9003)
- Height
- 140 cm
- Width
- 38 cm
- Depth
- 92.8 cm
- Product weight
- 446 kg
- USB compatible
- Yes
- Provided equipment
- Dust filter; Installation guide
- Range of product
- Easy UPS 3S
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; EAC; RCM
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…40 °C
- Storage altitude
- 0…15240 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 60 dBA
- Heat dissipation
- 900 W
- Operating altitude
- 0...3333 ft
- Battery voltage
- 240 V
- Included battery module
- 3
- Empty battery slot
- 0
- Number of Units in Package 1
- 1
- Warranty (in months)
- 12
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3606489697921
- SAP 1200182615
- Code 82322218
Product Documentation
