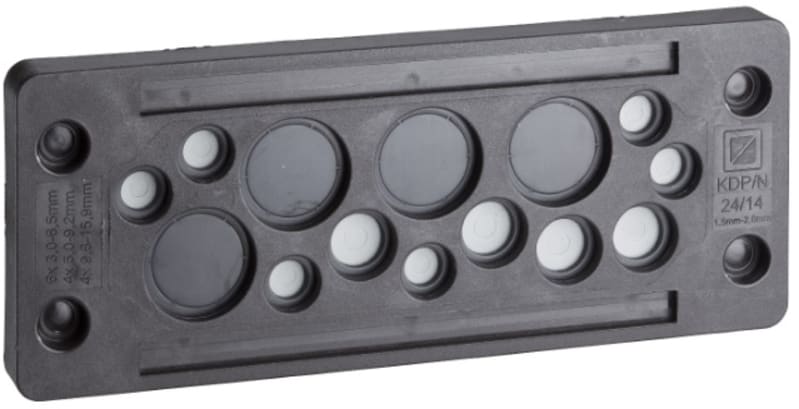

Schneider Electric NSYTSA2414SE PanelSeT Cable Entry Plate IP65 14 Entries

Schneider Electric NSYTSA2414SE is a PanelSeT quick-entry cable gland plate providing 14 sealed cable entries in one polyamide moulding: 6 x 3.0-6.5 mm, 4 x 5.0-9.2 mm and 4 x 9.6-15.9 mm. It fits the cable gland plate or body of the S3D, CRN, S3CM, SBM, PLA, PHD, PLM, PLS and S3HD PanelSeT enclosures and provides IP65 sealing without individual glands. Real dimensions 146 x 14 x 58 mm; country of origin France.

Manufacturer part number (MPN)

NSYTSA2414SE

EAN / GTIN

3606480168246

HS code

8544.42

Sales unit

pcs

Range

PanelSeT

Product or component type

Quick entrance plate

Accessory / separate part category

Cable management accessory

Device application

Multi-purpose

Range compatibility

PanelSeT S3D compact enclosure; PanelSeT CRN compact enclosure; PanelSeT S3CM control enclosure; PanelSeT SBM SBM industrial box; PanelSeT PLA PLA suitable enclosure; PanelSeT PHD suitable enclosure; PanelSeT PLM PLM compact enclosure; PanelSeT PLS PLS insulating modular box; PanelSeT S3HD compact enclosure

Device composition

1 fixing elements; 1 plate

Quantity per set

Set of 1

Mounting support

Body of enclosure; Cable gland plate

Material

Polyamide

Fixing mode

By fixing element

Total cable entry number

14

Cable entry number

6 x 3…6.5 mm; 4 x 5…9.2 mm; 4 x 9.6…15.9 mm

Height

Real: 14 mm

Width

Real: 146 mm; Cut-out: 112 mm; Fixing center: 130 mm

Depth

Real : 58 mm; Cut-out : 36 mm; Fixing centre : 32 mm

Product weight

0.16 kg

IP degree of protection

IP65

Number of Units in Package 1

1

Country of origin

FR

Warranty (in months)

18

HS Code

8544.42
