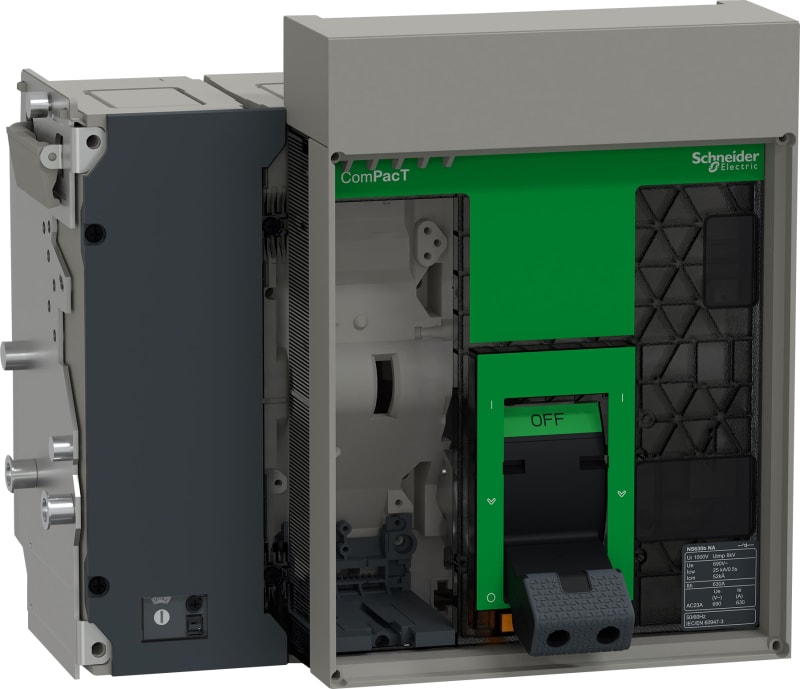

Schneider Electric Switch disconnector basic frame, ComPacT NS630B type NA, 4P, drawout, manually operated, 630A C063S4WM
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C063S4WM Load-Break Switch Base-ComPacT NS630NA-withdrawable-4p-manual-630A.
Technical Specifications
- Manufacturer part number (MPN)
- C063S4WM
- EAN / GTIN
- 3606482238558
- HS code
- 8536.90
- Sales unit
- pcs
- Product name
- ComPacT NS new generation
- Product or component type
- Basic frame
- Device application
- Distribution
- Poles description
- 4P
- Network type
- AC
- Breaking capacity code
- NA
- Suitability for isolation
- Yes conforming to IEC 60947-3
- Network frequency
- 50/60 Hz
- Control type
- Manually operated
- mounting mode
- Withdrawable
- Upside connection
- Front
- Downside connection
- Front
- [Ie] rated operational current
- AC-23A: 630 A AC 50/60 Hz 220/240 V; AC-23A: 630 A AC 50/60 Hz 380/415 V; AC-23A: 630 A AC 50/60 Hz 440/480 V; AC-23A: 630 A AC 50/60 Hz 500/525 V; AC-23A: 630 A AC 50/60 Hz 660/690 V
- [Ui] rated insulation voltage
- 800 V AC 50/60 Hz conforming to IEC 60947-3
- [Uimp] rated impulse withstand voltage
- 8 kV conforming to IEC 60947-3
- [Ith] conventional free air thermal current
- 630 A at 60 °C
- [Icw] rated short-time withstand current
- 25 kA during 0.5 s conforming to IEC 60947-3; 4 kA during 20 s conforming to IEC 60947-3
- [Icm] rated short-circuit making capacity
- 52 kA 690 V AC at 50/60 Hz
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz conforming to IEC 60947-3
- Contact position indicator
- Yes
- Visible break
- No
- Mechanical durability
- 10000 cycles conforming to IEC 60947-3
- Electrical durability
- 2000 cycles 440 V AC 50/60 Hz conforming to IEC 60947-3
- Connection pitch
- 70 mm
- Height
- 280 mm
- Width
- 327 mm
- Depth
- 147 mm
- Product weight
- 18 kg
- Standards
- IEC 60947-3
- Product certifications
- IECEE CB Scheme
- IP degree of protection
- IP40 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to EN 50102
- Pollution degree
- 3 conforming to IEC 60947-3
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Number of Units in Package 1
- 1
- Country of origin
- IT
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606482238558
- SAP 1200663661
- Code 83099264
Product Documentation
More from Schneider Electric
Schneider Electric

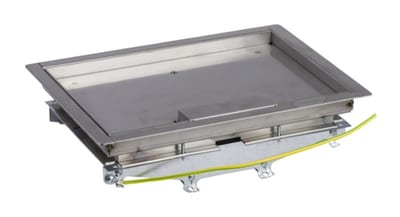

Schneider Electric UFB-700M Floor Box 25 mm Stainless Steel Lid
5198725
Schneider Electric

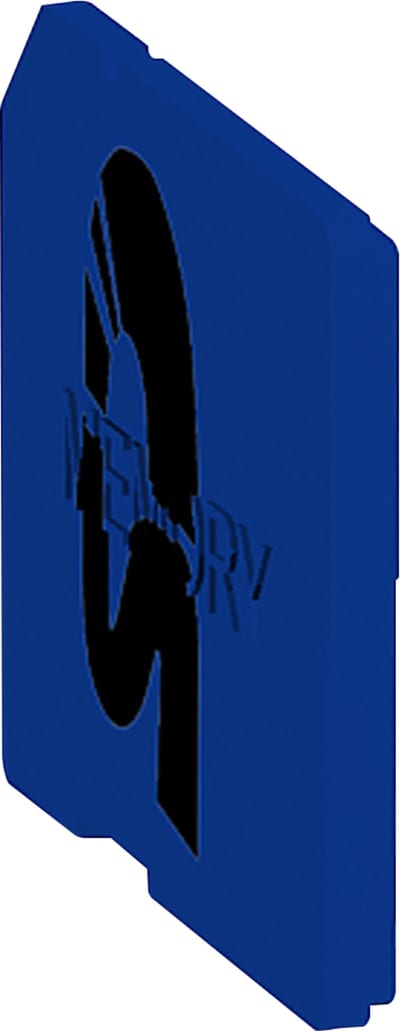

M340 Memory card 8MB, FIL 16MB
BMXRMS008MPF
Schneider Electric

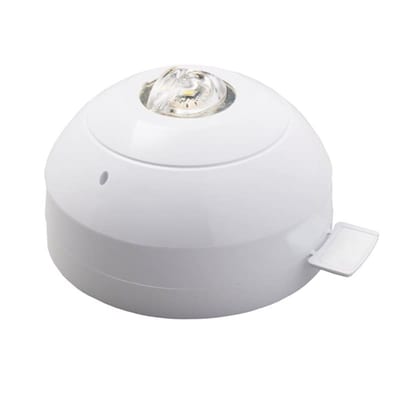

VAD, Intellia 743APO 15M ceiling white
FFS06728134
Schneider Electric

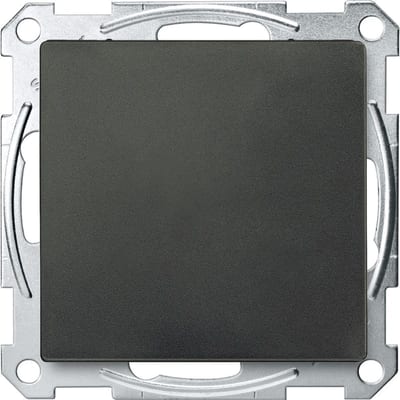

Schneider Electric Push-button Pro T, Merten System M, anthracite, Temperature sensor, Touchless, Supply KNX 20 mA MTN6185-0414
Schneider Electric

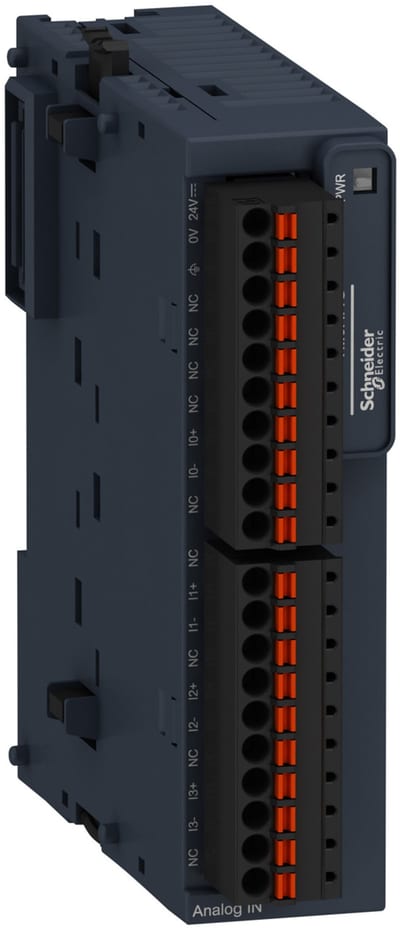

Schneider Electric Modicon TM3 - 4 analog inputs (spring) 24VDC TM3AI4G
Schneider Electric

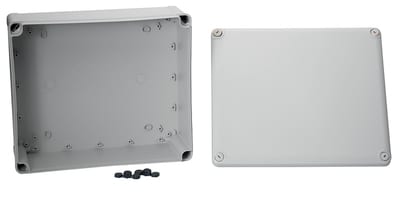

Schneider Electric Mureva BOX - junction box - w/o grommet - 325X275X120MM - without terminal ENN05059
Schneider Electric

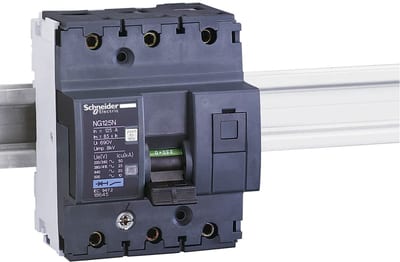

NG125N/C 32-3 Modular Power Switch
