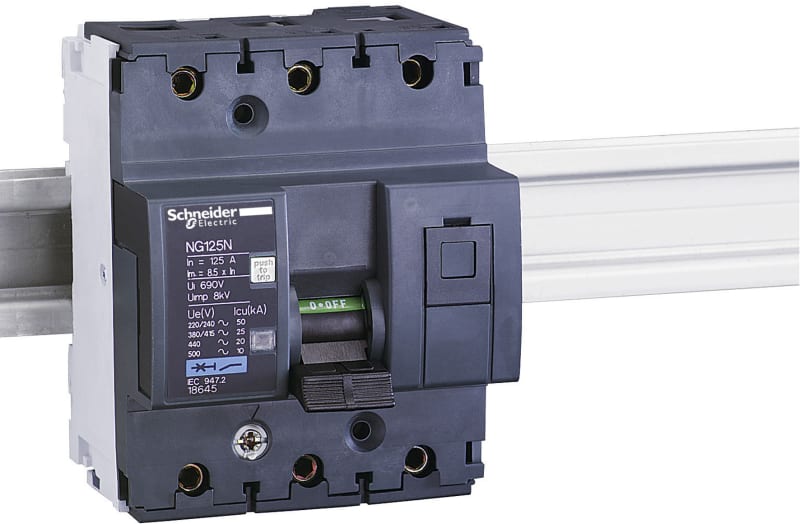

NG125N/C 32-3 Modular Power Switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 18636 NG125N/C 32-3 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18636
- EAN / GTIN
- 3303430186366
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Power loss
- 3.8 W
- Built-in depth
- 47 mm
- Release characteristic
- C
- Number of poles (total)
- 3
- Number of protected poles
- 3
- Rated current
- 32 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 4.5
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 1–35 mm²
- Connectable conductor cross section solid-core
- 1.5–50 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430186366
- SAP 1000023430
- Code 8186245
