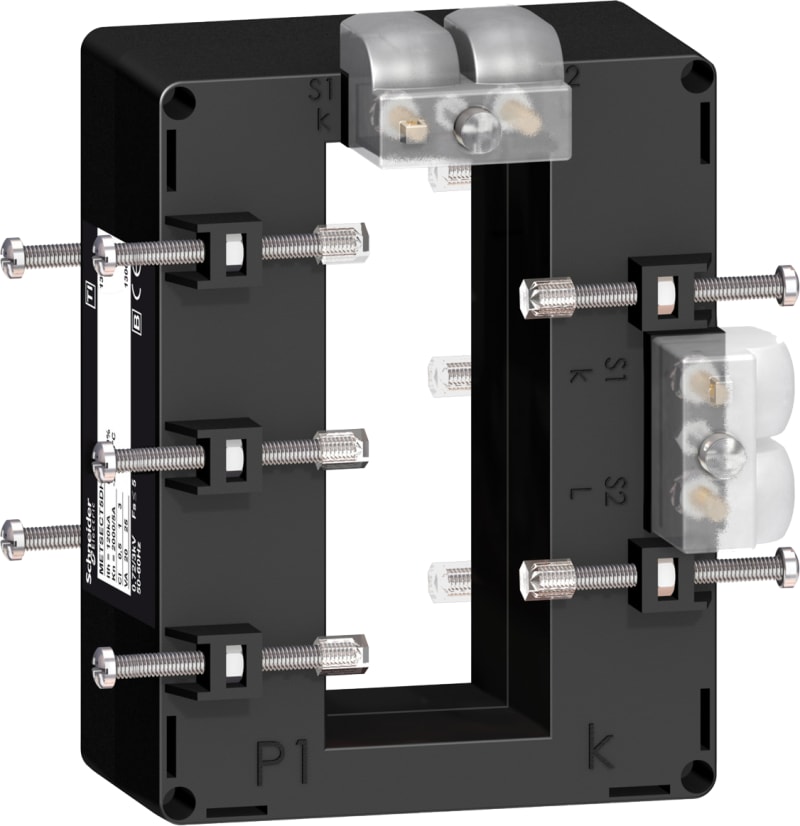

Current Transformer 1250/5 Rail 38X102

Schneider Electric METSECT5DH125 CT Current transformers with 5 A secondary current used together with an ammeter.

Manufacturer part number (MPN)

METSECT5DH125

EAN / GTIN

3606480618932

Sales unit

pcs

Range

PowerLogic

Product or component type

Current transformer

Product name

CT

Secondary current

5 A

Accuracy class

Class 0.5 at 12 VA; Class 1 at 15 VA

[In] rated current

1250 A

Current transformer type

Tropicalised for busbar; Solid core

Current transformer ratio

1250/5

[Ith] conventional free air thermal current

60 kA

Dynamic withstand current

2.5 Ith

Maximum safety factor

5

[Ue] rated operational voltage

< 720 V AC 50/60 Hz

mounting mode

Insulated locking screw

Mounting support

Busbar

Width

Outside: 98 mm; Inner: 40 mm

Height

Outside: 129 mm; Inner: 103 mm

Depth

Frame : 40 mm; Total : 75 mm

Product weight

0.548 kg

[Uimp] rated impulse withstand voltage

3 kV

Electrical insulation class

Class B

Opening of bars

102 x 38

Sealing

With

Standards

VDE 0414; IEC 61869-2

Product certifications

CE

IP degree of protection

IP20

Relative humidity

0…95 %

Ambient air temperature for operation

-25…50 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

10.6 cm

Package 1 Width

10.3 cm

Package 1 Length

13.8 cm

Package 1 Weight

553.0 g

Unit Type of Package 2

S03

Number of Units in Package 2

12

Package 2 Height

30.0 cm

Package 2 Width

30.0 cm

Package 2 Length

40.0 cm

Package 2 Weight

7.123 kg

Country of origin

TN

Warranty (in months)

18

Model

Through-feed current converter

Rated primary current

1250 A

Rated secondary current

5 A

Rated secondary apparent power

15 VA

Overcurrent limiting factor

FS 5

Calibrated

No

With contact protection

No

Height opening

103 mm

Width opening

40 mm

Snap mounting

No

With copper rail

No

Number of primary inputs

1

Secondary connection

Screw connection

HS Code

8504.31
