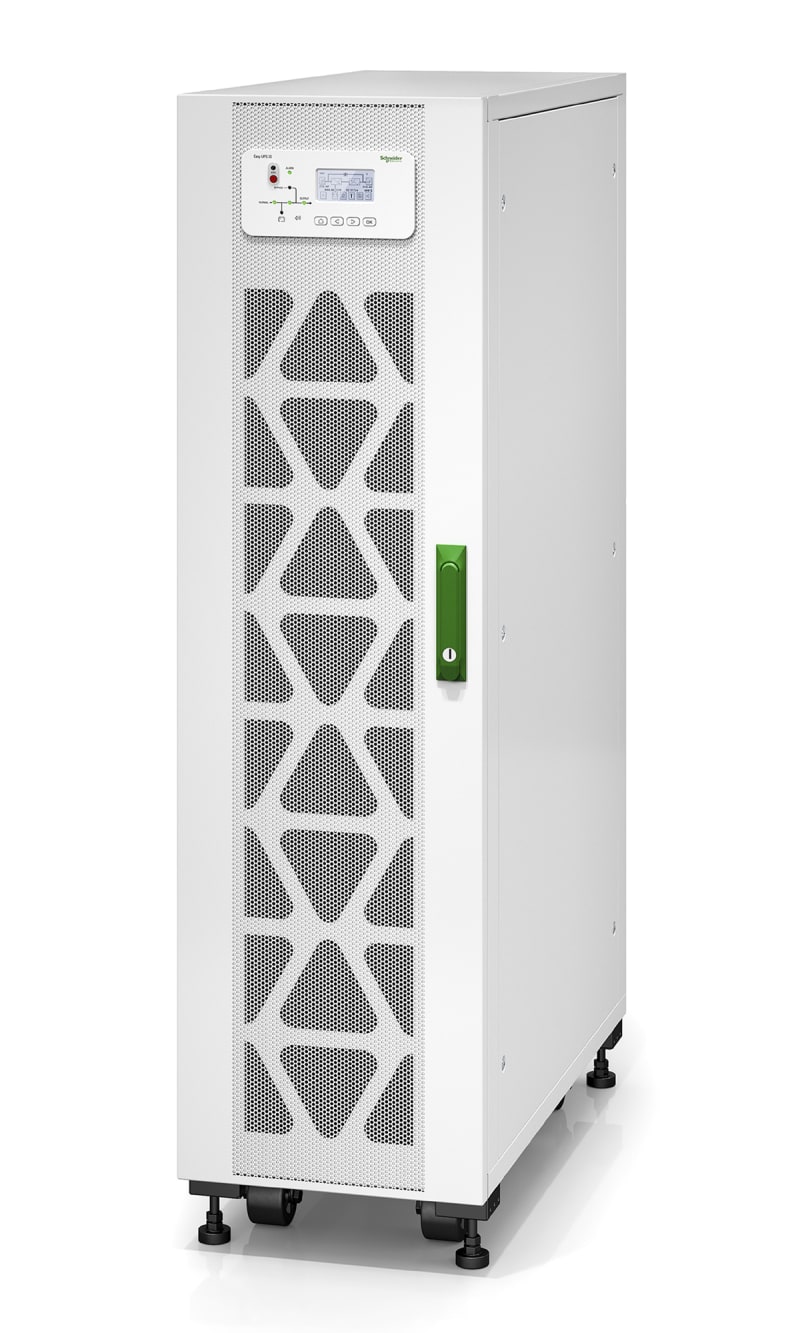

Schneider Electric Easy UPS 3S 15 kVA 400V 3:1 UPS, 1 internal 7AH modular battery string, expandable to 3 E3SUPS15K3IB1

Schneider Electric E3SUPS15K3IB1 Easy UPS 3S 15kVA 400V 3:1 UPS 10 min.

Manufacturer part number (MPN)

E3SUPS15K3IB1

Sales unit

pcs

El-nummer (NO)

6601225

ETIM class

ZC000934

Voltage

400 V

Presentation

Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 15 kVA 3:1 UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 1 internal 7Ah modular battery string, expandable to 3 strings for extended runtime.

Main input voltage

400 V AC 3 phases; 380 V AC 3 phases; 415 V AC 3 phases

Other input voltage

380 V; 415 V

Maximum input current

28 A

Input harmonic distortion

Less than 5 % for full load

Input protection

Circuit breaker and fuse

Cos phi

0.99

Input frequency

45...65 Hz

Output voltage

230 V AC 3 phases; 220 V AC 3 phases; 240 V AC 3 phases

Other output voltage

220 V; 240 V

Rated power in W

15 kW

Rated power in VA

15 kVA

Crest factor

3 : 1

Harmonic distortion

Less than 3 %

Maximum configurable power in VA

15 kVA

Maximum configurable power in W

15 kW

Output harmonic distortion

< 5.5% at 100% non-linear load

Output overload operation

10 minutes at 125% and 60 seconds at 150%

Output voltage tolerance

+/- 1.5 %

UPS topology

Double conversion online

Output frequency

50 Hz sync to mains; 60 Hz sync to mains

Efficiency

View Efficiency Graph

Additional information

UPS weight does not include battery weight.

Maximum short-circuit current

10 kA

Max current discharge

40 A

Battery type

Lead-acid internal

UPS connectivity

Optional network management card 3

Color

White (RAL 9003)

Height

140 cm

Width

38 cm

Depth

90.7 cm

Product weight

71.21 kg

USB compatible

Yes

Provided equipment

Dust filter; Installation guide

Range of product

Easy UPS 3S

Product or component type

Uninterruptible power supply (UPS)

Product certification

CE; EAC; RCM

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…40 °C

Storage altitude

0…15240 m

IP protection

IP20

Relative humidity

0…95 % non-condensing

Storage relative humidity

0…95 % non-condensing

Acoustic level

60 dBA

Heat dissipation

852 W

Operating altitude

0...3281 ft

Battery voltage

240 V

Included battery module

1

Empty battery slot

2

Discharge battery voltage

+/- 198 V DC

Number of Units in Package 1

1

Warranty (in months)

12

HS Code

8504.40
