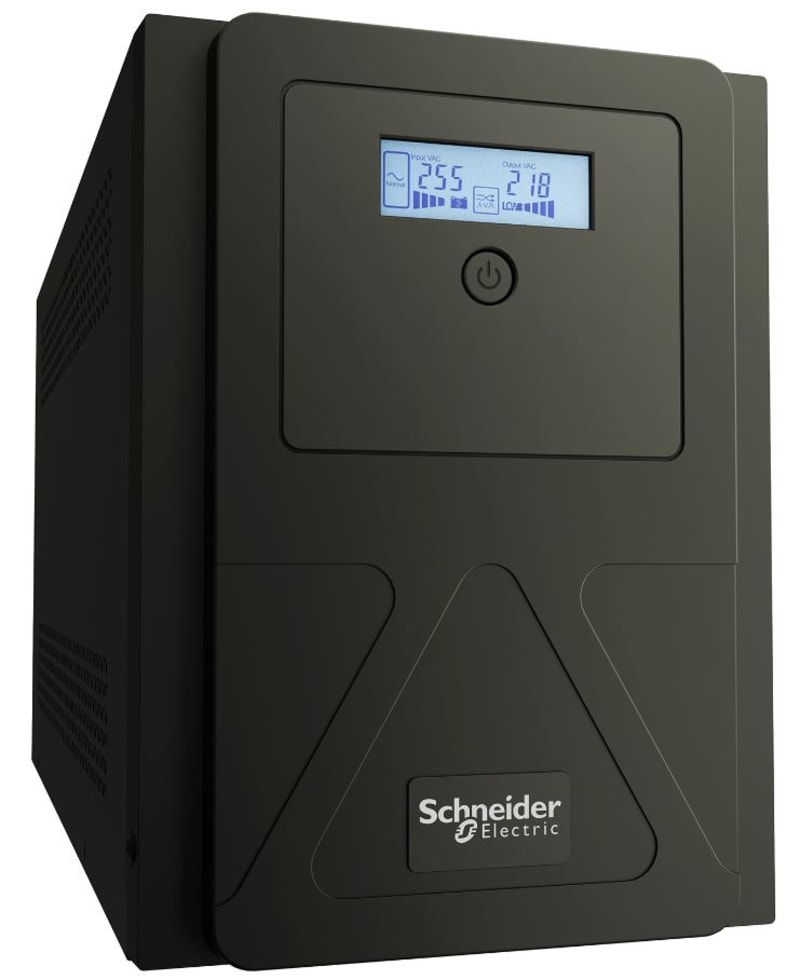

Schneider Electric Easy UPS 1 Ph Line Interactive, 1500VA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, without Network Card support SMVS1500CAI
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SMVS1500CAI Easy UPS SMVS 1,5kVA, Tower, 230V,in: 1x C14, out: 6x C13, USB.
Technical Specifications
- Manufacturer part number (MPN)
- SMVS1500CAI
- EAN / GTIN
- 0731304344339
- Sales unit
- pcs
- Voltage
- 230 V
- Presentation
- EASY UPS Line Interactive is an Uninterruptable Power Supply designed for essential power protection in the most unstable power conditions.
- Main input voltage
- 230 V AC 1 phase
- Other input voltage
- 220 V; 240 V
- Input connection
- IEC 60320 C14
- Efficiency at full load
- 165...290 V
- Input frequency
- 45...65 Hz +/- 1 Hz auto-sensing
- Output voltage
- 230 V AC 1 phase
- Rated power in W
- 1050 W
- Rated power in VA
- 1500 VA
- Output connection
- 6 IEC 60320 C13
- Crest factor
- 3 : 1
- Maximum configurable power in VA
- 1500 VA
- Maximum configurable power in W
- 1050 W
- Transfer time
- 2-6 ms typical : 12 ms maximum
- UPS topology
- Line interactive
- Waveform type
- Its wave
- Output frequency
- 50/60 Hz +/- 1 Hz unsynchronised
- Replacement battery
- APCRBCV207
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Battery capacity
- 10 Ah
- Battery type
- Lead-acid internal included
- Free slot
- 1
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- UPS connectivity
- Serial port; USB port
- Surge energy rating
- 190 J
- Number of cables
- 1
- Color
- Black
- Height
- 220 mm
- Width
- 160 mm
- Depth
- 410 mm
- Product weight
- 17.8 kg
- Mounting support
- Floor-standing
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- Two post mountable
- 0
- USB compatible
- No
- Provided equipment
- Documentation CD; User manual; USB cable
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Easy UPS 1Ph SMVS Series
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; UKCA
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -10…40 °C
- Storage altitude
- 0…15000 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 45 dBA
- Operating altitude
- 0...3000 m
- Battery voltage
- 24 V
- Extendable runtime
- 0
- Included battery module
- 0
- Empty battery slot
- 0
- Typical recharge time
- 4 h
- Battery life
- 3…5 year(s)
- Battery charging power
- 54 W rated
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 4
- Warranty (in months)
- 24
- Country of origin
- China
