Switch 2-St fast pos.
Pricing
Request a quote
We reply within 24 hours
Product Description

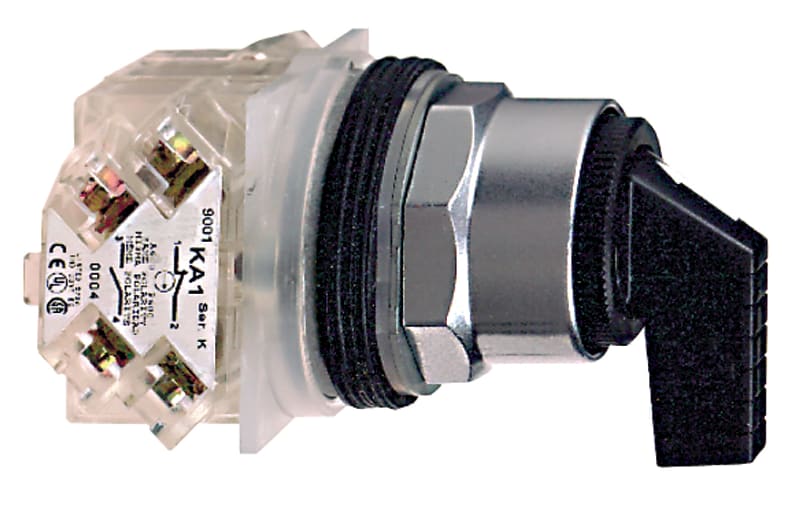

Schneider Electric 9001KS11FB Switch 2-st fast pos.
Technical Specifications
- Manufacturer part number (MPN)
- 9001KS11FB
- EAN / GTIN
- 3389118039902
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Range of product
- Harmony 9001K
- Product or component type
- Head for selector switch
- Device short name
- 9001K
- Type of operator
- stay put
- Operator profile
- Black long handle
- Bezel material
- Metal
- Mounting diameter
- 30 mm
- Product weight
- 0.172 kg
- Shape of signaling unit head
- Octagonal
- Operator position information
- 2 positions
- Contacts type and composition
- Without contact block
- Mechanical durability
- 0.5 Mcycles
- Product compatibility
- 9001KA2, mounted side 1 or 2
- Device presentation
- Basic element
- Cap/operator or lens colour
- Black
- Size
- 30 mm
- Cam profile
- 5
- Protective treatment
- TC
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Overvoltage category
- Class II conforming to IEC 61140
- IP degree of protection
- IP65/IP66
- NEMA degree of protection
- NEMA 1; NEMA 12; NEMA 13; NEMA 2; NEMA 3; NEMA 3R; NEMA 4
- Standards
- CSA C22.2 No 14; IEC 60947-5-4; JIS C 852; IEC 60947-5-1; IEC 60947-1; JIS C 4520; UL 508
- Product certifications
- NEMA; UL 508
- Vibration resistance
- 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 50 gn conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 24
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3389118039902
- SAP 1000257734
- Code 81144403
