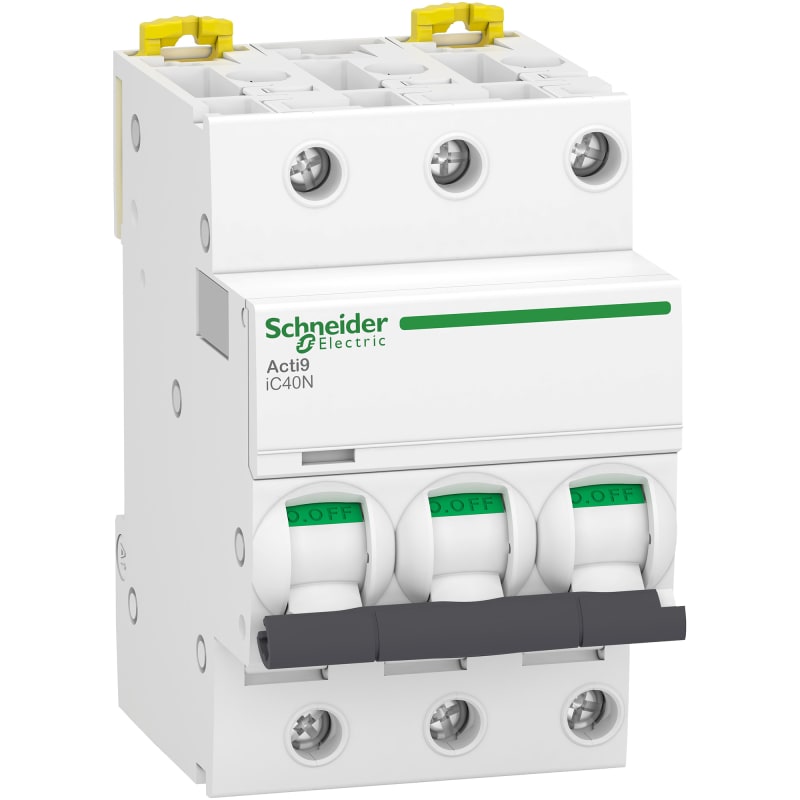

Schneider Electric Miniature circuit breaker (MCB), ACTI9 IC40N, 3P, 20A, C curve, 6000A (IEC/EN 60898-1), 10KA (IEC/EN 60947-2) A9P54320
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9P54320 Acti 9 iC40N miniature circuit breaker 3P C 20A.
Technical Specifications
- Manufacturer part number (MPN)
- A9P54320
- EAN / GTIN
- 3606481325709
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Rated current
- 20 A
- Number of poles
- 3P
- Range
- Acti9
- Product name
- Acti9 iC40
- Product or component type
- Miniature circuit-breaker
- Device short name
- iC40N
- Device application
- Distribution
- Poles description
- 3P
- Number of protected poles
- 3
- [In] rated current
- 20 A
- Network type
- AC
- Trip unit technology
- Thermal-magnetic
- Curve code
- C
- Breaking capacity
- 10 kA Icu at 400 V AC 50/60 Hz conforming to EN/IEC 60947-2; 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2
- Quality labels
- OVE; AENOR
- Network frequency
- 50/60 Hz
- [Ue] rated operational voltage
- 400 V AC 50/60 Hz
- Magnetic tripping limit
- 5...10 x In conforming to EN/IEC 60898-1; 8 x In +/- 20 % conforming to EN/IEC 60947-2
- [Ics] rated service breaking capacity
- 6000 A 100 % x Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1; 7.5 kA 75 % x Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60947-2
- Limitation class
- 3 conforming to EN/IEC 60898-1
- [Ui] rated insulation voltage
- 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 4 kV conforming to EN/IEC 60947-2
- Contact position indicator
- Yes
- Control type
- Toggle
- Local signalling
- ON/OFF indication; Trip indicator
- mounting mode
- Clip-on
- Mounting support
- DIN rail
- 9 mm pitches
- 6
- Height
- 85 mm
- Width
- 54 mm
- Depth
- 74 mm
- Product weight
- 340 g
- Colour
- White
- Mechanical durability
- 20000 cycles
- Electrical durability
- 20000 cycles
- Locking options description
- Padlocking device
- Connections - terminals
- Tunnel type terminals top or bottom 1…10 mm² flexible; Tunnel type terminals top or bottom 1…16 mm² rigid
- Wire stripping length
- 14 mm for top or bottom connection
- Tightening torque
- 2 N.m top or bottom
- Earth-leakage protection
- Separate block
- Standards
- EN/IEC 60898-1; EN/IEC 60947-2
- Product certifications
- CE; BV; RINA; DNV
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
- Pollution degree
- 3 conforming to EN/IEC 60947-2
- Relative humidity
- 95 % at 55 °C
- Operating altitude
- 2000 m
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481325709
- SAP 1200251774
- Code 82236305
Product Documentation
More from Schneider Electric
Schneider Electric

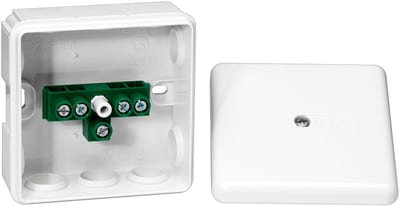

U56 .box white 5P with terminals
IMT34077
Schneider Electric

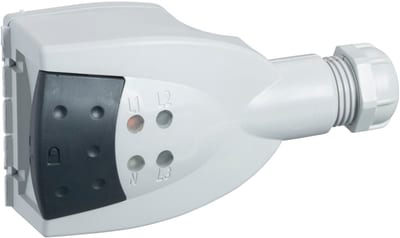

Schneider Electric Canalis - tap-off unit - 10A - phase selection - L+N+PE or L+L+PE KBC10DCB20
Schneider Electric

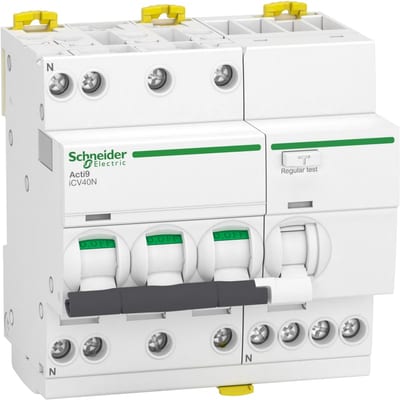

Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40N, 3P+N, 16A, B curve, 6000A, A type, 30MA A9DG3716
Schneider Electric

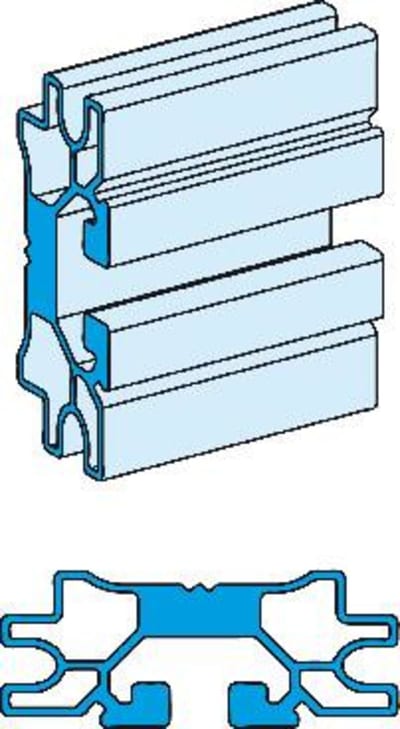

Busbar Horizontal-LinergyLGYE 1000A
LVS04562
Schneider Electric

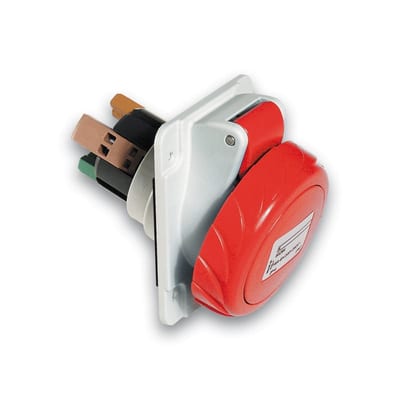

Schneider Electric Socket, Mureva PK, panel-mounted, fast connection, 32A, 3P+E, 400V, IP67 PKY32F734
Schneider Electric

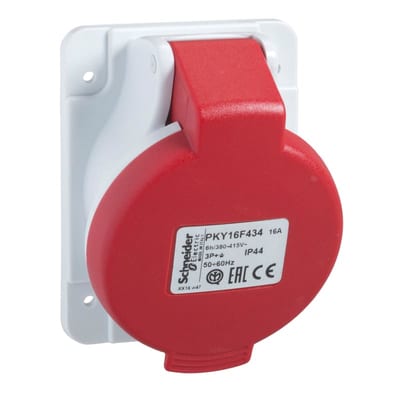

Schneider Electric Socket, Mureva PK, panel-mounted, fast connection, 16A, 3P+E, 400V, IP44 PKY16F434
Schneider Electric

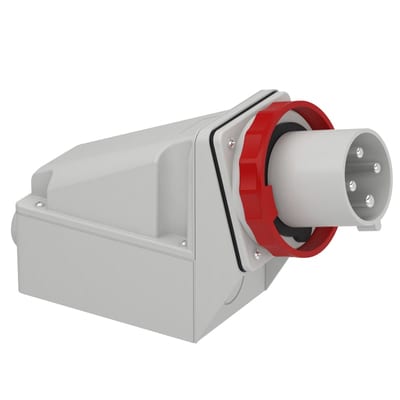

Appliance Inlet wall-mounted 63A 3P+J
