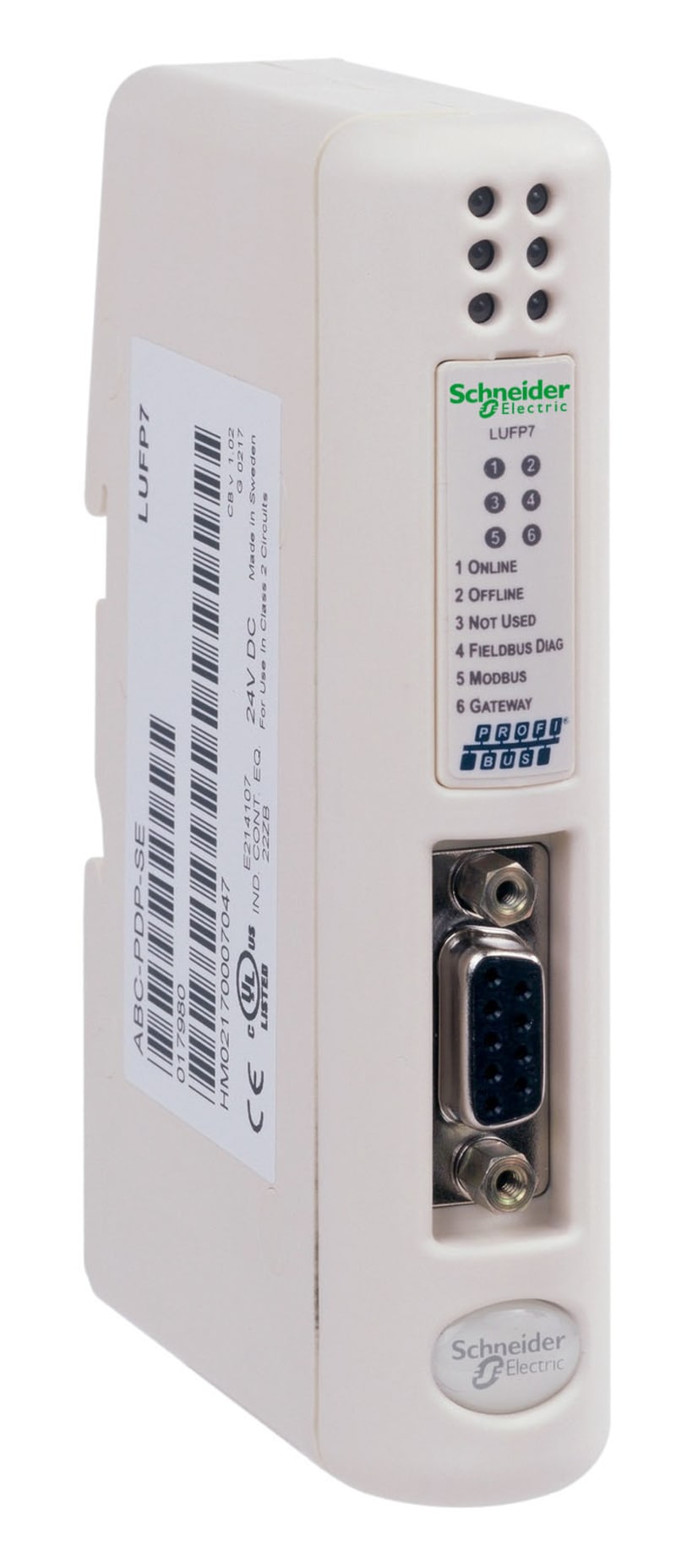

Schneider Electric Profibus DP/Modbus communication gateway - 1 Profibus DP SUB-D9 - 1 RJ45 Modbus LUFP7
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LUFP7 Gateway Profibus/moDBus.
Technical Specifications
- Manufacturer part number (MPN)
- LUFP7
- EAN / GTIN
- 3389110109368
- Sales unit
- pcs
- Package quantity
- 36 pcs
- Range
- TeSys
- Device short name
- LUF
- Product or component type
- Communication gateway
- Product compatibility
- ATV31; ATS48; TeSys U starter-controllers
- Bus type
- Profibus DP; Modbus
- Connector type
- Female SUB-D 9 field bus; RJ45 Modbus; RJ45 to a PC
- Maximum number of connections
- <= 8 Modbus slaves
- [Us] rated supply voltage
- 24 V DC +/- 10 %
- Current consumption
- 100 mA typical; 280 mA maximum
- Local signalling
- LED front panel
- Services
- Command - bus type: Profibus DP - functions available: 122 configurable words; Configuration and adjustment - bus type: Fipio - functions available: by gateway mini messaging facility; Monitoring - bus type: Profibus DP - functions available: 122 configurable words
- Product weight
- 0.245 kg
- Electromagnetic compatibility
- Electromagnetic emission conforming to IEC 50081-2; Electromagnetic immunity conforming to IEC 61000-6-2
- Pollution degree
- 2 conforming to IEC 60664
- Ambient air temperature for installation
- 5…50 °C
- IP degree of protection
- IP20
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 36
- Country of origin
- SE
- Warranty (in months)
- 18
- Supporting protocol for EtherCAT
- No
- Supply voltage DC
- 24 V
- Voltage type (supply voltage)
- DC
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- Yes
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard eGPRS
- No
- Radio standard GSM
- No
- Radio standard LTE
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- System accessory
- No
- Degree of protection (IP)
- IP20
- With potential separation
- Yes
- Fieldbus connection over separate bus coupler possible
- No
- Suitable for rail mounting
- No
- Wall mounting/direct mounting
- No
- Front built-in possible
- Yes
- Rack-assembly possible
- No
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Width
- 27 mm
- Height
- 120 mm
- Depth
- 75 mm
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 3389110109368
- SAP 1000078301
- Code 8569387
Product Documentation
