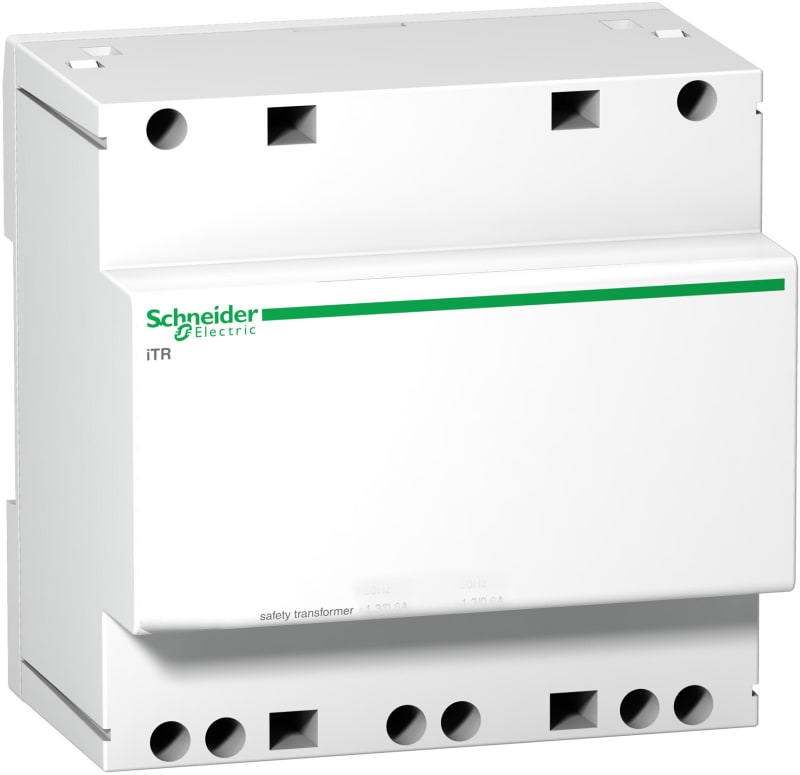

Schneider Electric A9A15220 modular safety transfomer iTR - 230 V 50..60 Hz - output 12..24 V - 40 VA
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric A9A15220 modular safety transfomer iTR - 230 V 50..60 Hz - output 12..24 V - 40 VA is listed under Electrical Components / Modular Devices. Sales unit: pcs; Package quantity: 14 pcs; Transformer type: Safety transformer; Range: Acti9; Range of product: Acti9; Product name: Acti9 iTR.
Technical Specifications
- Manufacturer part number (MPN)
- A9A15220
- EAN / GTIN
- 3606480097829
- Sales unit
- pcs
- Package quantity
- 14 pcs
- Transformer type
- Safety transformer
- Range
- Acti9
- Range of product
- Acti9
- Product name
- Acti9 iTR
- Product or component type
- Transformer
- Device short name
- iTR
- [Ue] rated operational voltage
- 230 V AC 50 Hz
- Output voltage
- 12/24 V: +/-5 % on load; 14/28 V: off load
- Output short-circuit protection
- Built-in
- rated power in VA
- 40 VA
- Temperature derating table
- 40 VA 35 °C; 38 VA 40 °C; 32 VA 50 °C; 24 VA 55 °C; 18 VA 60 °C
- mounting mode
- Fixed
- Mounting support
- 35 mm symmetrical DIN rail
- 9 mm pitches
- 10
- Height
- 89 mm
- Width
- 90 mm
- Depth
- 60 mm
- Colour
- White
- Auxiliary connection terminal
- Tunnel type terminals 4 mm²
- Wire stripping length
- 5 mm
- Tightening torque
- 0.5 N.m
- Standards
- EN 60742; EN 61558-2-6; IEC 61558-2-6
- Product certifications
- NF
- Overvoltage category
- Class II with terminal shields in option
- Ambient air temperature for operation
- -20…55 °C
- Ambient air temperature for storage
- -25…80 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.000 cm
- Package 1 Width
- 9.500 cm
- Package 1 Length
- 9.500 cm
- Package 1 Weight
- 1.202 kg
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 8
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 9.885 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 64
- Package 3 Height
- 45.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 90.080 kg
- Country of origin
- DE
- Warranty (in months)
- 18
- Type of transformer
- Safety transformer
- With on/off switch
- No
- Length
- 60 mm
- Width in number of modular spacings
- 5
- Surface mounting
- No
- Short-circuit protected
- Yes
- Primary voltage
- 230 V
- Secondary voltage 1
- 12 V
- Secondary voltage 2
- 24 V
- Secondary amperage 1
- 3.33 A
- Secondary amperage 2
- 1.7 A
- Temperature protection
- Yes
- Max. power loss
- 4 W
- Flush-mounted installation
- No
