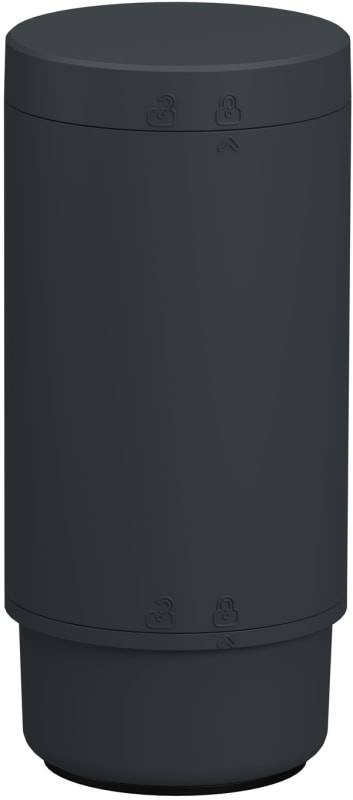

Bunndel with cover in grey, 230VAC

Bunndel for XVB7 lyskolonne in Ø70 mm with adapter and cover in dark grey and 100-240 VAC/120VDC.

Manufacturer part number (MPN)

XVB7C21M

EAN / GTIN

3606487129233

Sales unit

pcs

Package quantity

15 pcs

Voltage

230 V AC

Range of product

Harmony XVB7

Product or component type

Base module

Device composition

Base direct/tube & cover

Device short name

XVB7

Mounting diameter

70 mm

Electrical connection

AC

Communication port protocol

-

fixing mode

Direct or tube fixing

Mounting position

Upright/inverted

Assembly style

Up to 4 Modules (3 lens + 1 sound or 4 lens)

Material

Polycarbonate

Housing colour

Dark grey

Product weight

0.280 kg

[Ue] rated operational voltage

100...240 V AC 50/60 Hz; 120 V DC

Rated operational voltage limits

90...264 V AC

Electrical shock protection class

Class II

Current consumption

3 mA

Output current

230 mA max

Connections - terminals

Spring clamp terminals (push 'n stay), 5 x 0.34...5 x 1.5 mm² with cable end; Spring clamp terminals (push 'n stay), 5 x 0.34...5 x 1.5 mm² without cable end

cable entry

Bottom

[Ui] rated insulation voltage

264 V

[Uimp] rated impulse withstand voltage

2.5 kV

Pollution degree

2

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…70 °C

IP degree of protection

IP66

Environmental Type ratings

UL type 4X/13

Vibration resistance

6 gn, amplitude = +/- 0.5 mm (f = 10…500 Hz)in operation

Shock resistance

30 gn (duration = 6 ms) for in operation

Standards

UL 60947-5-1; IEC 60947-5-1; CSA C22.2 No 60947-5-1

Product certifications

cULus; CCC; RCM; UKCA; CE

Number of Units in Package 1

1

Number of Units in Package 2

15

Number of Units in Package 3

120

Country of origin

DE

Warranty (in months)

18

Suitable for tube mounting

Yes

Suitable for angle mounting

No

Suitable for AS interface

No

Connection type auxiliary circuit

Spring clamp connection

Suitable for M12 connector

No

Suitable for IO link

No

Suitable for floor mounting

Yes

HS Code

8531.90
