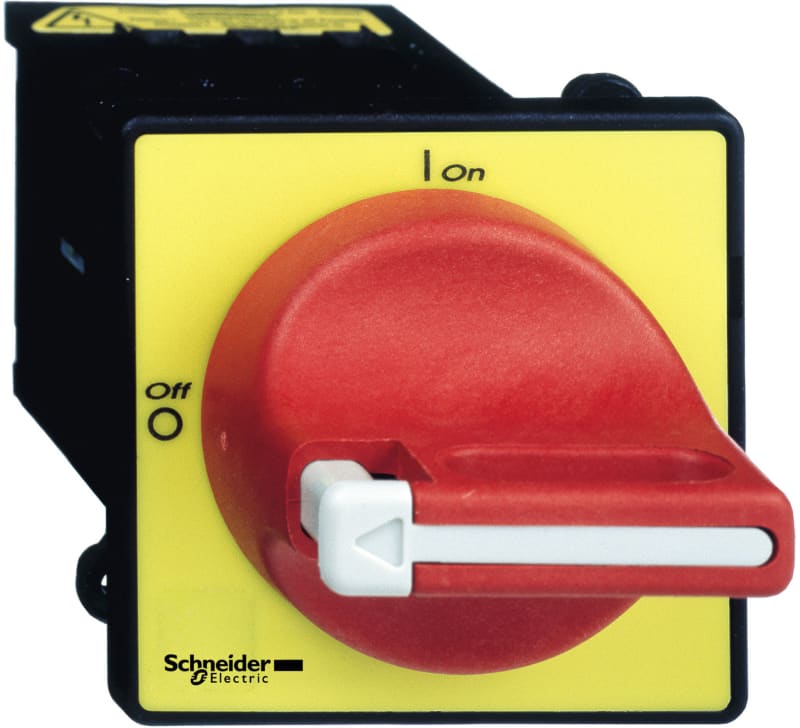

Schneider Electric TeSys Mini-Vario - emergency stop switch disconnector - 20 A - on door VCDN20

Schneider Electric VCDN20 Safety switch Red 20A.

Manufacturer part number (MPN)

VCDN20

EAN / GTIN

3389110759914

HS code

8536.90

Sales unit

pcs

Package quantity

24 pcs

Rated current

20 A

Range

TeSys

Product name

TeSys Mini-VARIO

Device short name

VCDN

Product or component type

Emergency stop switch disconnector

Performance level

Standard

Poles description

3P

Contacts type and composition

3 NO

Network type

DC; AC

Control type

Rotary handle

Rotary handle mounting style

Direct

Handle colour

Red

Handle front plate colour

Yellow

Rotary handle padlocking

1 to 3 padlocks 4…8 mm

Marking

0 - 1

Mounting support

Handle: door; Switch: door

Fixing mode

Hole with 22.5 mm for handle

[Ith] conventional free air thermal current

20 A

[Ithe] conventional enclosed thermal current

16 A

[Ie] rated operational current

11 A (AC-23) at 400 V

Rated operational power in W

4 kW at 230...240 V (AC-23A); 5.5 kW at 400...415 V (AC-23A); 7.5 kW at 500 V (AC-23A); 11 kW at 690 V (AC-23A); 3 kW at 230...240 V (AC-3); 4 kW at 400...415 V (AC-3); 5.5 kW at 500 V (AC-3); 5.5 kW at 690 V (AC-3)

Intermittent duty class

30

Making capacity ( I Rms)

200 A at 400 V AC-21A; 200 A at 400 V AC-22A; 200 A at 400 V AC-23A

[Icm] rated short-circuit making capacity

0.5 kA at 400 V at Ipeak

[Icw] rated short-time withstand Rms current

140 A at 400 V duration: 1 s

Rated conditional short-circuit current

6 kA at 400 V - associated fuse 20 A aM; 6 kA at 400 V - associated fuse 20 A gG

Breaking capacity

200 kA at 400 V (AC-21A); 200 kA at 400 V (AC-22A); 200 kA at 400 V (AC-23A)

Device composition

Handle; Switch

Mechanical durability

50000 cycles

Electrical durability

30000 cycles DC-1...5; 50000 cycles AC-21

Suitability for isolation

Yes

Connections - terminals

Power circuit: screw clamp terminals4 mm² - flexible - with cable end; Power circuit: screw clamp terminals4 mm² - solid

Tightening torque

Power circuit: 0.7 N.m - on screw clamp terminals

handle front plate dimension

60 x 60 mm

Height

60 mm

Width

60 mm

Product weight

0.177 kg

Standards

IEC 60947-3

Product certifications

GL; CSA; UL; CCC; UKCA

Protective treatment

TC

IP degree of protection

IP65

Mechanical robustness

Shocks 11 ms (15 gn) conforming to IEC 60068-2-27; Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6

Country of origin

CZ

Warranty (in months)

18

HS Code

8536.90

• EAN 3389110759914
• SAP 1000032034
• Code 8250128
