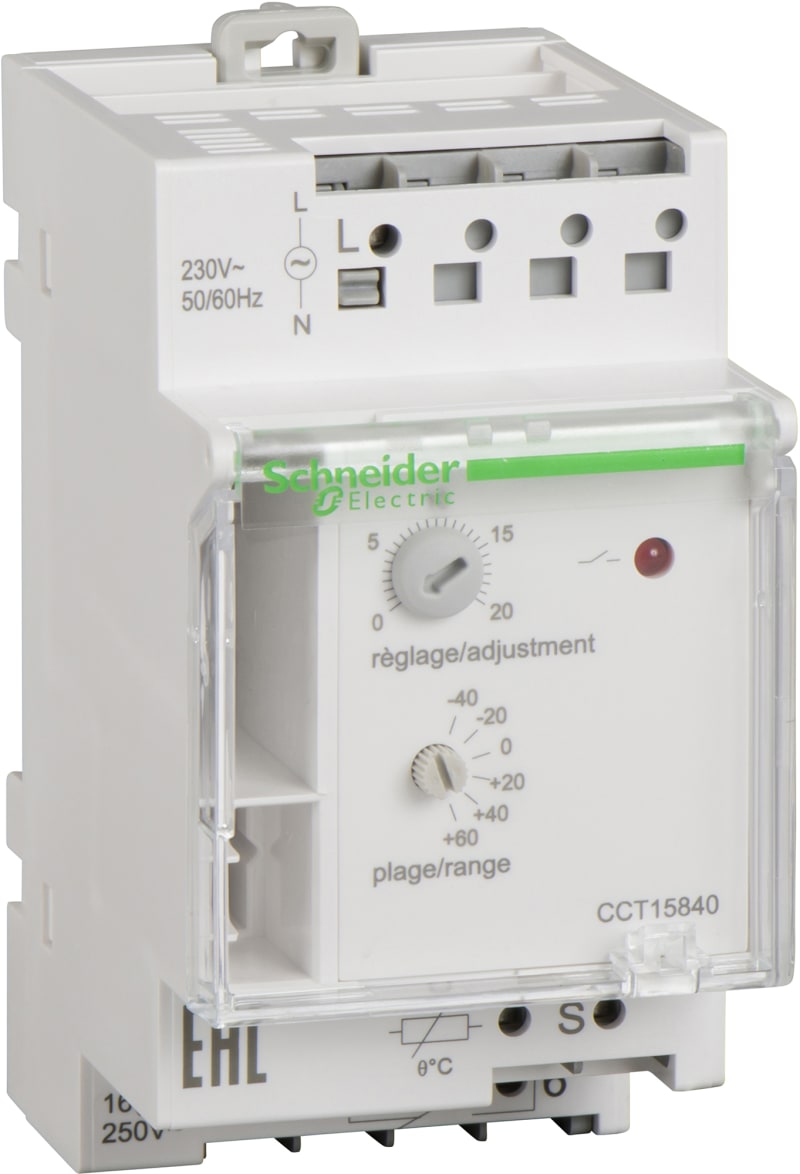

Schneider Electric Acti 9 - TH7 - thermostat - 1 zone - -40 °C to +80 °C CCT15840

Schneider Electric CCT15840 TH7 Mod.term -40Gr for +80Gr.

Manufacturer part number (MPN)

CCT15840

EAN / GTIN

3606480375958

Sales unit

pcs

Package quantity

23 pcs

range of product

Acti9

Product name

Acti9 TH

Product or component type

Thermostat

Device short name

TH7

Number of zones

1

Provided equipment

Supplied without probe

Operating mode

Normal: -40…80 °C

Measurement accuracy

+/- 0.2 °C

Power consumption in VA

4 VA

Maximum switching current

16 A - 250 V pf = 1; 3 A - 250 V pf = 0.6

[Ue] rated operational voltage

230 V AC +/- 10 %

Protection type

Over temperature protection; Over voltage protection against surges

Status LED

Indicator light (red) make position of the output contacts

Mounting support

DIN rail

9 mm pitches

5

Connections - terminals

Screwless terminals 2, cable cross section: 2.5 mm²

Colour tint

White (RAL 9003)

Height

85 mm

Width

45 mm

Depth

65 mm

Standards

EN 60730-2-9

IP degree of protection

IP20

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.300 cm

Package 1 Width

6.000 cm

Package 1 Length

9.800 cm

Package 1 Weight

222.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

23

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

5.600 kg

Country of origin

IT

Warranty (in months)

18

Model

Analogue

Sensor type

Remote sensor

Rated voltage

230 V

Rated frequency

50–60 Hz

Number of channels

1

Text guidance in display

No

24 h program

No

Weekly program

No

Holiday program

No

Adjustment range comfort

-40–80 °C

Automatic switching summer/winter time

No

Operation mode switch

No

Switching preselection

No

Contact type

Change-over contact (NO/NC)

Nominal switching current at 250 V, potential free

16 A

Degree of protection (IP)

IP20

Width in number of modular spacings

2.5

Assembly depth

65 mm

Class of the temperature control

I

Standby power consumption (solstandby)

1 W

HS Code

9032.10
