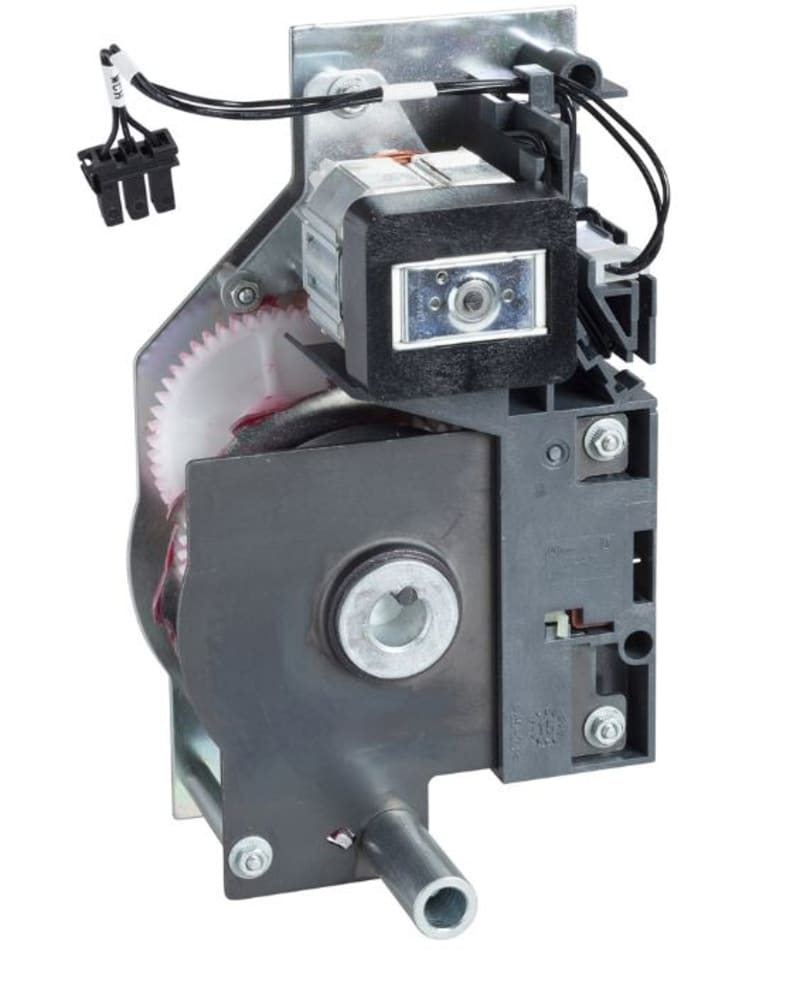

Schneider Electric electric motor MCH, MasterPact MTZ2/MTZ3 fixed version, 200/240 V AC 50/60 Hz LV848212
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV848212 Motor MCH 200/240VAC for Masterpact circuit breaker MTZ2/3 fixed-mounted.
Technical Specifications
- Manufacturer part number (MPN)
- LV848212
- EAN / GTIN
- 3606480804892
- HS code
- 8536.90
- Sales unit
- pcs
- Range
- MasterPact
- Device short name
- MCH
- Product or component type
- Motor mechanism
- Device application
- Control
- Range compatibility
- Masterpact MasterPact MTZ2; Masterpact MasterPact MTZ3
- Control type
- Standard
- mounting mode
- Fixed
- [Uc] control circuit voltage
- 200...240 V AC 50/60 Hz
- Threshold tripping voltage
- 0.85...1.1 Un
- Maximum power consumption in VA
- 180 VA
- Overcurrent protection
- 2...3 x In 0.1 s
- Maximum charging time
- 4 s
- Maximum operating frequency
- <= 3 cycles per minute
- provided contact
- Limit switch contact at 240 V 10 A
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 12.5 cm
- Package 1 Width
- 13.0 cm
- Package 1 Length
- 22.9 cm
- Package 1 Weight
- 1.868 kg
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480804892
- SAP 1200050655
- Code 81878817
