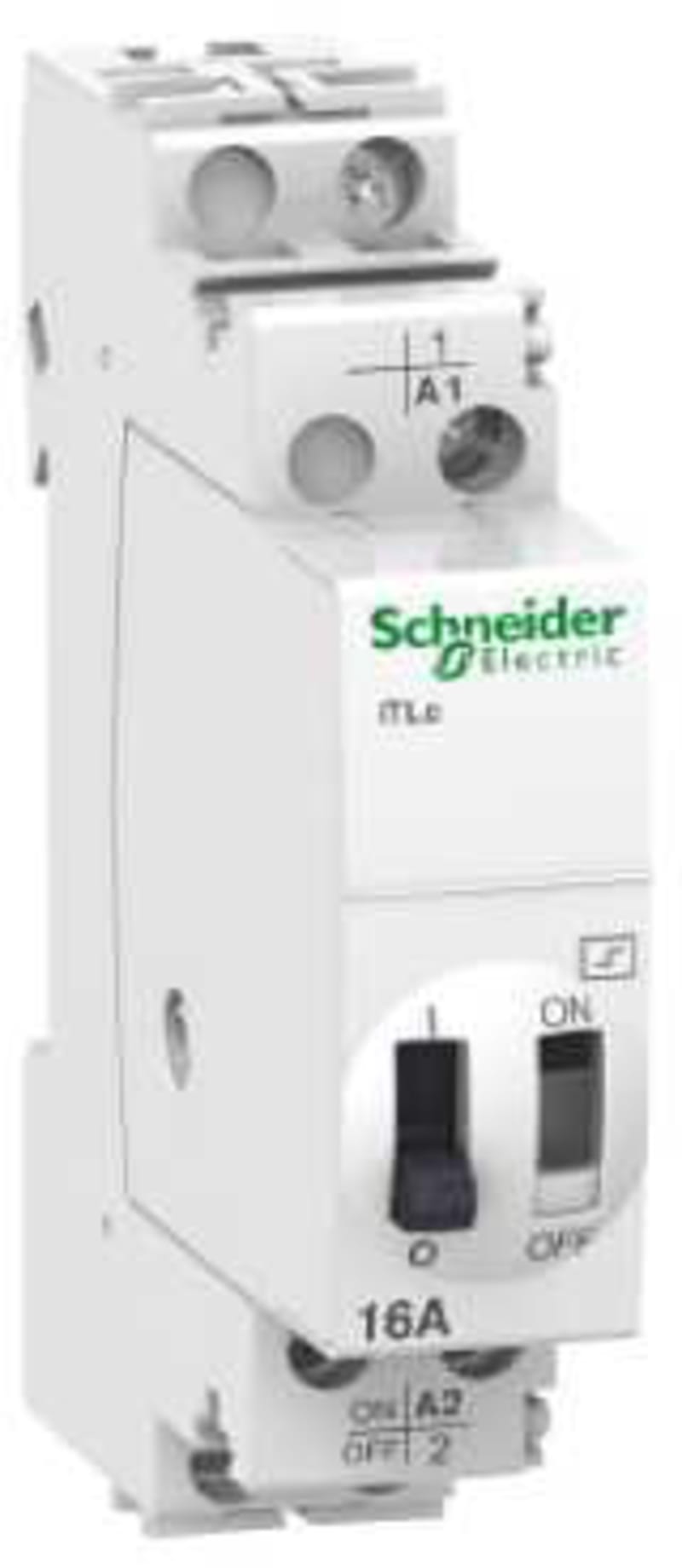

Schneider Electric impulse relay iTLc - 1P - 1NO - 16A - coil 24 VAC 50/60HZ- A9C33111
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9C33111 Impulse relay iTLc 16A 1NO 24VAC.
Technical Specifications
- Manufacturer part number (MPN)
- A9C33111
- EAN / GTIN
- 3606480092091
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Voltage
- 24 V AC
- Rated current
- 16 A
- Contact configuration
- 1 NO
- range of product
- Acti9
- Product name
- Acti9 iTL
- Product or component type
- Impulse relay
- Device short name
- iTLc
- Device application
- Centralised control
- Poles
- 1P
- Pole contact composition
- 1 NO
- [In] rated current
- 16 A
- Network type
- AC
- [Uc] control circuit voltage
- 24 V AC 50/60 Hz
- Network frequency
- 50/60 Hz
- [Ue] rated operational voltage
- 250 V AC 50/60 Hz
- Control type
- Remote and manual control; Coil disconnection
- Control signal type
- Impulse
- Switching frequency
- 100 switching operations/day; 5 switching operations/minute
- Impulse duration
- 50 ms...1 s
- Remote control type
- Push-button
- Local signalling
- ON/OFF indication
- mounting mode
- Fixed
- Mounting support
- DIN rail
- 9 mm pitches
- 2
- Height
- 84 mm
- Width
- 18 mm
- Depth
- 60 mm
- Electrical durability
- AC-21: 200000 cycles; AC-22: 100000 cycles
- Connections - terminals
- Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid; Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid with cable end; Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible; Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible with ferrule; Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid; Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid with cable end; Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible; Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible with ferrule
- Wire stripping length
- 11 mm
- Tightening torque
- 1 N.m
- Range compatibility
- Acti9 iATLs; Acti9 iETL iTL 16; Acti9 iATLc+c
- Standards
- EN 669-2-2; EN 669-1
- Product certifications
- GOST; CCC
- Quality labels
- NF; IMQ; KEMA; CEBEC
- Noise level
- 60 dB
- IP degree of protection
- IP20 conforming to IEC 60529 (on opening); IP40 conforming to IEC 60529 (in enclosure)
- Pollution degree
- 3
- Tropicalisation
- 2
- Relative humidity
- 95 % at 55 °C
- Ambient air temperature for operation
- -20…50 °C
- Ambient air temperature for storage
- -40…70 °C
- Warranty (in months)
- 18
- Mounting method
- DIN rail
- Function
- Mechanical for centralized control
- Built-in depth
- 43.5 mm
- Width in number of modular spacings
- 1
- Control voltage 1
- 24 V
- Type of control voltage 1
- AC
- Type of control voltage 2
- AC
- Frequency control voltage 1
- 50–60 Hz
- Suitable for manual operation
- Yes
- Voltage type (supply voltage)
- AC
- Supply voltage
- 24–250 V
- Max. switching current (cos phi = 0.6)
- 16 A
- Max. incandescent lamp load
- 1600 W
- Max. load fluorescent lamp
- 1300 VA
- Rated switch current
- 16 A
- Number of contacts as normally open contact
- 1
- Country of origin
- Belgium
