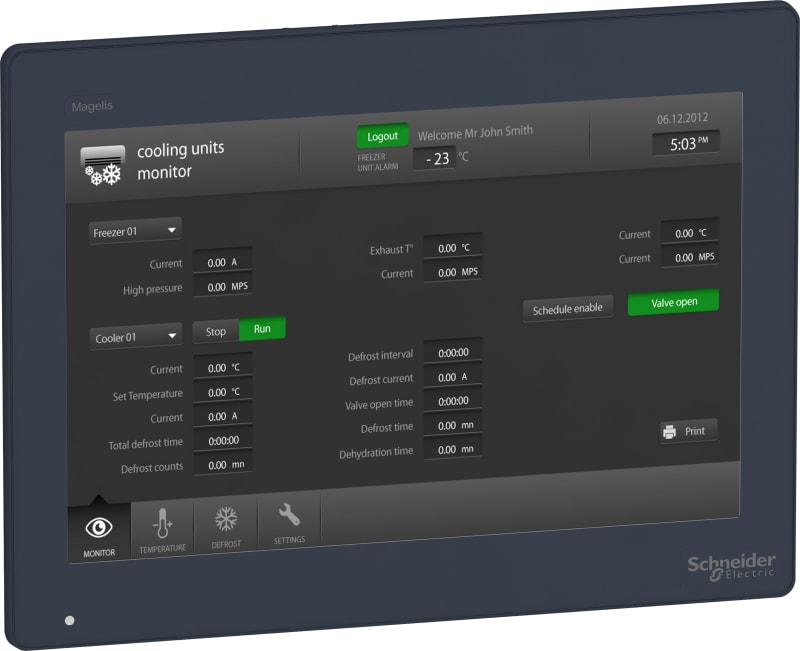

Schneider Electric 12W Touch Advanced Display WXGA HMIDT651

Schneider Electric HMIDT651 HMIGTU 12"W advanced display ST,1200*800.

Manufacturer part number (MPN)

HMIDT651

EAN / GTIN

3606480687266

Sales unit

pcs

Range of product

Harmony GTU

Terminal type

Touchscreen display

Product or component type

Advanced touchscreen panel

[Us] rated supply voltage

12...24 V DC power supply

Supply voltage limits

10.8…28.8 V

Power consumption in W

11.5 W

Inrush current

30 A

Touchscreen resolution

1024 x 1024

Pixel resolution

1280 x 800

Display size

12.1 inch

Aspect ratio

4:3

Display type

Colour TFT LCD

Display resolution

1280 x 800 pixels WVGA

Display colour

262144 colors

Backlight lifespan

50000 hours

Touch panel

Single touch analogue resistive

Type of cooling

Natural convection

Type of installation

Indoor installation

Cut-out dimensions

295 (+ 1/- 0) x 217 (+ 1/- 0) mm

Width

308.5 mm

Height

230.5 mm

Depth

67 mm

Product weight

3 kg

IP degree of protection

Front panel: IP66; Front panel: IP67

NEMA degree of protection

NEMA 4X front panel

Standards

UL 508; ANSI/ISA 12-12-01; Class I division 2 CSA C22.2 No 213; CSA C22.2 No 142; IEC 61132-2

Product certifications

CULus; KC; CE; RCM; UKCA; UKEX

Ambient air temperature for operation

0…60 °C conforming to IEC 61131-2

Ambient air temperature for storage

-20…60 °C

Relative humidity

10…90 % non-condensing

Operating altitude

2000 m

Vibration resistance

3.5 mm constant amplitude (f = 5…9 Hz) conforming to IEC 61131-2; 9.8 m/s² (f = 9…150 Hz) conforming to IEC 61131-2

Shock resistance

147 m/s² conforming to IEC 61131-2

Electromagnetic compatibility

Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

19.500 cm

Package 1 Width

33.500 cm

Package 1 Length

44.000 cm

Package 1 Weight

4.415 kg

Unit Type of Package 2

BB1

Number of Units in Package 2

2

Package 2 Height

42.500 cm

Package 2 Width

35.500 cm

Package 2 Length

45.500 cm

Package 2 Weight

9.745 kg

Unit Type of Package 3

P12

Number of Units in Package 3

20

Package 3 Height

105.000 cm

Package 3 Width

80.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

113.450 kg

Country of origin

CN

Warranty (in months)

18

Power consumption

11.5 W

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

DC

With SW interfaces

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Type of display

TFT

Colour display

Yes

Number of colours of the display

262144

Number of grey-scales/blue-scales of display

262144

Screen diagonal

12 inch

Number of pixels, horizontal

1280

Number of pixels, vertical

800

With numeric keyboard

No

With alpha numeric keyboard

No

Touch technology

Resistive touch

With touch screen

Yes

With message indication

No

With message system (incl. buffer and confirmation)

No

Process value representation (output) possible

No

Process default value (input) possible

No

With recipes

No

With printer output

No

Additional software components, loadable

No

Degree of protection (IP), front side

IP67

Suitable for rail mounting

No

Wall mounting/direct mounting

No

HS Code

8528.59

• EAN 3606480687266
• SAP 1000641234
