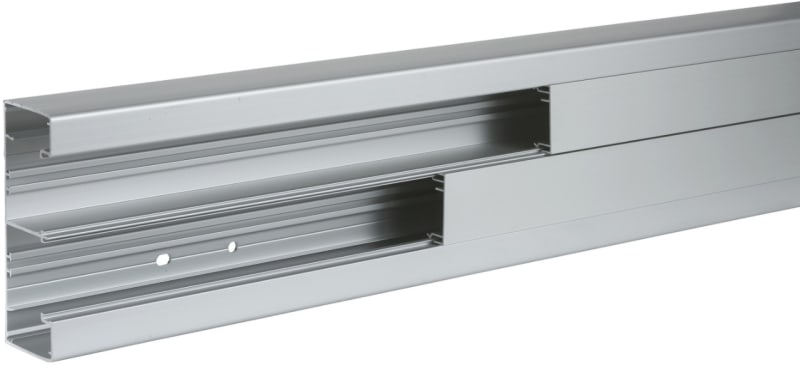

Schneider Electric OptiLine 45 - installation trunking -140X55 mm - aluminium - natural - 2000 mm ISM10350
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ISM10350 OptiLine 45 two-compartment wall trunking with front cover 140x55 mm, L=2 m, anodised aluminium, halogen-free - 1 pc.
Technical Specifications
- Manufacturer part number (MPN)
- ISM10350
- EAN / GTIN
- 7332418013543
- Sales unit
- m
- Package quantity
- 12 m
- Range of product
- OptiLine 45
- Cabling installation system
- Trunking
- Product or component type
- Installation trunking
- Colour tint
- Natural
- Quantity per set
- 6 m
- Market segment
- Small commercial; Residential
- Trunking material
- Aluminium
- Trunking dimension
- 140 x 55 mm
- Compartment partitioning
- 2 compartments
- Mounting location
- Internal
- fixing mode
- By screws
- Front opening size
- 45 mm
- Material
- Aluminium anodized
- Length
- 2000 mm
- Height
- 140 mm
- Width
- 55 mm
- Standards
- 73/23/EEC; 93/68/EEC; EN 50085-1:2005; EN 50085-2-1:2002
- Ambient air temperature for operation
- -25…60 °C
- IP degree of protection
- IP30
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 45
- Warranty (in months)
- 18
- EAN
- 3606480028021
- Depth
- 55 mm
- Number of covers
- 2
- Covers included
- Yes
- Cover width 1
- 45 mm
- Cover width 2
- 45 mm
- Symmetric
- Yes
- Construction type rectangular
- Yes
- Halogen free
- Yes
- Anti-bacterial treatment
- No
- Surface protection
- Anodised
- Colour
- Aluminium
- Construction rear wall (inner side)
- Continuous other profile
- With protective foil
- Yes
- Number of plug-in partitions
- 2
- With duct connector
- No
- Bottom perforation
- Yes
- Mounting method cover
- Inner lying
- With cable fixing clip
- No
- Usable cross section
- 6606 mm²
- Degree of protection (IP)
- IP40
- Impact strength
- IK07
- Operating temperature
- -5–60 °C
- Country of origin
- Denmark
