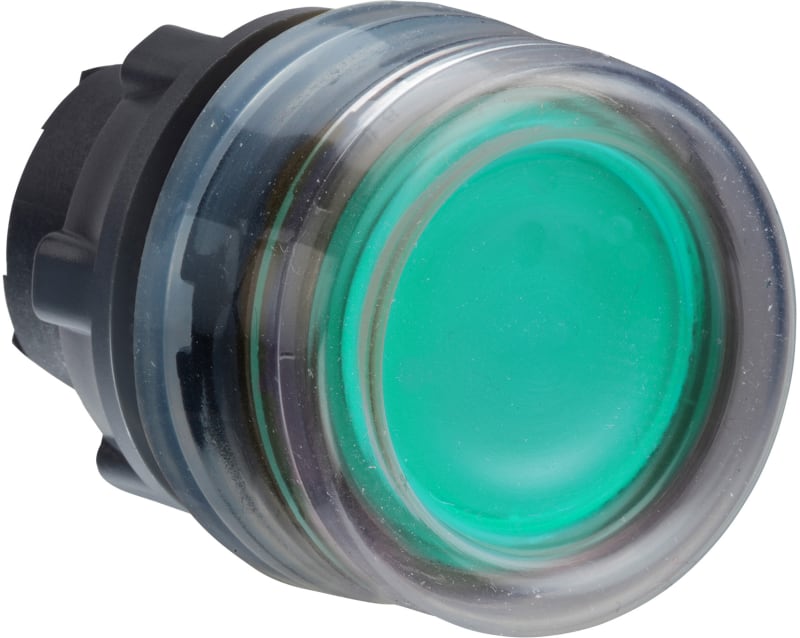

Illuminated Push-Button Head with Boot Green LED (ZB5AW533)

Schneider Electric ZB5AW533 illuminated push-button with boot, green LED.

Manufacturer part number (MPN)

ZB5AW533

EAN / GTIN

3389110924046

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB5

Product or component type

Head for illuminated push-button

Device short name

ZB5

Product compatibility

Universal LED

Bezel material

Dark grey plastic

Mounting diameter

22 mm

Sale per indivisible quantity

1

Head type

Standard

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Green flush, unmarked

Operator additional information

Clear boot

CAD overall width

30 mm

CAD overall height

30 mm

CAD overall depth

37 mm

Product weight

0.019 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mechanical durability

10000000 cycles

Station name

XALD 1...5 cut-outs; XALK 2...5 cut-outs

Cap/operator or lens colour

Green

Marking

Unmarked

Electrical composition code

M1 for <6 contacts using single blocks in front mounting with integral LED; M2 for <6 contacts using single and double blocks in front mounting with integral LED; M6 for <2 contacts using single blocks in front mounting with integral LED and transformer; M10 for <2 contacts using single blocks in front mounting with integral LED; MF1 for <2 contacts using single blocks in front mounting with integral LED; MR1 for <2 contacts using single blocks in rear mounting with integral LED

Device presentation

Basic sub-assemblies

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67

Enclosure Type

UL type 4X/13

IK degree of protection

IK05 conforming to IEC 62262

Standards

JIS C8201-5-1; IEC 60947-1; CSA C22.2 No 14; UL 508; IEC 60947-5-4; GB 14048.5; IEC 60947-5-1; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.0 cm

Package 1 Width

4.8 cm

Package 1 Length

2.6 cm

Package 1 Weight

20.0 g

Unit Type of Package 2

S03

Number of Units in Package 2

300

Package 2 Height

30 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

6.671 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Green

Suitable for lighting

Yes

Number of command positions

1

Spring-return

Yes

Labelled

No

Type of button

Flat

Colour front ring

Black

Degree of protection (IP), front side

IP66

With protective cover

No

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Switching function latching

No

HS Code

8538.90

• EAN 3389110924046
• SAP 1000045229
• Code 8826983
