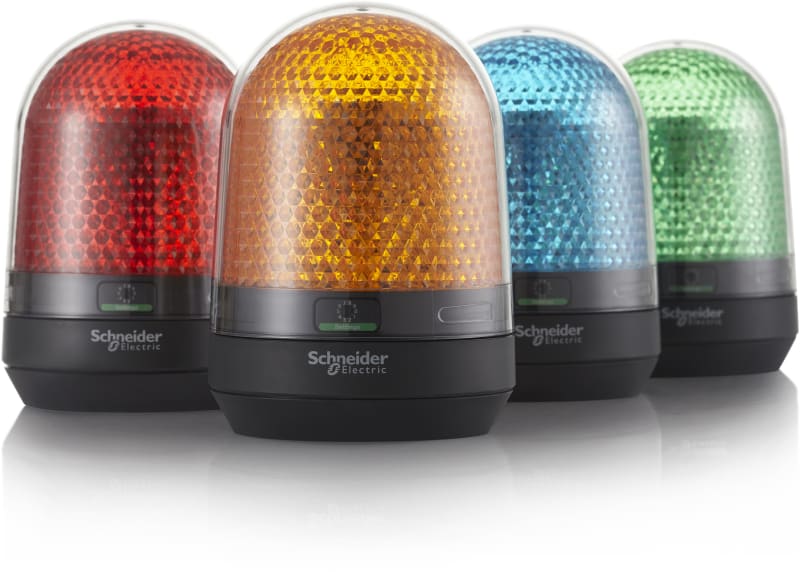

Warning Lamp with Buzzer AC Blue
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XVR3M06S Harmony XVR3 Varsellamper.
Technical Specifications
- Manufacturer part number (MPN)
- XVR3M06S
- EAN / GTIN
- 3606480611919
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range of product
- Harmony XVR
- Product or component type
- Beacon
- Device short name
- XVR3
- Beacon or indicator bank unit type
- LED unit
- Sound signalling
- Buzzer: 70…90 dB at 1 m
- Mounting diameter
- 100 mm
- Light source
- LED, blue
- Device application
- Automated guided vehicle (AGV); Forklift; Bulldozer
- Signalling type
- Blinking; Rotating; Flashing
- Assembly style
- Ready assembled
- Material
- PC (polycarbonate): lenses; PBT (polybutylene terephthalate) + PC (polycarbonate): body; EPDM (ethylene propylene diene monomer): base
- [Us] rated supply voltage
- 100...230 V AC
- [Ue] rated operational voltage
- 90...253 V AC
- Inrush current
- 0.5 A
- Power consumption in W
- 3.2 W
- Marking
- CE
- Installation direction
- Upright indoor; Sideways indoor; Inverted indoor; Upright outdoor
- Electrical insulation class
- Class II
- Current consumption
- 500 mA
- Length
- 100 mm
- Width
- 100 mm
- Height
- 139 mm
- Product weight
- 0.538 kg
- Product certifications
- CCC
- Ambient air temperature for operation
- -10…50 °C
- Ambient air temperature for storage
- -20…70 °C
- Relative humidity
- 35…85 % without condensation
- Vibration resistance
- 4.6 gn (sideways); 4.6 gn (inverted); 4.6 gn (upright)
- IP degree of protection
- IP23 (sideways); IP23 (inverted); IP23 (upright)
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 18.100 cm
- Package 1 Width
- 13.600 cm
- Package 1 Length
- 13.600 cm
- Package 1 Weight
- 680.000 g
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 8
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 6.446 kg
- Country of origin
- CN
- Warranty (in months)
- 18
- Nominal voltage
- 230 V
- Type of current
- AC
- Degree of protection (IP)
- IP23
- Colour of lamp hood
- Blue
- Lamp type
- LED
- Optics
- Mirror
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3606480611919
- SAP 1000704512
- Code 8185092
Product Documentation
More from Schneider Electric
Schneider Electric
Current Transformer 2000/5 Rail 38X127
METSECT5DB200
Schneider Electric
Step Switch 4 Steps + 0, 1-Pole
K10D004QCH
Schneider Electric
Schneider Electric Solid state panel mount relay, 25 A, DC switching, thermal pad, input 3.5...32 V DC, output 1…150 V DC SSP1D425BDT
Schneider Electric
Buzzer 80 DB PERM/PULS 120 V
XB5KSG
Schneider Electric
Schneider Electric Self-adhesive base, Thorsman installation material, 3.6mm tie width maximum, clear IMT46450
Schneider Electric
Schneider Electric Rack PDU 2G, Metered, ZeroU, 16A, 230V
AP8858EU3
Schneider Electric
Schneider Electric ISM10951 OptiLine 45 Joint Cover 75-185 mm PC/ABS Aluminium
Schneider Electric
Schneider Electric PratiKa socket - fast - angled - 16A - 2P + E - 200...250 V AC - wall PKY16W423
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XVR3M06S?
- XVR3M06S can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is XVR3M06S.
- What is the HS code for XVR3M06S?
- The customs tariff (HS) code for XVR3M06S is 8531.80.
- Who manufactures XVR3M06S?
- XVR3M06S is a Schneider Electric product in the Control & Automation range.
- Is a datasheet available for XVR3M06S?
- Yes — the XVR3M06S datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XVR3M06S?
- The minimum order quantity is 1.
- Is XVR3M06S available?
- Yes — XVR3M06S is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
