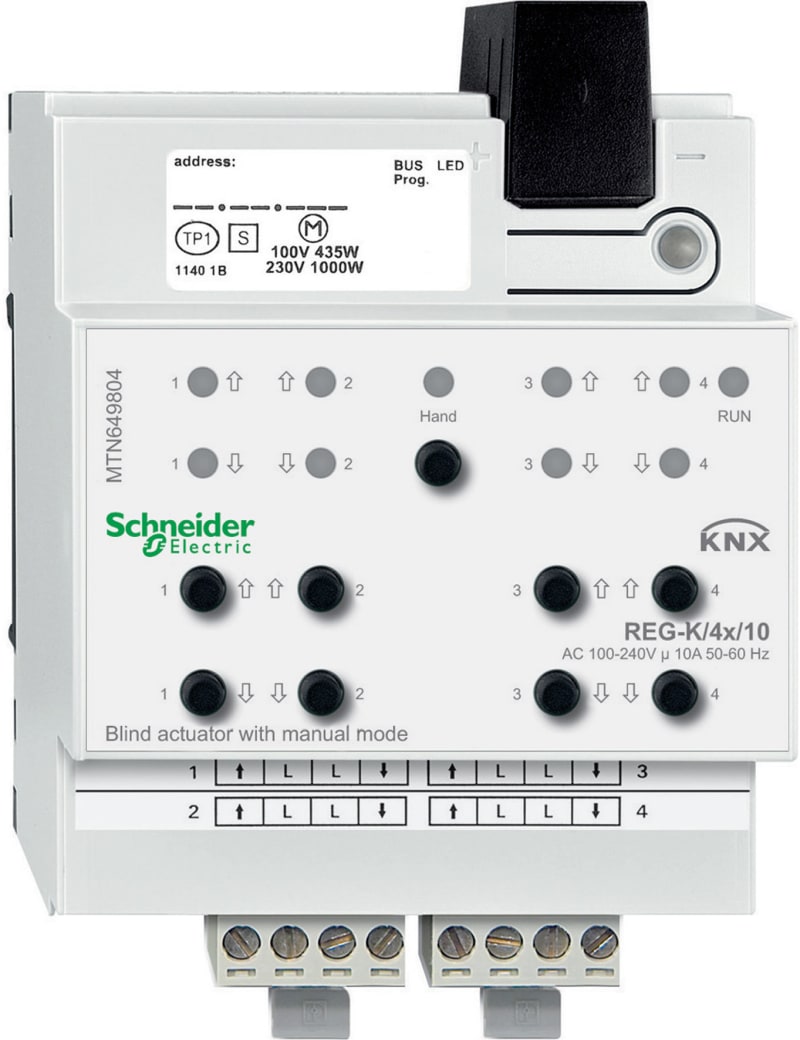

Schneider Electric Blind actuator REG-K/4X/10 with manual mode, light grey MTN649804

Schneider Electric MTN649804 KNX persienne output 4X10A.

Manufacturer part number (MPN)

MTN649804

EAN / GTIN

3606485011998

Sales unit

pcs

Package quantity

10 pcs

Range

SpaceLogic KNX

Product or component type

Blind actuator

Bus type

KNX

Operating mode

Manual; KNX bus system

Mounting support

DIN rail

[Ue] rated operational voltage

100...240 V AC 50...60 Hz

[In] rated current

10 A

Number of outputs

4

Load type

Motor: 434 W, 100 V AC; Motor: 1000 W, 230 V AC; Motor: 1043 W, 240 V AC

Local signalling

LED

Colour tint

Light grey

total number of 18 mm modules

4

IP degree of protection

IP20

Power supply input current

12.5 mA

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.000 cm

Package 1 Width

12.500 cm

Package 1 Length

16.000 cm

Package 1 Weight

385.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

10

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

4.166 kg

Country of origin

DE

Warranty (in months)

18

Other bus systems

None

Mounting method

DRA (DIN-rail adaptor)

Width in number of modular spacings

4

Switching current (resistive)

10 A

Max. switching power

1000 W

Max. number of venetian-blind outputs

4

Type of current

AC

Degree of protection (IP)

IP20

HS Code

8536.49

• EAN 3606485011998
• SAP 1000325194
• Code 8725114
