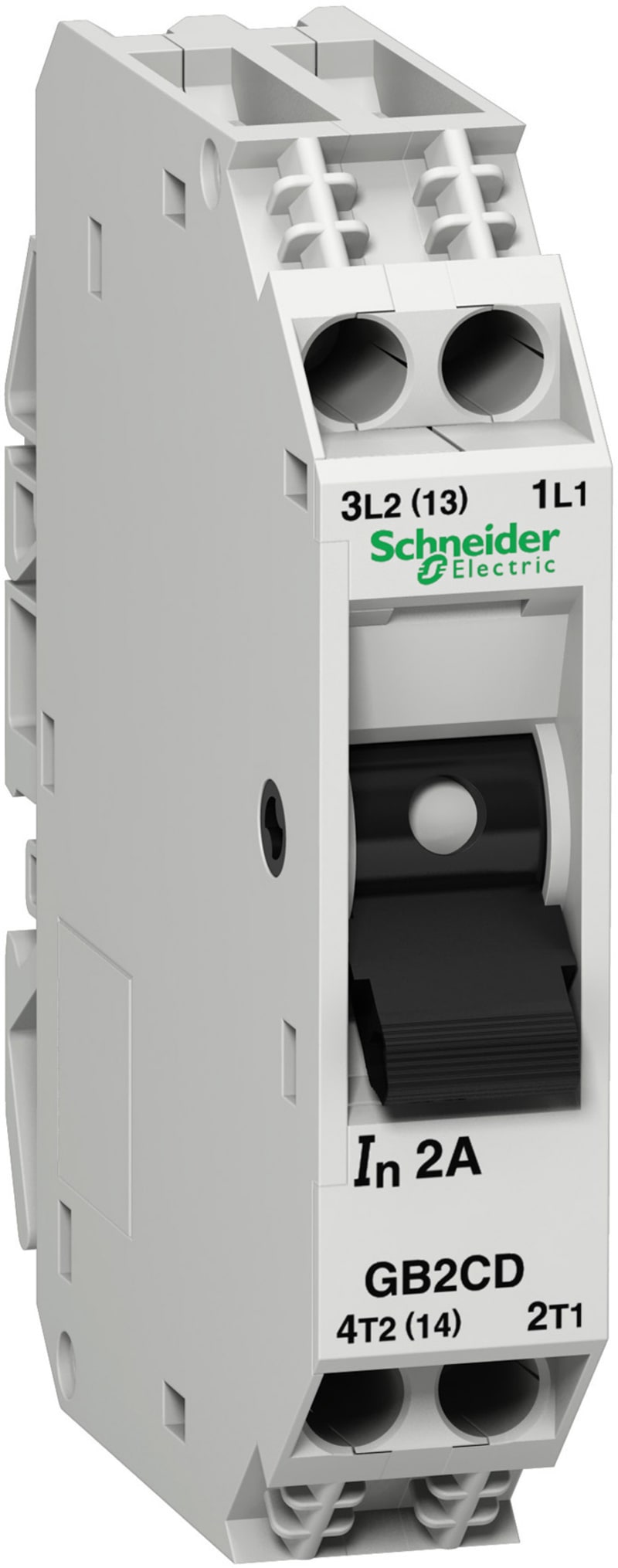

Schneider Electric Thermal magnetic circuit breaker, TeSys GB2, 1P+N, 6 A, Icu 1.5 kA@240 V GB2CD12

Schneider Electric GB2CD12 Fuse Aut Control current 2P 6A.

Manufacturer part number (MPN)

GB2CD12

EAN / GTIN

3389110214932

HS code

8536.90

Sales unit

pcs

Package quantity

6 pcs

Range

TeSys

Product name

TeSys GB2

Device short name

GB2

Product or component type

Circuit breaker

Device application

Control

Poles description

1P + N

Network type

AC/DC

Utilisation category

Category A conforming to IEC 60947-2; DC-12 conforming to IEC 60947-5-1; DC-13 conforming to IEC 60947-5-1

Network frequency

50/60 Hz conforming to IEC 60947-2

Breaking capacity

1.5 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2

[Ics] rated service short-circuit breaking capacity

75 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2

Trip unit technology

Thermal-magnetic

Magnetic tripping current

83 A

mounting mode

By clips

Mounting support

Plate; Rail

Mounting position

Horizontal; Vertical

Control type

Toggle

[In] rated current

6 A

[Ue] rated operational voltage

250 V AC 50/60 Hz conforming to IEC 60947-2; 277 V AC 60 Hz conforming to CSA C22.2 No 235; 277 V AC 60 Hz conforming to UL 1077; 48 V DC

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-2

Power dissipation per pole

2 W

Mechanical durability

8000 cycles

Electrical durability

8000 cycles

Connections - terminals

Connector 1 cable(s) 0.75…6 mm²solid without cable end; Connector 2 cable(s) 0.75…4 mm²solid without cable end; Connector 1 cable(s) 0.75…4 mm²flexible with cable end; Connector 2 cable(s) 0.75…2.5 mm²flexible with cable end

Tightening torque

1.2 N.m on connector

Mechanical robustness

Shocks: 22 Gn for 20 ms conforming to IEC 60068-2-27; Vibrations: 5 Gn, 5...110 Hz conforming to IEC 60068-2-6

Quantity per set

Set of 6

9 mm pitches

2

Height

74 mm

Width

15 mm

Depth

67 mm

Product weight

0.07 kg

Standards

EN/IEC 60947-1; EN/IEC 60947-2; CSA C22.2 No 235; UL 1077

Product certifications

UL; CSA

Protective treatment

TC

IP degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20…60 °C

Ambient air temperature for storage

-40…80 °C

Fire resistance

960 °C conforming to IEC 60695-2-1

Operating altitude

3000 m

Number of Units in Package 1

1

Number of Units in Package 2

6

Number of Units in Package 3

72

Country of origin

FR

Warranty (in months)

18

HS Code

8536.90
