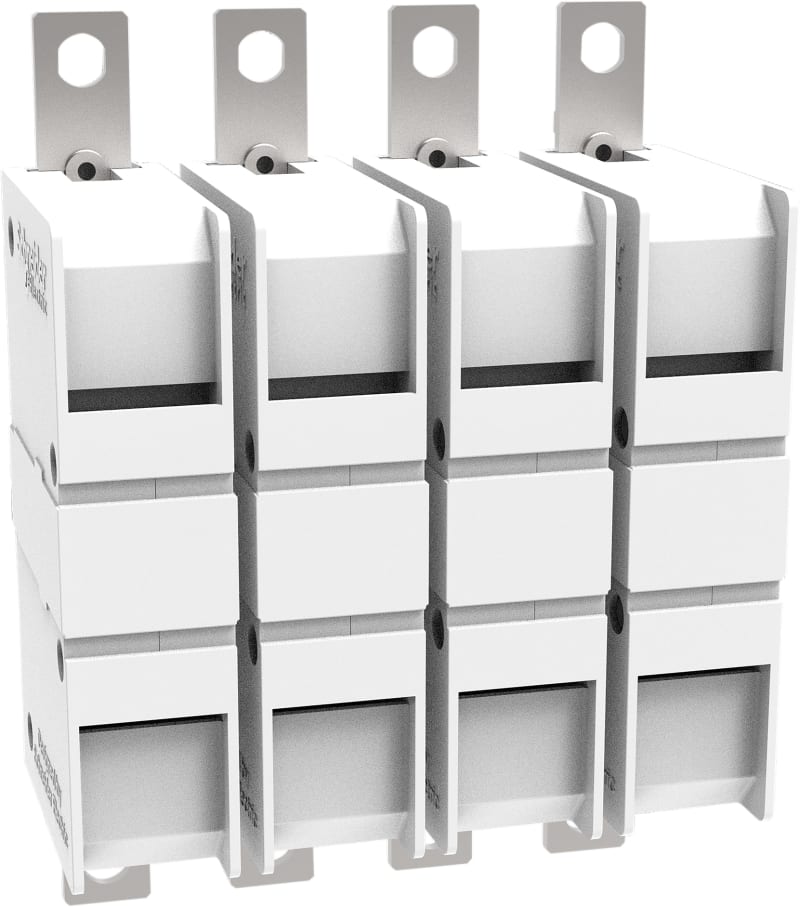

Contact set 4P LC1G115-225
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LA9G4QA Contact Set 4-pole kit for TeSys G115-225.
Technical Specifications
- Manufacturer part number (MPN)
- LA9G4QA
- EAN / GTIN
- 3606481915948
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Number of poles
- 4P
- Range
- TeSys
- Device short name
- LA9G
- Product or component type
- Switch module
- Quantity per set
- Set of 4
- Product compatibility
- LC1G115...225
- Accessory / separate part type
- Kit
- Maximum [Ie] rated operational current
- 330 A AC-1 <= 440 V at 40 °C
- Poles description
- 4P
- Connections - terminals
- Bolted connection
- Height
- 127.5 mm
- Width
- 284 mm
- Depth
- 272 mm
- Product weight
- 11.3 kg
- Pollution degree
- 3 conforming to IEC 60947-1
- Operating altitude
- 3000 m without power derating; 5000 m with derating factor
- Standards
- EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; GB/T 14048.4
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -60…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 4
- Country of origin
- CN
- Warranty (in months)
- 18
- Type of accessory/spare part
- Connection technique
- Accessory
- Yes
- Spare part
- Yes
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606481915948
- SAP 1200587811
- Code 82974648
Product Documentation
More from Schneider Electric
Schneider Electric
LED module uni 230VAC push-in
ZBVM15
Schneider Electric
CYB-MF2H Frame 2 Module White
5971175
Schneider Electric
Schneider Electric One asymmetric mounting rail 32X15 L 2000mm Supply: 20 NSYADR200
Schneider Electric
NG125L/B 32-3 Modular Powerbr
18763
Schneider Electric
Connection Box 80X80X45 Grey DIY
ENN05124
Schneider Electric
FED-SSJ Joint piece (5440810)
Schneider Electric
Schneider Electric Thermal magnetic circuit breaker, TeSys GB2, 1P+N, 6 A, Icu 1.5 kA@240 V GB2CD12
Schneider Electric

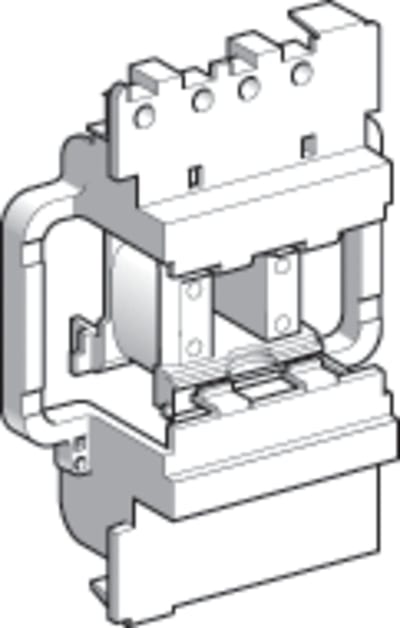

Coil 110V 50Hz LC1D40-D95
