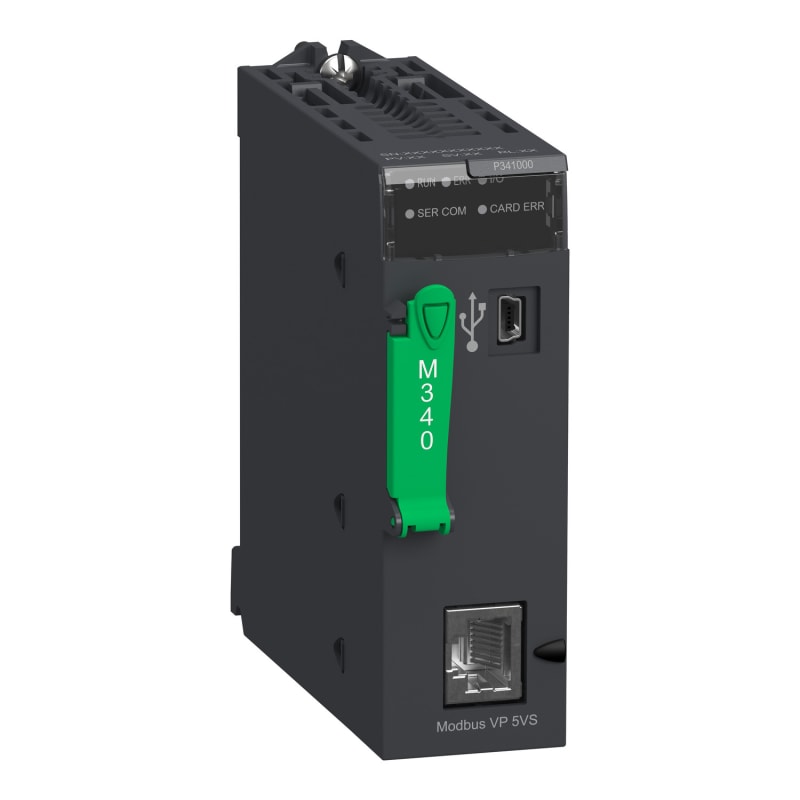

Schneider Electric processor module M340 - max 512 discrete + 128 analog I/O - Modbus BMXP341000

Schneider Electric BMXP341000 M340 CPU 1 Rack, 512 Digitale,128 Analoge, Modbus.

Manufacturer part number (MPN)

BMXP341000

EAN / GTIN

3595863910698

Sales unit

pcs

Package quantity

10 pcs

Range of product

Modicon M340 automation platform

Product or component type

Processor module

Concept

Modbus

Number of racks

2

Local I/O processor capacity (discrete)

512 I/O

Analogue I/O processor capacity

128 I/O

Number of application specific channel

20

Monitoring

Diagnostic counters Modbus; Event counters Modbus

Control channels

Programmable loops

Integrated connection type

Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS232C, transmission mode: 2 twisted shielded pairs at 0.3...19.2 kbit/s full duplex; Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex; Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS232C, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex; Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex; USB port at 12 Mbit/s

Communication module processor capacity

2 Ethernet communication module; 2 AS-Interface module

Number of devices per segment

0…32 (character mode); 0…32 (Modbus)

Number of devices

2 point-to-point character mode; 2 point-to-point Modbus

Bus length

0…10 m serial link non isolated character mode segment; 0…10 m serial link non isolated Modbus segment; 0…1000 m serial link isolated character mode segment; 0…1000 m serial link isolated Modbus segment; 0…15 m character mode point-to-point; 0…15 m Modbus point-to-point

Maximum tap links length

<15 m serial link non isolated character mode segment; <15 m serial link non isolated Modbus segment; <40 m serial link isolated character mode segment; <40 m serial link isolated Modbus segment

Number of addresses

0…248 for character mode; 0…248 for Modbus

Requests

1 K data bytes per request character mode; 252 data bytes per RTU request Modbus; 504 data bytes per ASCII request Modbus

Control parameter

One CRC on each frame (RTU) Modbus; One LRC on each frame (ASCII) character mode; One LRC on each frame (ASCII) Modbus

Memory description

Internal RAM 2048 kB; Internal RAM 128 kB data; Internal RAM 1792 kB program constants and symbols; Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data

Maximum size of object areas

16250 %Mi located internal bits; 32464 %MWi internal words located internal data; 32760 %KWi constant words located internal data

Default size of object areas

128 %KWi constant words located internal data; 256 %Mi located internal bits; 512 %MWi internal words located internal data

Application structure

1 periodic fast task; 32 event tasks; 1 cyclic/periodic master task; No auxiliary task

Execution time per instruction

0.18 µs Boolean; 0.26 µs double-length words; 0.38 µs single-length words; 1.74 µs floating points

Number of instructions per ms

4.2 Kinst/ms 65 % Boolean + 35 % fixed arithmetic; 5.4 Kinst/ms 100 % Boolean

System overhead

0.2 ms for fast task; 1.05 ms for master task

Current consumption

72 mA at 24 V DC

Supply

Internal power supply via rack

Marking

CE; UL; CSA; RCM; EAC; UKCA; China RoHS; WEEE; IEC

Status LED

1 LED (green) processor running (RUN); 1 LED (red) I/O module fault (I/O); 1 LED (red) memory card fault (CARD ERR); 1 LED (red) processor or system fault (ERR); 1 LED (yellow) activity on Modbus (SER COM)

Product weight

0.2 kg

Ambient air temperature for operation

0…60 °C

Relative humidity

5…95 % without condensation

IP degree of protection

IP20

Protective treatment

TC

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility; 2012/19/EU - WEEE directive

Product certifications

CE; UL; CSA; RCM; EAC; UKCA; Merchant Navy; CCSAus HazLoc Class I Division 2 Group A; CCSAus HazLoc Class I Division 2 Group B; CCSAus HazLoc Class I Division 2 Group C; CCSAus HazLoc Class I Division 2 Group D

Standards

IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.500 cm

Package 1 Width

11.000 cm

Package 1 Length

12.000 cm

Package 1 Weight

237.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

15

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

3.900 kg

Country of origin

FR

Warranty (in months)

18

Width

35 mm

Model

Modular

Height

100 mm

Depth

160 mm

Number of digital inputs

512

Number of digital outputs

512

Number of analogue inputs

128

Number of analogue outputs

128

Voltage type (supply voltage)

DC

Type of memory

NVRAM

Memory size

2048 kByte

Processing time (1K, binary operation)

18 ms

Max. number of addressable analogue I/O-ports

128

Max. number of addressable digital I/O-ports

512

Number of HW-interfaces industrial Ethernet

2

Number of HW-interfaces RS-232

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces USB

1

Number of HW-interfaces other

2

Explosion safety category for gas

None

Explosion safety category for dust

None

Performance level according to EN ISO 13849-1

None

Long-Term Evolution (LTE)

No

SIL according to IEC 61508

None

HS Code

8537.10
