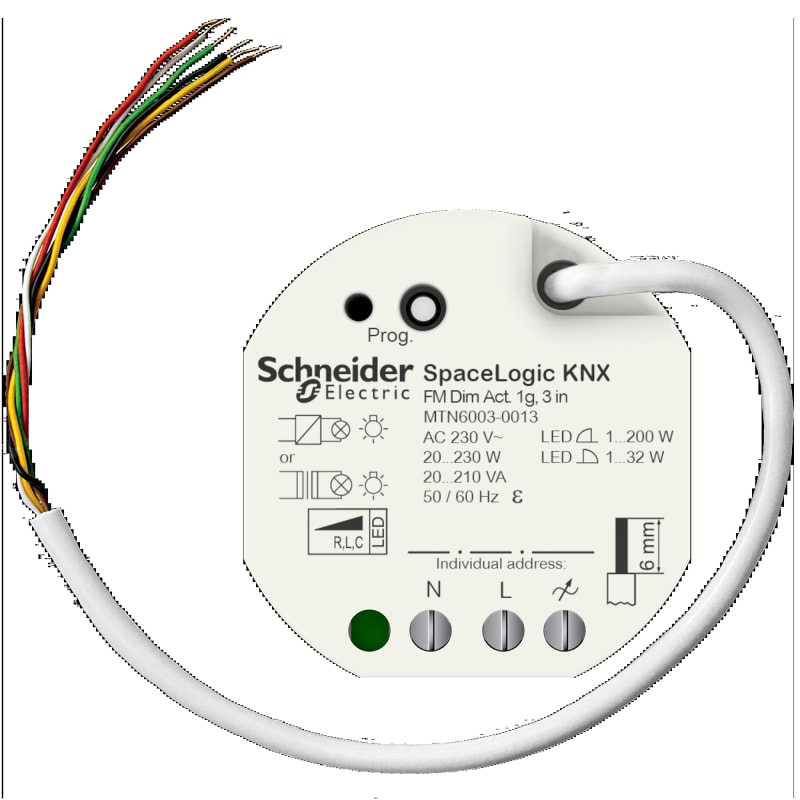

Schneider Electric MTN6003-0013 SpaceLogic KNX Dimmer Actuator, Universal, Flush, 3 Binary Inputs
Pricing
Request a quote
We reply within 24 hours
Product Description
SpaceLogic KNX dimmer actuator, flush-mounted, with three binary inputs and 230 W universal load capability. KNX Secure bus operation at 18 mA supply current; IP20 protection. Supports incandescent, high- and low-voltage halogen and LED loads (1 to 200 W) across phase-cut-off and phase-cut-on modes.
Technical Specifications
- Manufacturer part number (MPN)
- MTN6003-0013
- EAN / GTIN
- 3606482046795
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Range
- SpaceLogic KNX
- Product or component type
- Dimming actuator
- Operating mode
- KNX bus system
- Bus type
- KNX
- Power supply input current
- 18 mA
- Mounting support
- Flush
- [Ue] rated operational voltage
- 230 V
- Network frequency
- 50/60 Hz
- Current consumption
- 5...18 mA for bus
- Input type
- 3 x binary AC
- Number of outputs
- 1
- Load type
- Incandescent lamps: 20...230 W at 230 V 50 Hz AC; High voltage halogen lamp: 20...210 W at 230 V AC; LV halogen lamps: 20...210 W at 230 V AC (inductive transformer); LV halogen lamps: 20...210 W at 230 V AC (capacitive transformer); LED lamp: 1...200 W at 230 V AC (phase cut-off); LED lamp: 1...32 W at 230 V AC (phase cut-on)
- Maximum cable length
- 10 m for input
- Width
- 48 mm
- Height
- 50 mm
- Depth
- 28 mm
- Colour tint
- White
- IP degree of protection
- IP20
- Ambient air temperature for operation
- -5…45 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.500 cm
- Package 1 Width
- 7.600 cm
- Package 1 Length
- 7.600 cm
- Package 1 Weight
- 106.000 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 60
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 6.875 kg
- Warranty (in months)
- 18
- Mounting method
- Flush-mounted
- Model
- Dimming actuator
- Type of load
- Universal
- Max. control current
- 18 mA
- Other bus systems
- None
- Degree of protection (IP)
- IP20
- Constant light output (CLO)
- No
- Min. depth of built-in installation box
- 40 mm
- Max. switching power LED
- 200 W
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606482046795
- SAP 1200571026
- Code 82923418
Product Documentation
