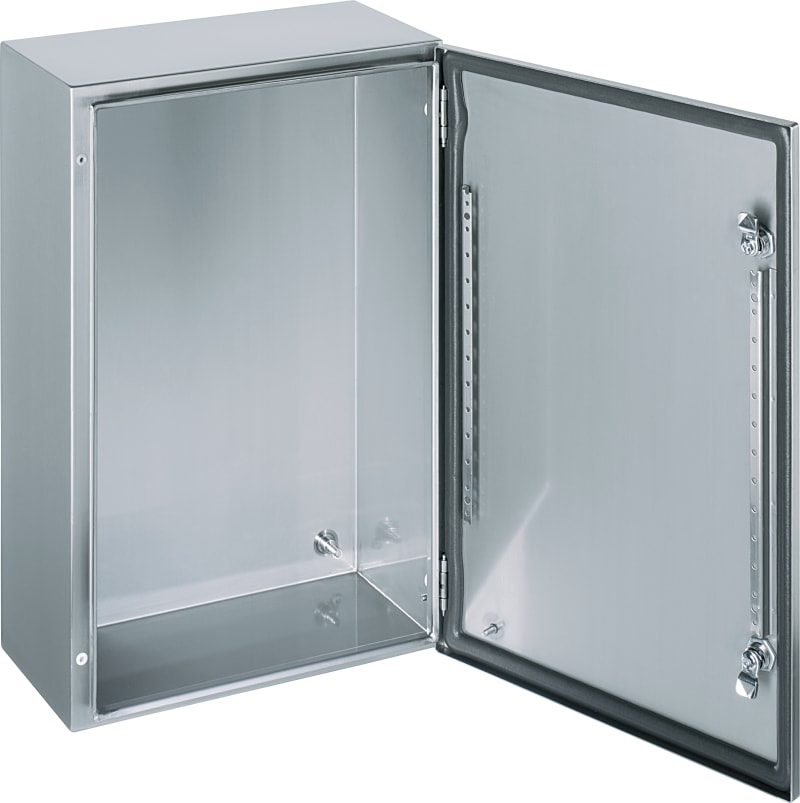

Schneider Electric PanelSet S3X stainless 316L, Scotch Brite® finish, H400XW400XD200 mm. NSYS3X4420H
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3X4420H Cabinet Stainless 316L 4X4X2.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3X4420H
- EAN / GTIN
- 3606480155154
- Sales unit
- pcs
- Range
- Spacial
- Product name
- Spacial S3X
- enclosure type
- Multi-purpose
- category
- Compact enclosure
- nominal height
- 400 mm
- nominal width
- 400 mm
- nominal depth
- 200 mm
- product installation
- Wall-mounting
- Device composition
- 1 body; 1 lock: door; 1 door
- Body type
- Single piece body, cross-shaped structure; Gutter shaped front rail
- Door type
- Plain
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 mm double-bar lock
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Accessibility for operation
- Front
- Removable parts
- Door by hinges
- Material
- Lock: zamak; Hinge: stainless steel; Body and door: stainless steel 316L
- Surface finish
- Body and door: Scotch-Brite® brushed; Lock: chromium plated
- Product weight
- 6.766 kg
- Standards
- IEC 62208; UL; CUL
- Product certifications
- UL 508 type A; CAN/CSA 22
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Environmental characteristic
- Corrosive; Specific hygiene
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 22.000 cm
- Package 1 Width
- 41.500 cm
- Package 1 Length
- 41.500 cm
- Package 1 Weight
- 6.766 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 40
- Package 2 Height
- 180.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 284.000 kg
- Country of origin
- BG
- Warranty (in months)
- 18
- Colour
- Stainless steel
- Width
- 400 mm
- Height
- 400 mm
- Depth
- 200 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of locks
- 1
- Suitable for wall mounting
- Yes
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Material quality
- Stainless steel 316 (V4A)
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 50 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480155154
- SAP 1000089694
- Code 8582045
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Easy UPS 1 Ph On-Line, 6KVA/6KW, Tower, 230V, 1X Hard wire 3-Wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime SRVS6KIL
Schneider Electric
END Ferrule Crimping Tool
AT1PA2
Schneider Electric
Kaedra IP65 3 ROWS/12MOD
13985
Schneider Electric
Warning Lamp with Buzzer 24VDC Red
XVR3B04S
Schneider Electric
Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 IC60, 2P, 25A, C curve, 10000A/15KA, A type, 300MA A9D54225
Schneider Electric
Schneider Electric APC Easy UPS BVX2200LI 2200 VA Tower 230 V 6× C13
Schneider Electric

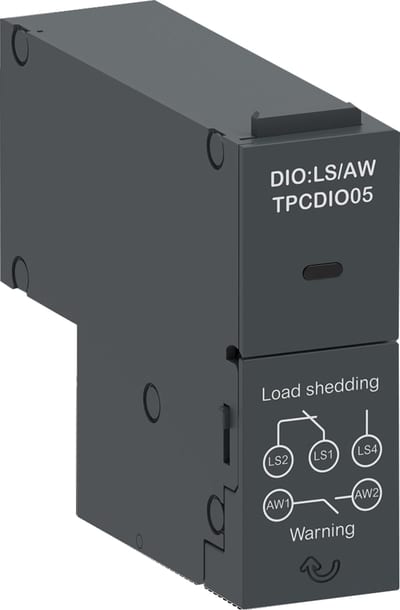

Schneider Electric function module, TransferPacT, Load shedding and Availability warning, output signal TPCDIO05
Schneider Electric

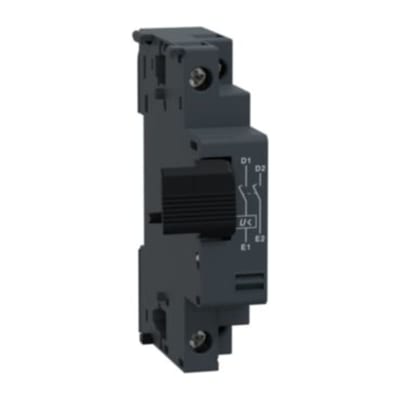

Schneider Electric TeSys GV2 - safety undervoltage trip - 220...240 V AC 50 Hz GVAX225
