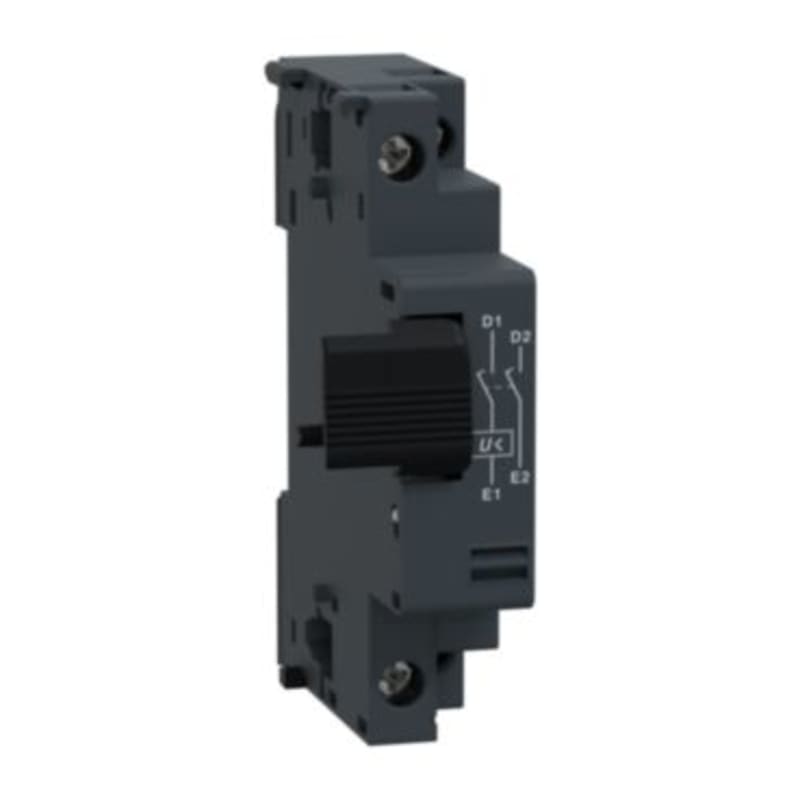

Schneider Electric TeSys GV2 - safety undervoltage trip - 220...240 V AC 50 Hz GVAX225

Schneider Electric GVAX225 Undervoltage release 220V 50HZ GV2.

Manufacturer part number (MPN)

GVAX225

EAN / GTIN

3389110346107

Sales unit

pcs

Package quantity

16 pcs

Voltage

220 V

Frequency

50 Hz

Range

TeSys; TeSys Deca

Product or component type

Safety undervoltage trip

Device short name

GVAX

[Uc] control circuit voltage

220...240 V AC 50 Hz

Range compatibility

TeSys GV2ME; TeSys Deca

Control circuit voltage limits

0.85...1.1 Un

[Ui] rated insulation voltage

690 V AC conforming to IEC 60947-1; 600 V AC conforming to UL 60947-4-1; 600 V AC conforming to CSA C22.2 No 60947-4-1

Threshold tripping voltage

0.7...0.35 Un

Inrush power in VA

12 VA AC

Inrush power in W

8 W

Hold-in power consumption in VA

3.5 VA AC

Hold-in power consumption in W

1.1 W

Operating time

10...15 ms conforming to IEC 60947-1

On-load factor

100 %

Connections - terminals

Screw clamp terminals 1 cable(s) 1…2.5 mm²solid; Screw clamp terminals 2 cable(s) 1…2.5 mm²solid; Screw clamp terminals 1 cable(s) 0.75…2.5 mm²flexible without cable end; Screw clamp terminals 2 cable(s) 0.75…2.5 mm²flexible without cable end; Screw clamp terminals 1 cable(s) 0.75…1.5 mm²flexible with cable end; Screw clamp terminals 2 cable(s) 0.75…1.5 mm²flexible with cable end

Tightening torque

< 1.4 N.m on screw clamp terminals

Mechanical durability

30000 cycles

Quantity per set

Set of 10

Height

89 mm

Width

18 mm

Depth

66 mm

Product weight

0.105 kg

Colour

Dark grey

Country of origin

CZ

Warranty (in months)

18

Delayed

No

Suitable for off-load switch

No

Suitable for overload relay

No

Type of electric connection

Screw connection

Rated control supply voltage AC 50 Hz

220–240 V

Suitable for motor safety switch

Yes

Suitable for power circuit breaker

Yes

Voltage type for actuating

AC

HS Code

8536.30
