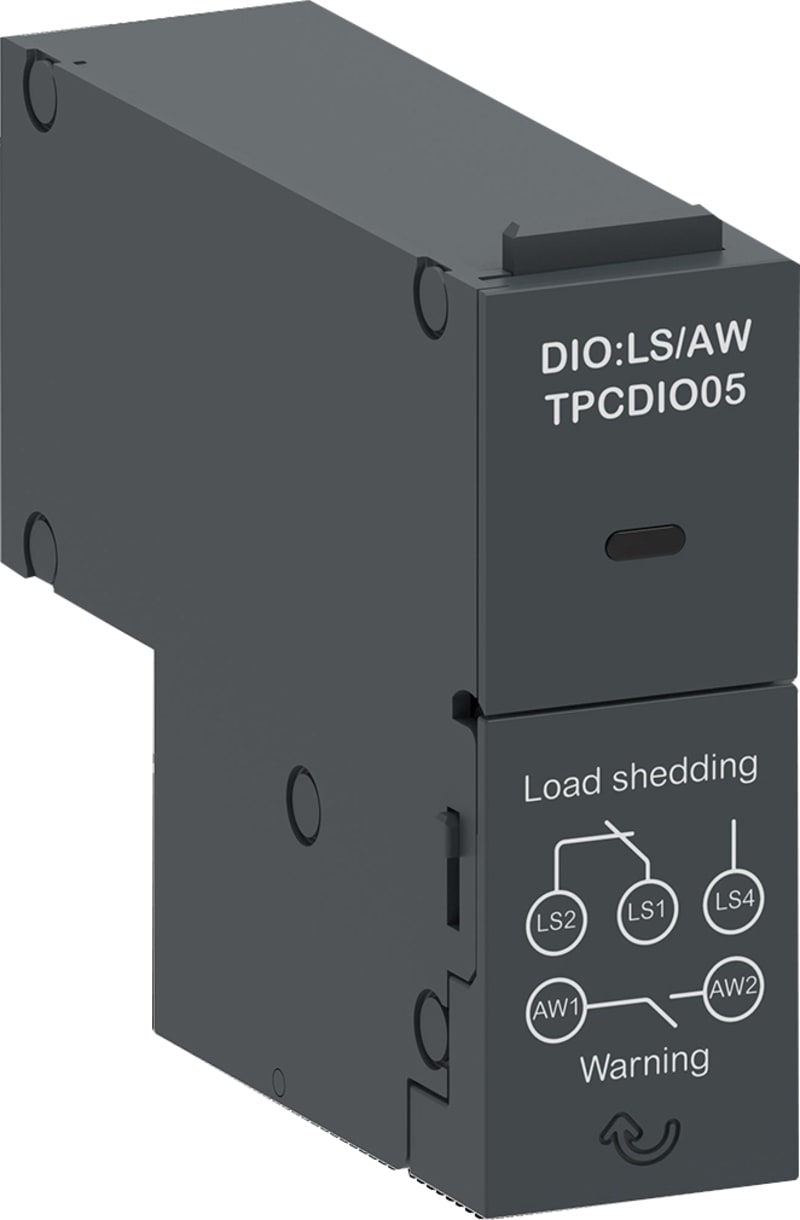

Schneider Electric function module, TransferPacT, Load shedding and Availability warning, output signal TPCDIO05
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric TPCDIO05 function module - TransferPacT - load shedding and alarm on loss of both sources / no-auto output signal.
Technical Specifications
- Manufacturer part number (MPN)
- TPCDIO05
- EAN / GTIN
- 3606481065971
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Range of product
- TransferPacT
- Product or component type
- I/O module
- Device application
- Signalling
- Auxiliary contact composition
- 2 NO + 1 NC
- Signalling function
- Load-shedding indication; Output status
- Auxiliary connection terminal
- Screw clamp terminal 0.05…2.6 mm²
- mounting mode
- Plug-in
- Mounting position
- Left-bottom
- [Ui] rated insulation voltage
- 300 V AC
- Tightening torque
- 0.6 N.m +/- 0.1 N.m
- Height
- 56.5 mm
- Width
- 20 mm
- Depth
- 69 mm
- Product weight
- 40 g
- Accessory / separate part category
- Signalling accessory
- IP degree of protection
- IP20
- Pollution degree
- 3
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.5 cm
- Package 1 Width
- 10.5 cm
- Package 1 Length
- 11 cm
- Package 1 Weight
- 110 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 20
- Package 2 Height
- 15 cm
- Package 2 Width
- 30 cm
- Package 2 Length
- 40 cm
- Package 2 Weight
- 2.38 kg
- Coun
Cross References
- EAN 3606481065971
- SAP 1200586061
- Code 82956281
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric TeSys GV2 - safety undervoltage trip - 220...240 V AC 50 Hz GVAX225
Schneider Electric
Schneider Electric impulse relay iTLc - 1P - 1NO - 16A - coil 230...240 VAC 50/60HZ- A9C33811
Schneider Electric
Schneider Electric compact smart relay Zelio Logic - 20 I O - 24 V AC - clock - display SR2B201B
Schneider Electric
Soft start/stop 12A 200-240V
ATS01N212LU
Schneider Electric
Schneider Electric A9F07401 ACTI9 IC60H Miniature Circuit Breaker 4P 1 A, Curve C
Schneider Electric
Fuse.skillebr. D02 3P 63A
MGN02363
Schneider Electric
Schneider Electric WRB 25 PVC Condensate Trap for ASD Pipe
FFS06432572
Schneider Electric
Schneider Electric APC Smart-UPS, Line Interactive, 1500VA, Rackmount 1U, 230V, 4X IEC C13 outlets, SmartSlot, AVR, LCD SMT1500RMI1U
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy TPCDIO05?
- TPCDIO05 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is TPCDIO05.
- Who manufactures TPCDIO05?
- TPCDIO05 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for TPCDIO05?
- Yes — the TPCDIO05 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for TPCDIO05?
- The minimum order quantity is 1.
- Is TPCDIO05 available?
- Yes — TPCDIO05 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
- How do I get a price for TPCDIO05?
- Request a quotation with the quote button on this page or by email to sales@cballast.com — we reply within 24 hours with price, availability and lead time.
