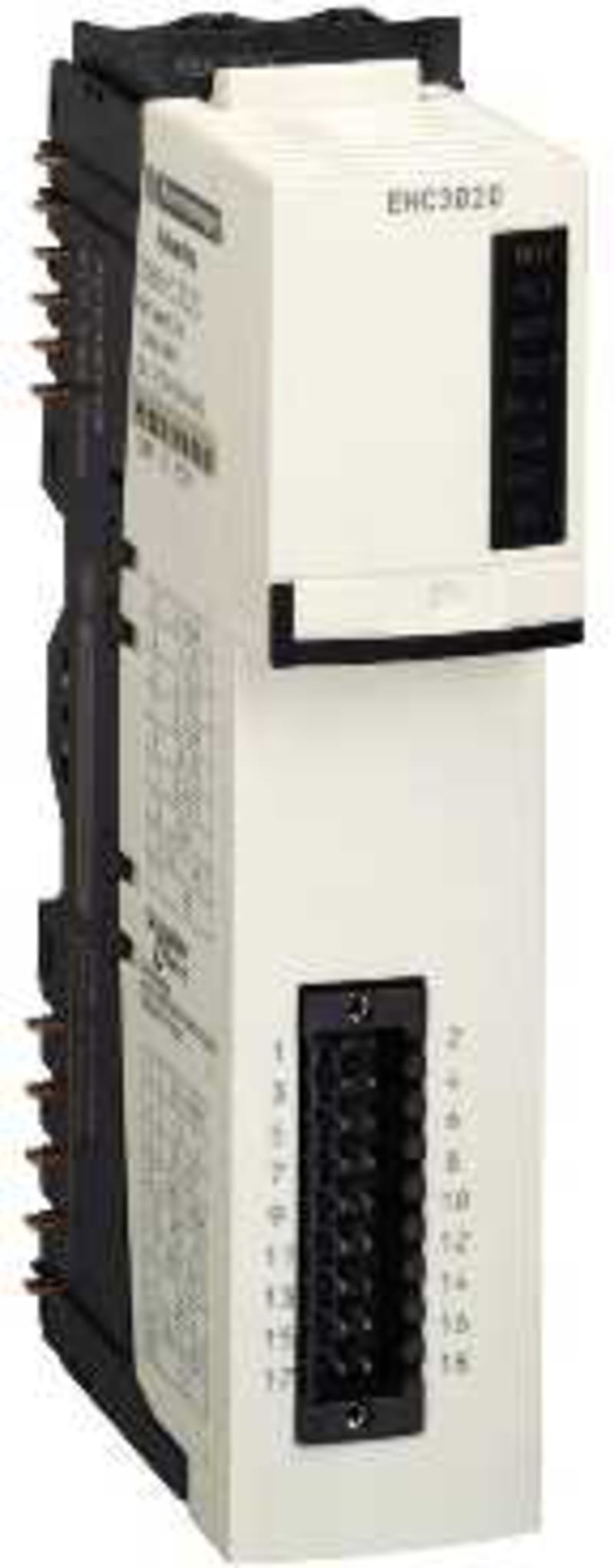

Schneider Electric counter kit STB - 1 CH - 0..40000 Hz - 2 I STBEHC3020KC

Schneider Electric STBEHC3020KC STB kit 1 hurtigteller, 40kHZ.

Manufacturer part number (MPN)

STBEHC3020KC

EAN / GTIN

3595863933116

Sales unit

pcs

Package quantity

30 pcs

Range of product

Modicon STB distributed I/O solution

Product or component type

Counter kit

Number of channels

1

Kit composition

STBEHC3020 module; STBXBA3000 base; STBXTS215018 terminal spring clamp connector

Counting input number

2

Maximum counting frequency

40000 Hz

Counter functions

Measure time periods; Up/down counting; Down counting; Frequency meter; Loop (modulo) counting; Count events

Counter configuration

Modicon configuration software

Input compatibility

2/3 wire photo-electric sensor; Mechanical contact; With 2-wire/3-wire proximity sensors; Incremental encoder

input voltage

24 V

Input voltage limits

19.2...30 V

Input voltage type

DC

Input current

6 mA

Input logic

Positive

Voltage state 0 guaranteed

-3...5 V

Voltage state 1 guaranteed

11...30 V

Current state 0 guaranteed

<= 1.5 mA

Current state 1 guaranteed

>= 2 mA

Filter time

0 ms digital 40000 Hz counting inputs; 0.4 ms digital 1000 Hz counting inputs; 1.2 ms digital 400 Hz counting inputs; 2.5 µs analog counting inputs; 25 µs analog auxiliary input

output voltage

24 V

Output voltage limits

19.2...30 V

Output voltage type

DC

nominal output current

0.5 A

Discrete output logic

Positive or negative configurable

Maximum leakage current

0.1 mA at state 0

Maximum voltage drop

<3 V at state 1

Maximum load inductance

500 mH at 4 Hz

Protection type

Overload protection electronic tripping manual or automatic reset; Short-circuit protection electronic tripping manual or automatic reset; Overload protection current limiter; Short-circuit protection current limiter

Fallback status

Hold last value configured; State 0 for output channels by default; State 0 or 1 for each channel configured

Cold swapping

Yes

Hot swapping fallback

Fallback output depending on parameter setting configured mandatory standard network interface module; Fallback to 0 not configured mandatory standard network interface module; Fallback to 0 basic network interface module

Product compatibility

Mounting base STBXBA3000; Power distribution module STBPDT3100/3105

[Us] rated supply voltage

24 V DC

Supply

Power distribution module

Current consumption

60...100 mA at 5 V DC for logic bus

Insulation between channels and bus

500 V

Marking

CE

Overvoltage category

II

Status LED

1 LED (green) EN validation input status (EN); 1 LED (green) module status (RDY); 1 LED (green) reset input status (RST); 1 LED per counting input (green) counting input status (INA, INB); 1 LED per output (green) output status (OUT1, OUT2); 1 LED (red) module error (FLT)

Height

28.1 mm

Depth

70 mm

Width

128.3 mm

DC supply voltage

24 V

Product certifications

FM Class 1 Division 2; CSA; UL

Pollution degree

2 conforming to IEC 60664-1

Operating altitude

<= 2000 m

IP degree of protection

IP20 conforming to IEC 61131-2 class 1

Ambient air temperature for operation

-25…70 °C (without derating)

Ambient air temperature for storage

-40…85 °C

Relative humidity

95 % at 60 °C without condensation

Vibration resistance

3 gn at 58…150 Hz on 35 x 7.5 mm symmetrical DIN rail; 5 gn at 58…150 Hz on 35 x 15 mm symmetrical DIN rail; +/-0.35 mm at 10…58 Hz

Shock resistance

30 gn for 11 ms conforming to IEC 88 reference 2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.400 cm

Package 1 Width

8.000 cm

Package 1 Length

13.200 cm

Package 1 Weight

163.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

20

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

3.763 kg

Country of origin

ID

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

AC/DC

Number of functions

6

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

No

Suitable for counting

No

Suitable for weighing

No

Suitable for temperature control

No

Suitable for welding control

No

Suitable for pressure control

No

Suitable for NC

No

HS Code

8538.90
