WALL-Mount Cabinet S3D without PL 8X6X4
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3D8640 Wall-mount cabinet S3D Without Pl 8X6X4.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D8640
- EAN / GTIN
- 3606480158919
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 800 mm
- Enclosure nominal width
- 600 mm
- Enclosure nominal depth
- 400 mm
- Door type
- Plain
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 door; 1 lock; 1 cable gland plate
- body type
- Single piece body; Gutter-shaped front rail double sheet thickness
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Steel
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- cUL; UL; BV; DNV; GL
- Product weight
- 28.4 kg
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 44.200 cm
- Package 1 Width
- 62.000 cm
- Package 1 Length
- 81.000 cm
- Package 1 Weight
- 28.400 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 6
- Package 2 Height
- 178.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 183.400 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 600 mm
- Height
- 800 mm
- Depth
- 400 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480158919
- SAP 1000089651
- Code 8914977
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric PanelSet S3DM H600XW400XD150.IP66 IK10 RAL7035. top and bottom. NSYS3DM6415T
Schneider Electric
Bakelitt mounting plate 400X300
NSYMB43
Schneider Electric
Floor-standing cabinet SFN m/m.pl 1600X600X600
NSYSFN16660P
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250HB2, 100KA/690VAC, 3 poles, TMD trip unit 200A C25W3TM200
Schneider Electric

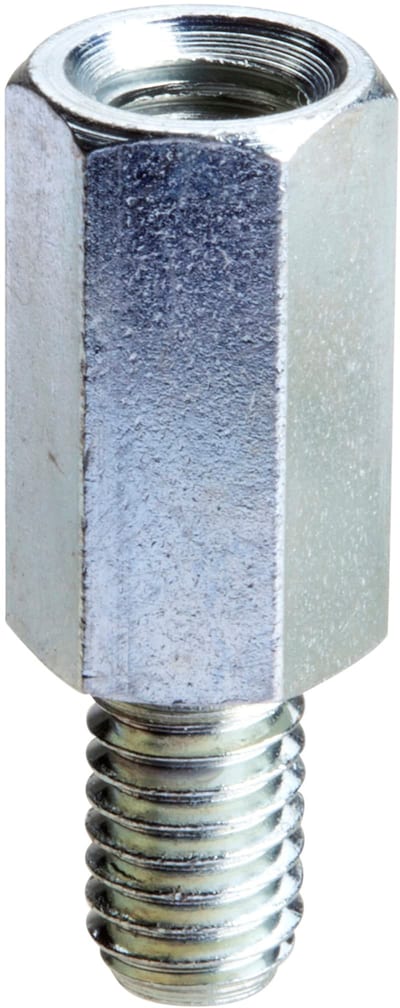

Spacer M8 height 30 (NSYEX308)
Schneider Electric

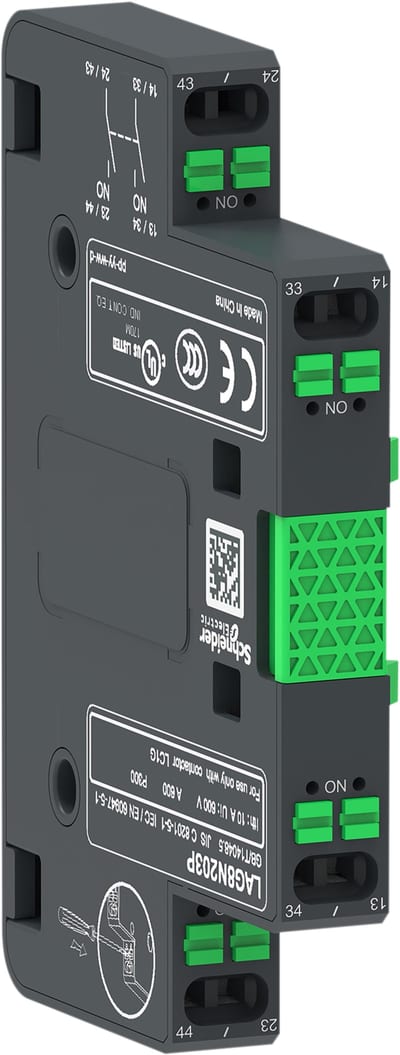

Schneider Electric Auxiliary contact block, TeSys Giga, 2NO, lateral face side mounting, push-in terminals L1/R1 LAG8N203P
