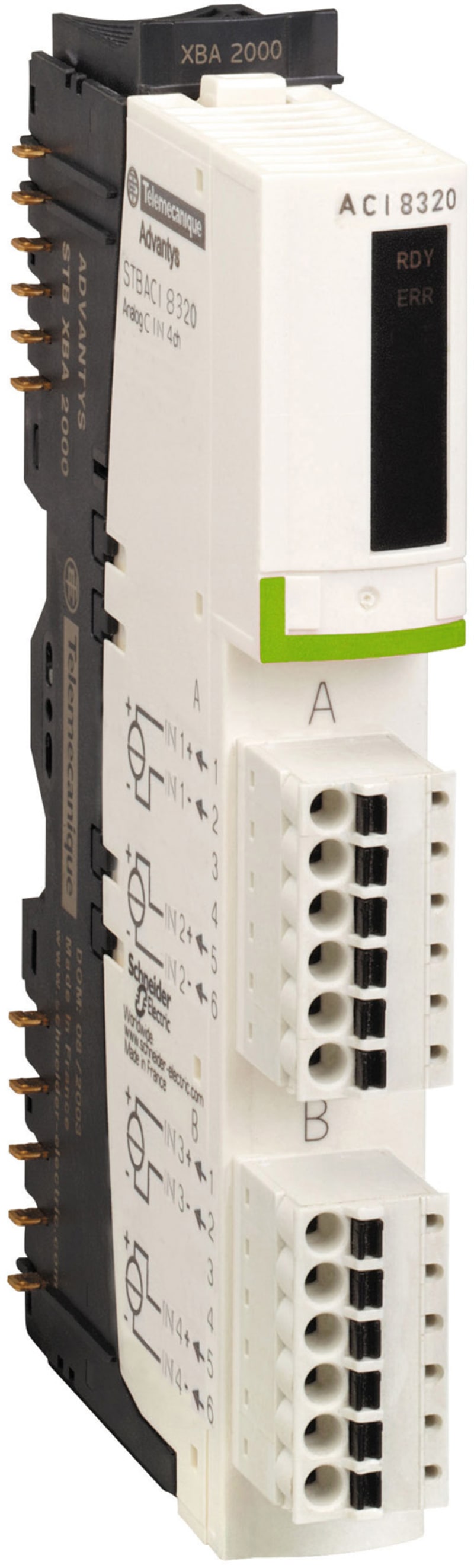

Schneider Electric standard analog input kit STB - 4..20 mA - 4 I - 15 bits + sign STBACI8320K

Schneider Electric STBACI8320K STB kit 4 in analog, 4-20mA, 16bit.

Manufacturer part number (MPN)

STBACI8320K

EAN / GTIN

3595863948745

Sales unit

pcs

Output signal

4–20 mA

Range of product

Modicon STB distributed I/O solution

Product or component type

Standard analog input kit

Kit composition

STBACI8320 module; STBXBA2000 base; STBXTS1100, 6-terminal screw type connector; STBXTS2100, 6-terminal spring clamp connector

Product compatibility

Power distribution module STBPDT3100/3105; Mounting base STBXBA2000

Analogue input number

4

Type of filter

Single low pass input filter 985 Hz

Analogue output number

0

Absolute maximum input

25 mA/50 V

Cold swapping

Yes

Data format

IEC 61131-2; EN 61131-2

Update time

80 ms

Integral linearity

+/- 0.05 %FS

Differential linearity

Monotonic

Maximum supply current for sensors

25 mA per input channels

Absolute accuracy error

+/- 0.4 % of full scale 25 °C

Addressing requirement

8 input words

Supply

Power distribution module

Analogue input type

Current 0...20 mA; Current 4...20 mA

Analogue input resolution

15 bits + sign

Input impedance

250 Ohm

Input protection type

Protected against short-circuit

Temperature drift

+/-0.005 %/°C

Typical current consumption

95 mA at 5 V DC for logic bus

Isolation between channels and bus

1780 Vrms for 1 minute

Hot swapping fallback

Yes for standard NIMs

Local signalling

1 LED green for module status (RDY); 1 LED red for module error (ERR)

Height

18.4 mm

Width

128.3 mm

Depth

70 mm

Overvoltage category

II

IP degree of protection

IP20

Marking

CE

Product certifications

CSA; C-Tick; ATEX Cat 3G; FM Class 1 Division 2; UL

Ambient air temperature for operation

-25…70 °C (without derating)

Ambient air temperature for storage

-40…85 °C without derating

Relative humidity

95 % at 60 °C without condensation

Operating altitude

2000 m

Pollution degree

2

Vibration resistance

+/-0.35 mm (f = 10…58 Hz); 3 gn (f = 58…150 Hz) on 35 mm DIN rail; 5 gn (f = 58…150 Hz) on 35 mm DIN rail

Shock resistance

30 gn for 11 ms conforming to IEC 88 reference 2-27

Number of Units in Package 1

1

Number of Units in Package 2

28

Number of Units in Package 3

448

Country of origin

ID

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

AC/DC

Input, current

Yes

Input, voltage

No

Input, resistor

No

Input, resistance thermometer

No

Input, thermocouple

No

Input signal, configurable

Yes

Resolution of the analogue inputs

15 Bit

Output, current

No

Output, voltage

No

Output signal configurable

No

Resolution of the analogue outputs

15 Bit

Number of analogue inputs

4

Analogue inputs configurable

Yes

Analogue outputs configurable

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

Type of electric connection

Screw connection

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

Yes

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

HS Code

8538.90

• EAN 3595863948745
• SAP 1000046950
• Code 8529725
