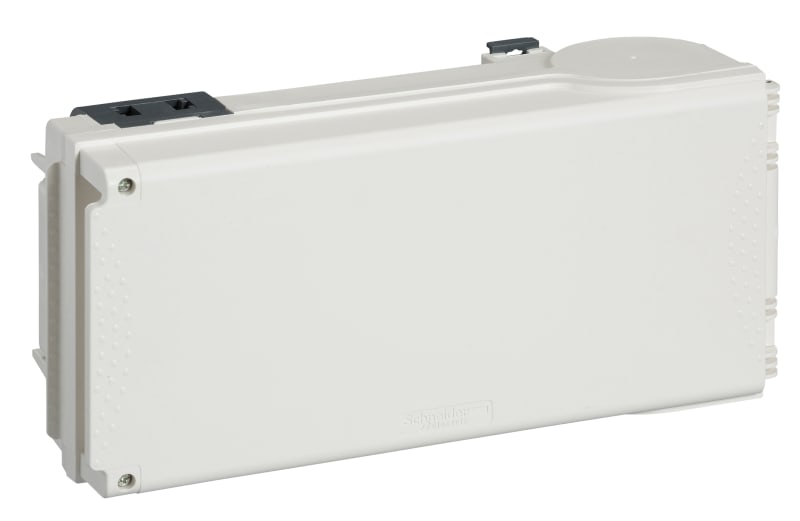

BOX 25A Diazed E27 (KNB25SD4)

Schneider Electric KNB25SD4 Box 25A Diazed E27.

Manufacturer part number (MPN)

KNB25SD4

EAN / GTIN

3606480006180

Sales unit

pcs

Package quantity

52 pcs

Rated current

25 A

Range of product

Canalis

Range compatibility

Canalis KN busbar trunking

Product or component type

Tap-off unit

busbar trunking compatibility

Canalis KN busbar trunkingplug-in

[Ie] rated operational current

25 A at 35 °C

protection type

fuse insulator: Diazed fuse, size E27 conforming to DIN

Provided equipment

fuse to be ordered separately

Mounting mode

Plug-in with fixed polarity

Tap-off unit polarity

3L+PE; 3L+N+PE

Colour

White (RAL 9001)

Device application

Low power distribution

[Ue] rated operational voltage

230...500 V depending on protective device

[Uimp] rated impulse withstand voltage

4.6 kV

[Ui] rated insulation voltage

500 V depending on protective device

Network frequency

50/60 Hz

Electrical connection

Cable clamp terminal - ISO50 16 mm² flexible; Cable clamp terminal - ISO50 16 mm² rigid

door/cover opening side

Right

Tap-off unit disconnection mode

By opening the door

Standards

IEC 61439-1; IEC 61439-6

Width

344 mm

Depth

101 mm

depth (door open)

432.5 mm

Height

165 mm

Product weight

1.5 kg

IP degree of protection

IP55 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Number of Units in Package 1

1

Number of Units in Package 2

52

Warranty (in months)

18

RAL-number

9001

With locking

No

Protection

None

Number of conductors (without earthing)

4

Phase selection

No

Number of poles

4

Length

344 mm

Degree of protection (IP)

IP55

Branch off type

Pipe in-lead

Rated voltage AC 50 Hz

230–500 V

Rated current AC 50 Hz

25 A

Country of origin

Italy

HS Code

8536.90

• EAN 3606480006180
• SAP 1000470803
• Code 8580346
