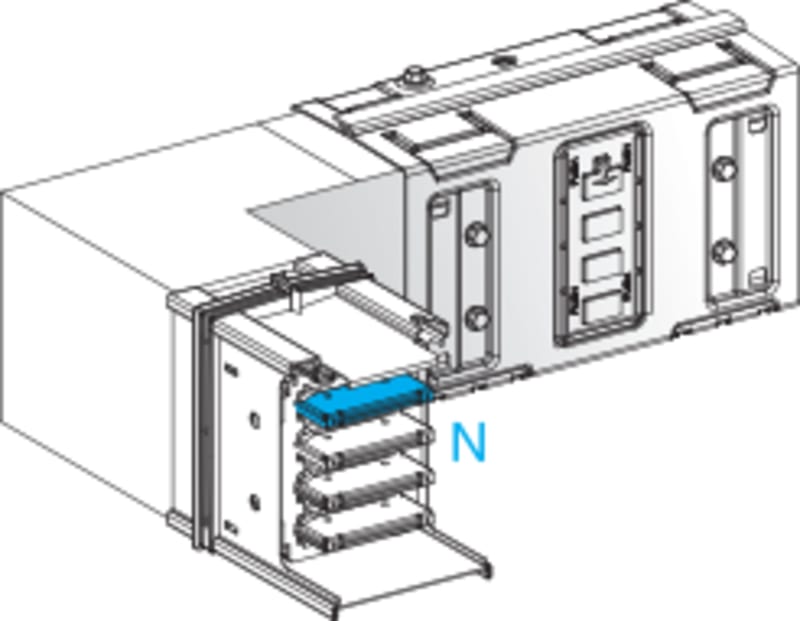

Angle H/V 800-1000A (KSA1000DLC401)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KSA1000DLC401 Canalis KSA 1000A - angle - right-hand/left-hand - 3L+N+PE - standard - white.
Technical Specifications
- Manufacturer part number (MPN)
- KSA1000DLC401
- EAN / GTIN
- 3606489602093
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range of product
- Canalis
- Product name
- KS
- Device short name
- KSA
- Offer type
- Classic
- Product or component type
- Elbow
- Busbar description
- Standard
- Product compatibility
- Canalis KSA busbar trunking 500…1000 A
- Device application
- Change direction
- Conductors material
- Aluminium
- Busbar trunking polarity
- 3L + N + PE
- [Ie] rated operational current
- 1000 A at 35 °C
- IP degree of protection
- IP55 conforming to IEC 60529
- [Ue] rated operational voltage
- 230...690 V
- Network frequency
- 50/60 Hz
- Operating angle
- 90 °
- Direction change type
- direction 1: edgewise to right - ; direction 2: edgewise to left -
- Colour
- White (RAL 9001)
- Dimension type
- Fix
- Length
- 290 mm for side A; 290 mm for side B
- Width
- 113 mm
- Height
- 146 mm
- Product weight
- 15 kg
- Mounting location
- On trunking
- Mounting position
- Any position
- Electrical connection
- Lubricated sliding contact
- mounting mode
- By screws
- Standards
- IEC 61439-1; IEC 61439-6
- IK degree of protection
- IK08 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Elbow box
- Flexible
- No
- Number of poles
- 5
- Number of conductors (without earthing)
- 4
- Rated current AC 50 Hz
- 1000 A
- Rated voltage AC 50 Hz
- 230–690 V
- RAL-number
- 9001
- Degree of protection (IP)
- IP55
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606489602093
- SAP 1200721843
- Code 83845684
