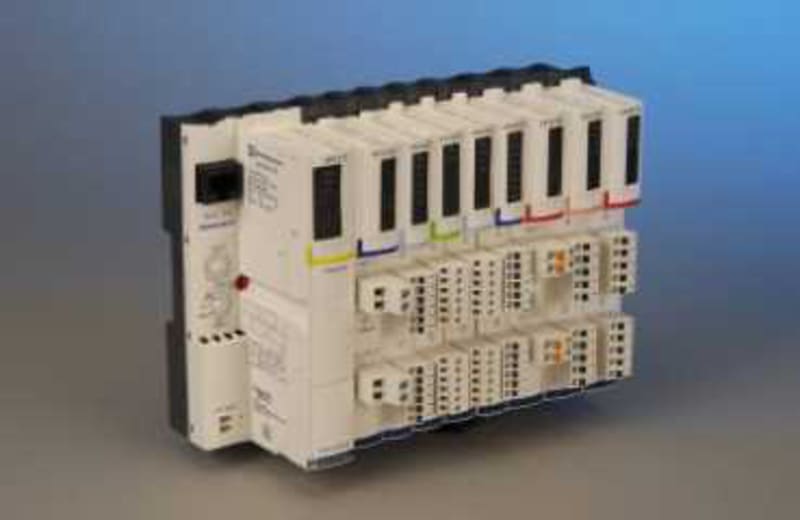

Schneider Electric standard Network Interface Module STB - Ethernet - 10 Mbit/s STBNIP2212

Schneider Electric STBNIP2212 STB Ethernet TCP/IP.

Manufacturer part number (MPN)

STBNIP2212

EAN / GTIN

3595862055116

Sales unit

pcs

Package quantity

250 pcs

Range of product

Modicon STB distributed I/O solution

Product or component type

Standard Network Interface Module

Number of segments

1 primary, maximum 6 extensions

Number of devices per segment

0…256

Number of addressable I/O module

0…32 per island

Input current

430 mA for supply circuit

Nominal output current

0.575 A at 60…70 °C; 1.2 A

Output voltage

5.25 V DC (tolerance: +/- 0.21 %) for logic bus

Electromagnetic compatibility

Immunity to electromagnetic interference conforming to IEC 61131-2

Transmission rate

10 Mbit/s

Communication service

SNMP agent; Modbus TCP/IP messaging; Embedded web (configuration,diagnostics and access to variable); BootP/DHCP protocol

Power supply type

SELV

Local signalling

1 LED green for status; 1 LED green for 10T; 1 LED green for island state (RUN); 1 LED green for power supply (PWR); 1 LED red for module error (ERR); 1 LED yellow for test mode

Height

128.3 mm

Width

40.5 mm

Depth

70 mm

Product weight

0.13 kg

IP degree of protection

IP20

Marking

CE

Product certifications

CSA; UL; FM Class 1 Division 2; ATEX Cat 3G; C-Tick

Ambient air temperature for operation

0…60 °C without derating; -25…70 °C with derating factor

Ambient air temperature for storage

-40…85 °C

Relative humidity

95 % at 60 °C without condensation

Operating altitude

<= 2000 m

Vibration resistance

3 gn (f = 58…150 Hz) on 35 mm DIN rail; 5 gn (f = 58…150 Hz) on 35 mm DIN rail; +/-0.35 mm (f = 10…58 Hz)

Shock resistance

30 gn for 11 ms conforming to IEC 88 reference 2-27

Number of Units in Package 1

1

Number of Units in Package 2

30

Country of origin

FR

Warranty (in months)

18

Number of HW-interfaces industrial Ethernet

1

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

AC/DC

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for SERCOS

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard eGPRS

No

Radio standard GSM

No

Radio standard LTE

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

With potential separation

Yes

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

Yes

Suitable for safety functions

Yes

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

HS Code

8517.62
