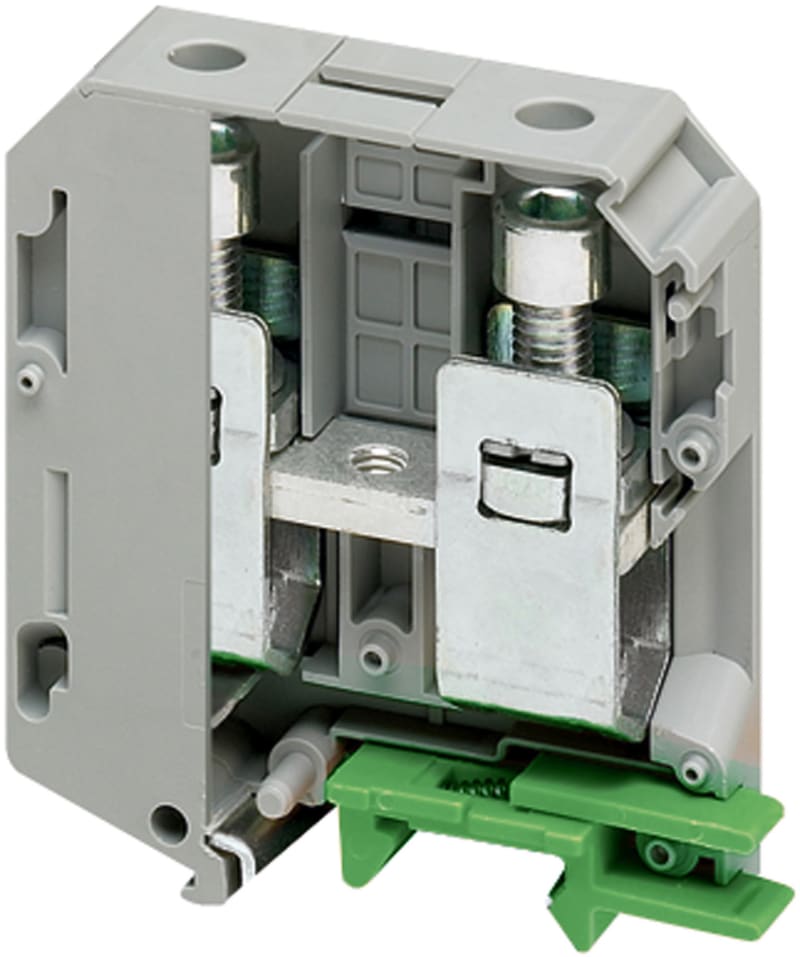

DIN-rail terminal 70mm² grey 2P

Schneider Electric NSYTRV702 DIN-rail terminal 70mm² grey 2p.

Manufacturer part number (MPN)

NSYTRV702

EAN / GTIN

3606480532238

Sales unit

pcs

Package quantity

10 pcs

Conductor cross-section

70 mm²

Range

Linergy

Product name

Linergy TR

Product or component type

Terminal block

Device short name

TRV

Accessory / separate part category

Connection accessory

Terminal block type

Passthrough

Terminal block level

1

mounting mode

Clip-on

Nominal cross section

70 mm²

Length

70.5 mm

Colour

Grey

Quantity per set

Set of 10

Width

20.3 mm

Height

87.5 mm

Connections - terminals

1 x screw terminal: upstream (M8); 1 x screw terminal: downstream (M8)

number of connections

2

Connection position

Sideways

Number of measurement input

1

Cable cross section

25…70 mm², solid cable with cable end; 25…70 mm², solid cable without cable end; 25…70 mm², flexible cable with cable end; 16…95 mm², flexible cable without cable end

Tightening torque

8…10 N.m

Wire stripping length

24 mm

Tool type

Connection: screwdriver; Disconnection: screwdriver

[Ue] rated operational voltage

1000 V conforming to EN/IEC 60947-7-1; 1000 V CSA; 600 V UL

[In] rated current

192 A conforming to EN/IEC 60947-7-1; 192 A CSA; 192 A UL

Material

Polyamide 6/6: insulating case; Copper alloy: connector and screw; Copper alloy: commoning link; Chromium-nickel steel: spring

Dielectric loss

0.01 at 1 MHz conforming to IEC 60250; 0.01 at 1 MHz conforming to VDE 0303-T4

Dielectric constant

3.7 at 1 MHz

Resistivity

10000 MΩ.m conforming to IEC 60093; 10000 MΩ.m conforming to VDE 0303-T30

Surface resistance

1000 GΩ conforming to IEC 60093; 1000 GΩ conforming to VDE 0303-T30

Creep resistance

500 CTI (> 400 kB) conforming to IEC 60093; 500 CTI (> 400 kB) conforming to VDE 0303-T30

Flame retardance

V0, thickness0.8 mm conforming to UL 94

Product weight

195 g

Range compatibility

PrismaSeT G; PrismaSeT P; PrismaSet HD; PrismaSeT Pack 250; PanelSeT; Mureva; PrismaSeT XS; TeSys

Product compatibility

Spacial enclosures

Product certifications

DNV; CSA; UL; VDE; GL

Dielectric strength

1000 V conforming to IEC 60243-1

Ambient air temperature for operation

-40…130 °C conforming to IEC 60216-1; -40…130 °C conforming to VDE 0304-T21

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

480

Country of origin

CN

Warranty (in months)

18

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

16–95 mm²

Connectable conductor cross section multi-wired

25–70 mm²

Rated current In

192 A

Rated voltage

1000 V

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

-40–130 °C

Width/grid dimension

20.3 mm

Depth

70.5 mm

Explosion-tested version 'Ex e'

Yes

Closing plate required

No

Internally connected stages

No

HS Code

8536.90
