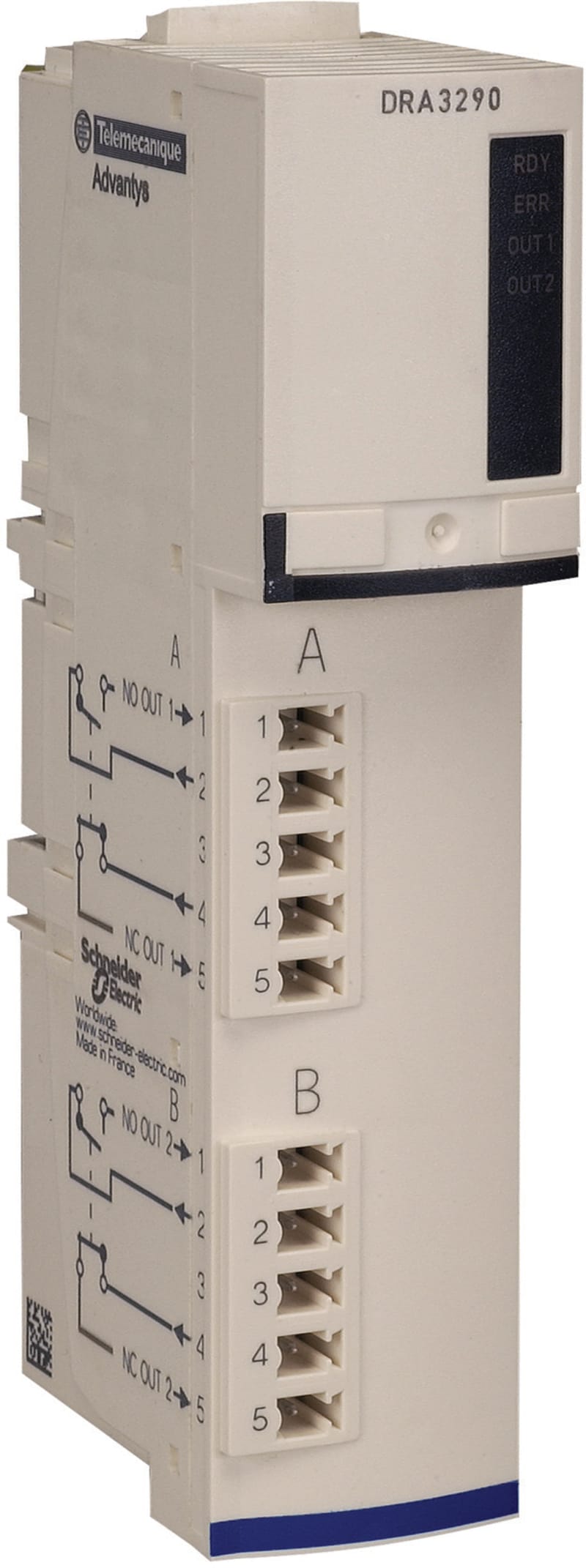

Schneider Electric standard digital output kit STB - 24 V DC - 6 O STBDRA3290K
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric STBDRA3290K STB kit 2 out, 24VDC/230VAC relay.
Technical Specifications
- Manufacturer part number (MPN)
- STBDRA3290K
- EAN / GTIN
- 3595863949131
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 24 V DC
- Range of product
- Modicon STB distributed I/O solution
- Product or component type
- Standard digital output kit
- Kit composition
- STBXTS1100, 5-terminal screw type connector; STBXBA2000 base; STBXTS2110, 5-terminal spring clamp connector; STBDRA3290 module
- Product compatibility
- I/O base STBXBA3000; Power distribution module STBPDT3100/3105
- Range compatibility
- Logic/motion controller - Modicon M262; Modicon M580; Third party
- Device application
- Industrial application
- Discrete output number
- 2
- Discrete output logic
- Positive logic (source)/negative logic (sink)
- Discrete output voltage
- 24 V AC for relay; 115...230 V DC
- Discrete output current
- 7000 mA
- Response time on output
- < 10 ms off to on; < 10 ms on to off
- Typical current consumption
- 55 mA at 5 V DC
- Electrical connection
- Screw terminal
- Height
- 28.1 mm
- Width
- 128.3 mm
- Depth
- 70 mm
- Product weight
- 0.13 kg
- IP degree of protection
- IP20
- Marking
- CE
- Product certifications
- FM Class 1 Division 2; UL; CSA
- Standards
- IEC 61131-2
- Relative humidity
- 95 % at 60 °C without condensation
- Operating altitude
- <= 2000 m
- Pollution degree
- 2
- Shock resistance
- 30 gn for 11 ms conforming to IEC 88 reference 2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Country of origin
- ID
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3595863949131
- SAP 1000027647
- Code 8247350
